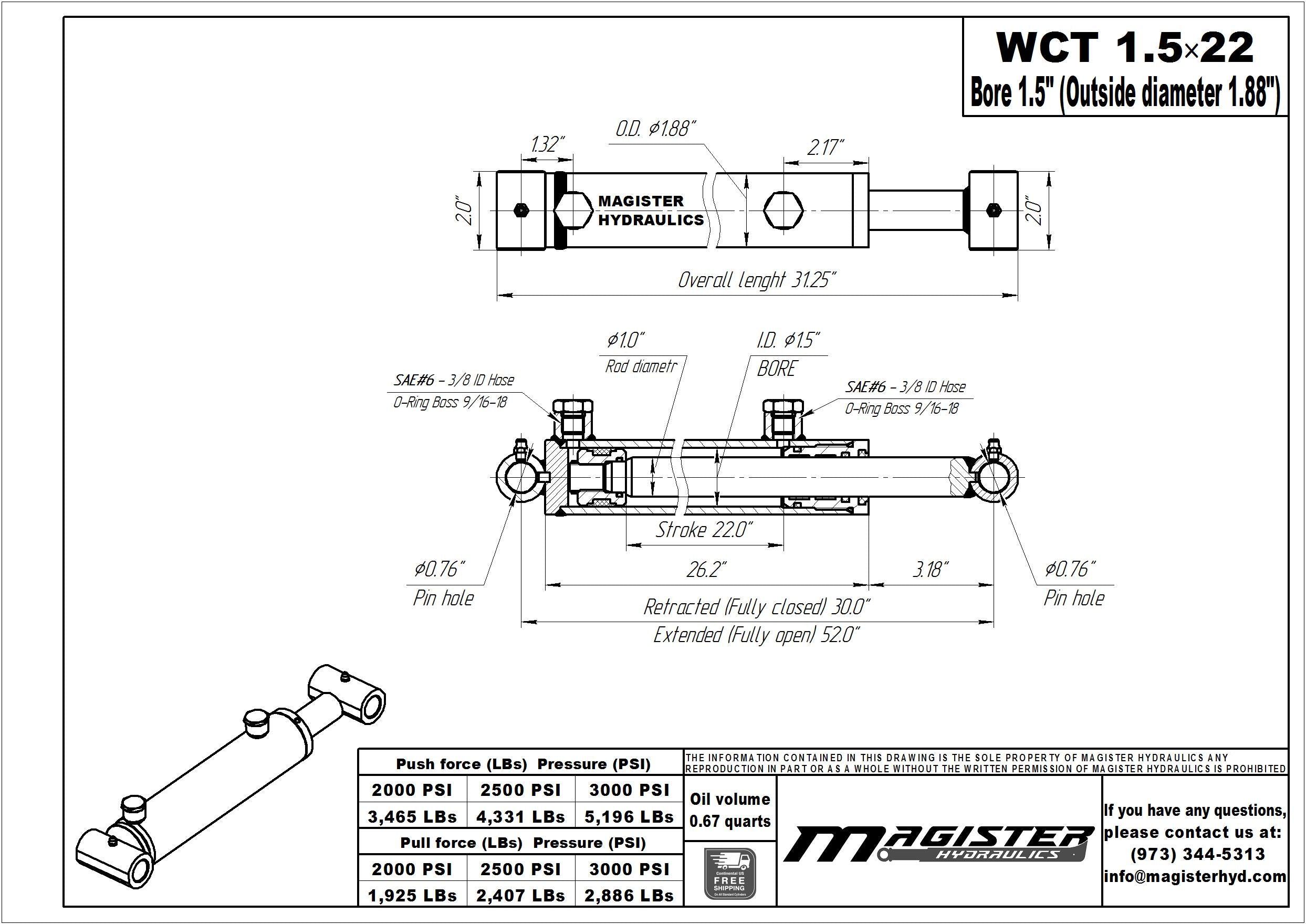

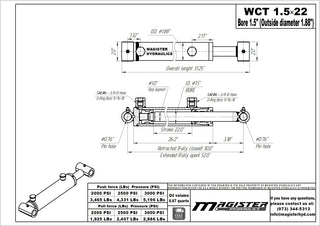

WCT 1.5x22 | 1.5" bore x 22" stroke cross tube hydraulic cylinder

by Magister Hydraulics
SKU: WCT 1.5x22
$219.00
WCT 1.5x22 | 1.5" bore x 22" stroke cross tube hydraulic cylinder - HTX Fluid Power
WCT 1.5x22 | 1.5" bore x 22" stroke cross tube hydraulic cylinder
WCT 1.5x22 | 1.5" bore x 22" stroke cross tube hydraulic cylinder
WCT 1.5x22 | 1.5" bore x 22" stroke cross tube hydraulic cylinder
WCT 1.5x22 | 1.5" bore x 22" stroke cross tube hydraulic cylinder
WCT 1.5x22 | 1.5" bore x 22" stroke cross tube hydraulic cylinder
WCT 1.5x22 | 1.5" bore x 22" stroke cross tube hydraulic cylinder - HTX Fluid Power
Fast shipping

Fast shipping to the continguous 48 states.

Easy returns

We offer a 30-day peace of mind returns.

Need help?

Need help? 24/7 Dedicated support.

WCT 1.5x22 | 1.5" bore x 22" stroke cross tube hydraulic cylinder

by Magister Hydraulics
SKU: WCT 1.5x22
$219.00

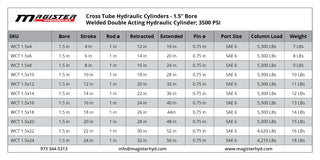

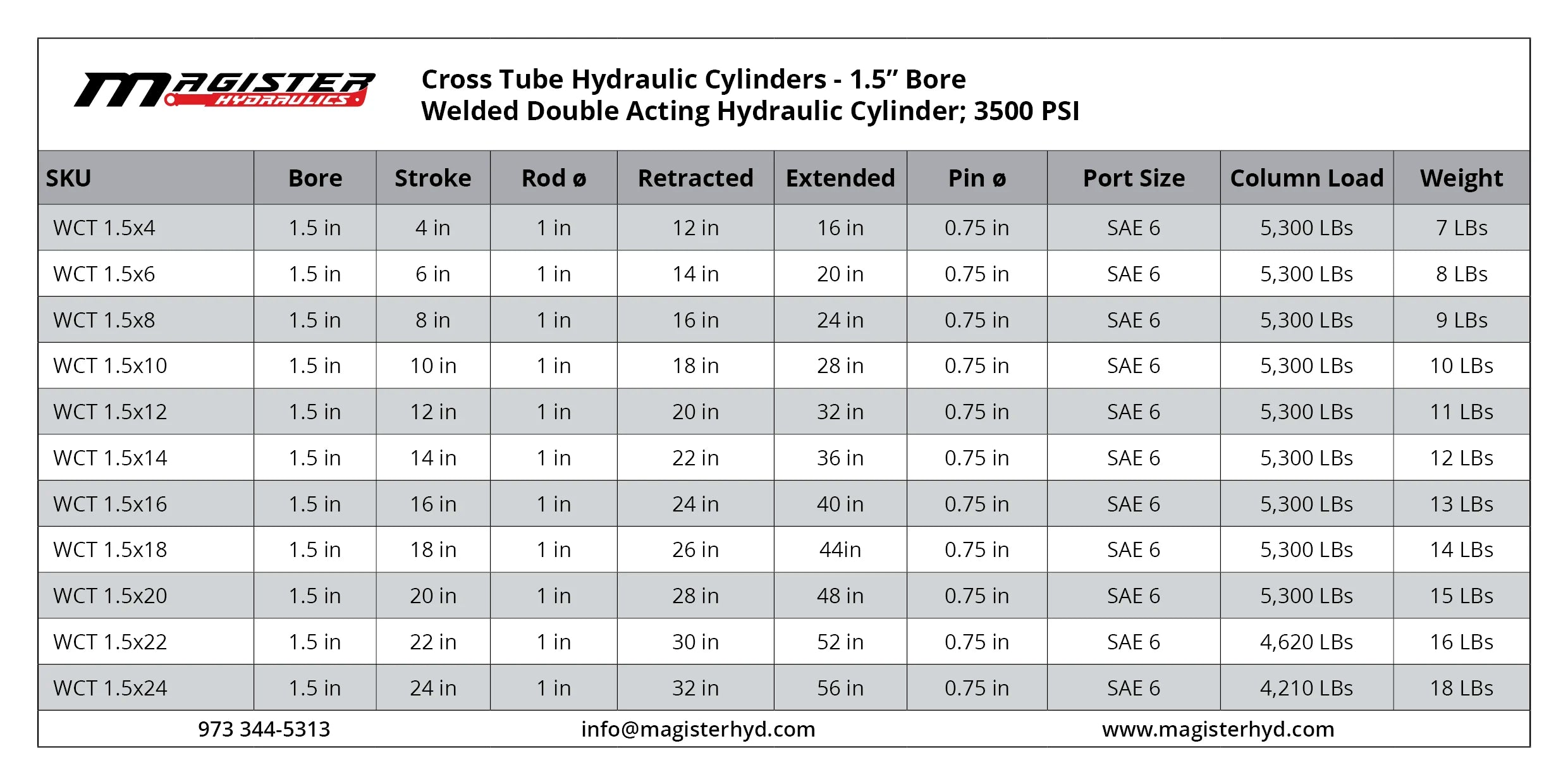

SPECIFICATIONS
Bore 1.5 in
Stroke 22 in
Port Size SAE 6

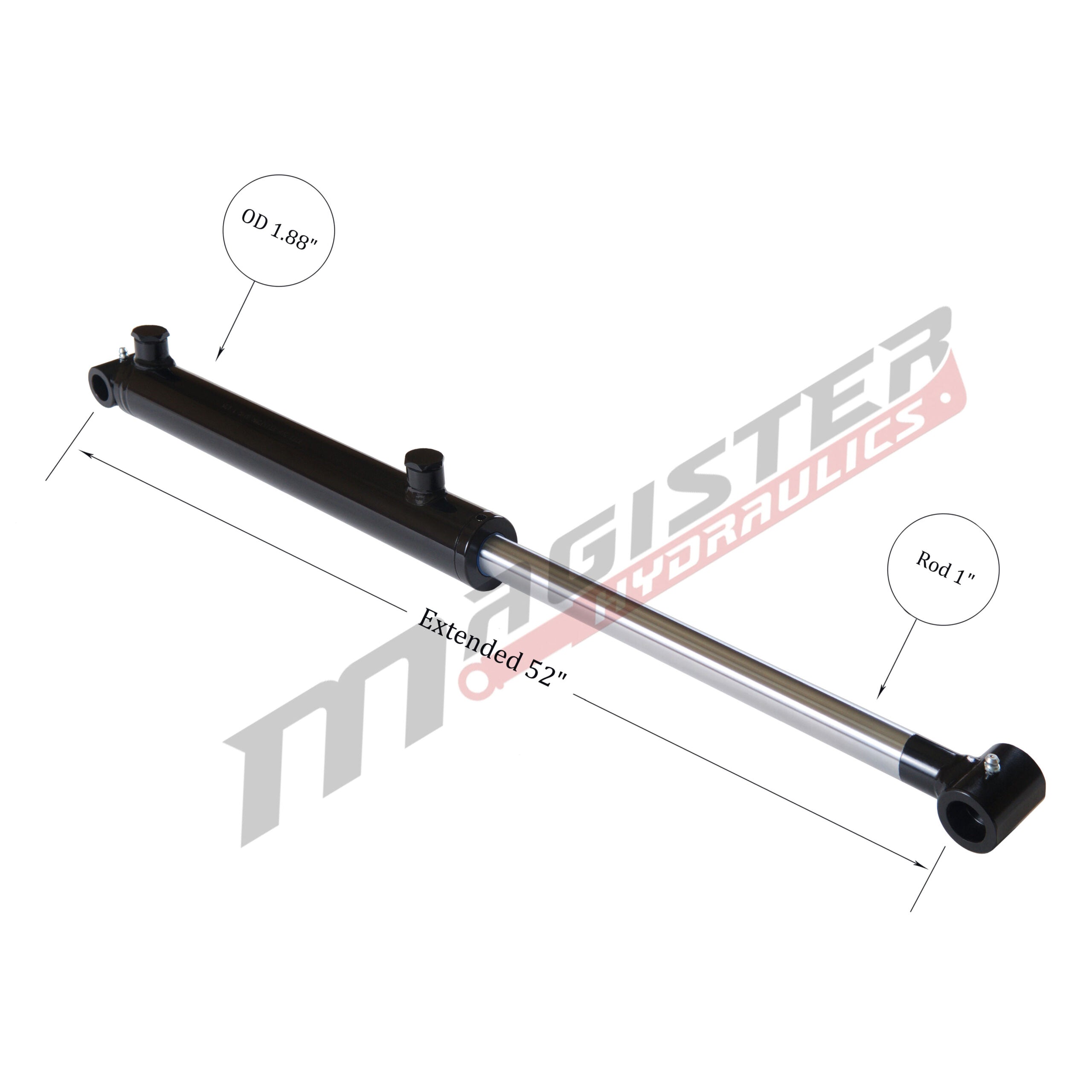

Extended 52 in

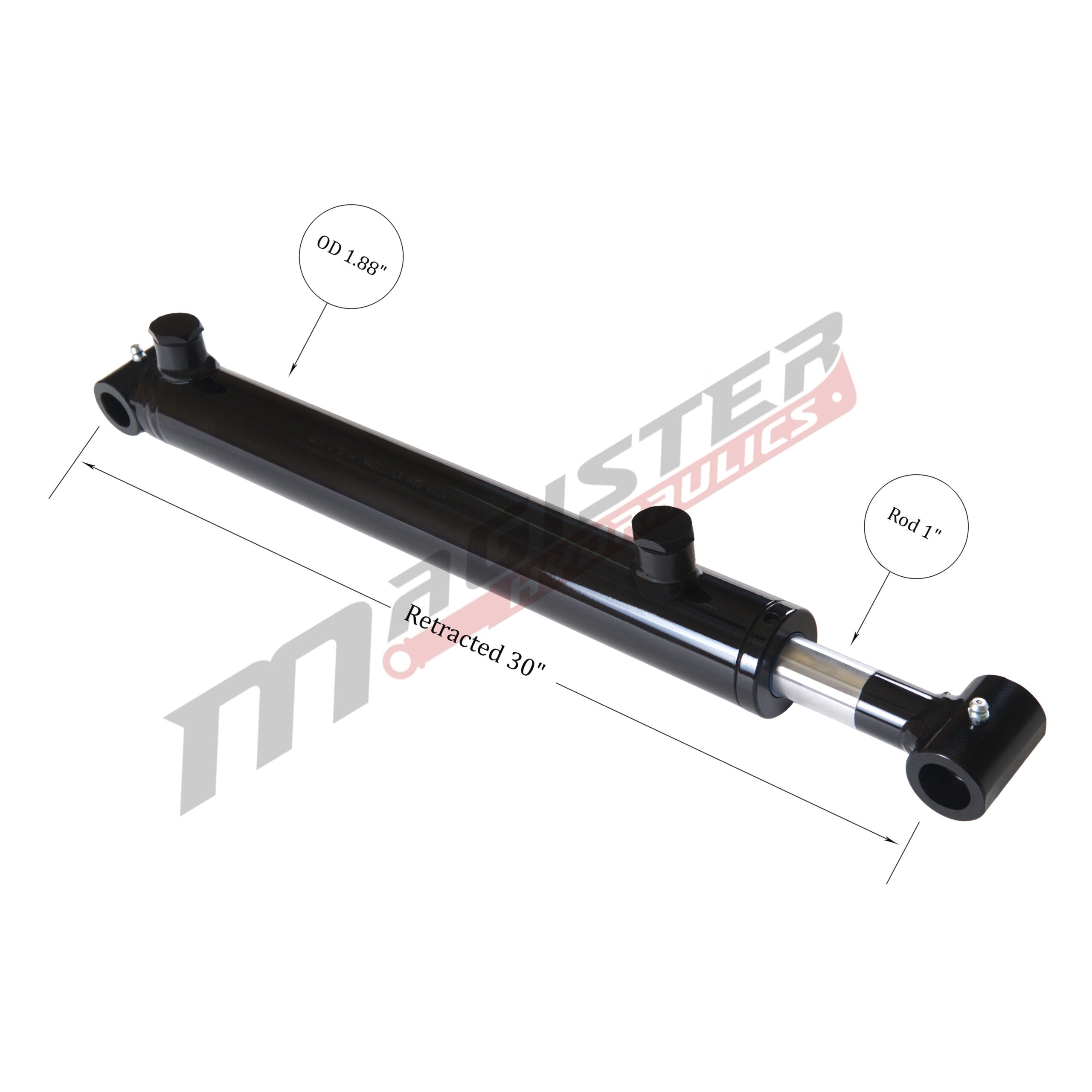

Retracted 30 in
Overall length 31.25 in
Pressure 3500 PSI
Column Load 4,620 LBs
Oil Volume 0.67 QTs

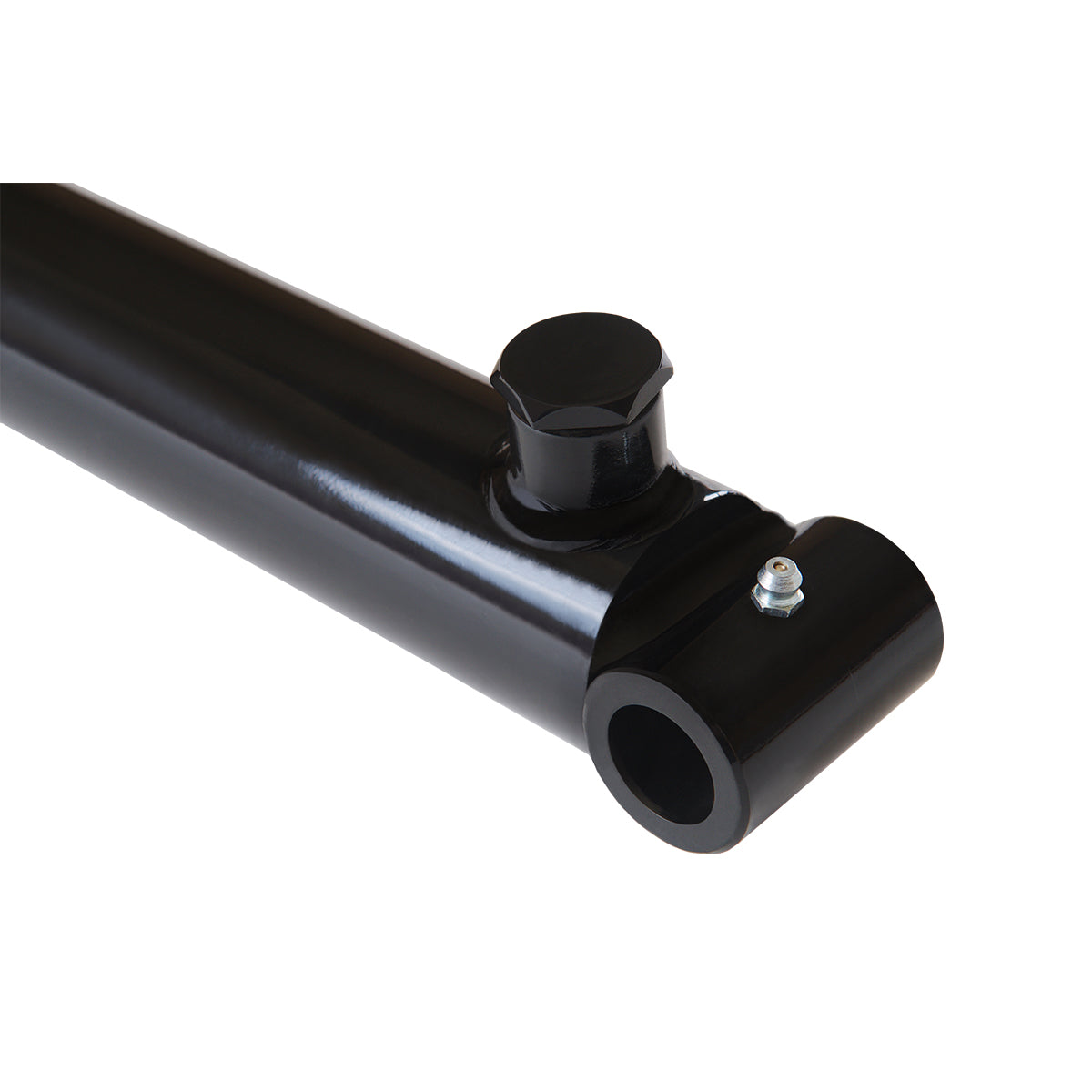

Design Welded
Rod Type Chrome Plated

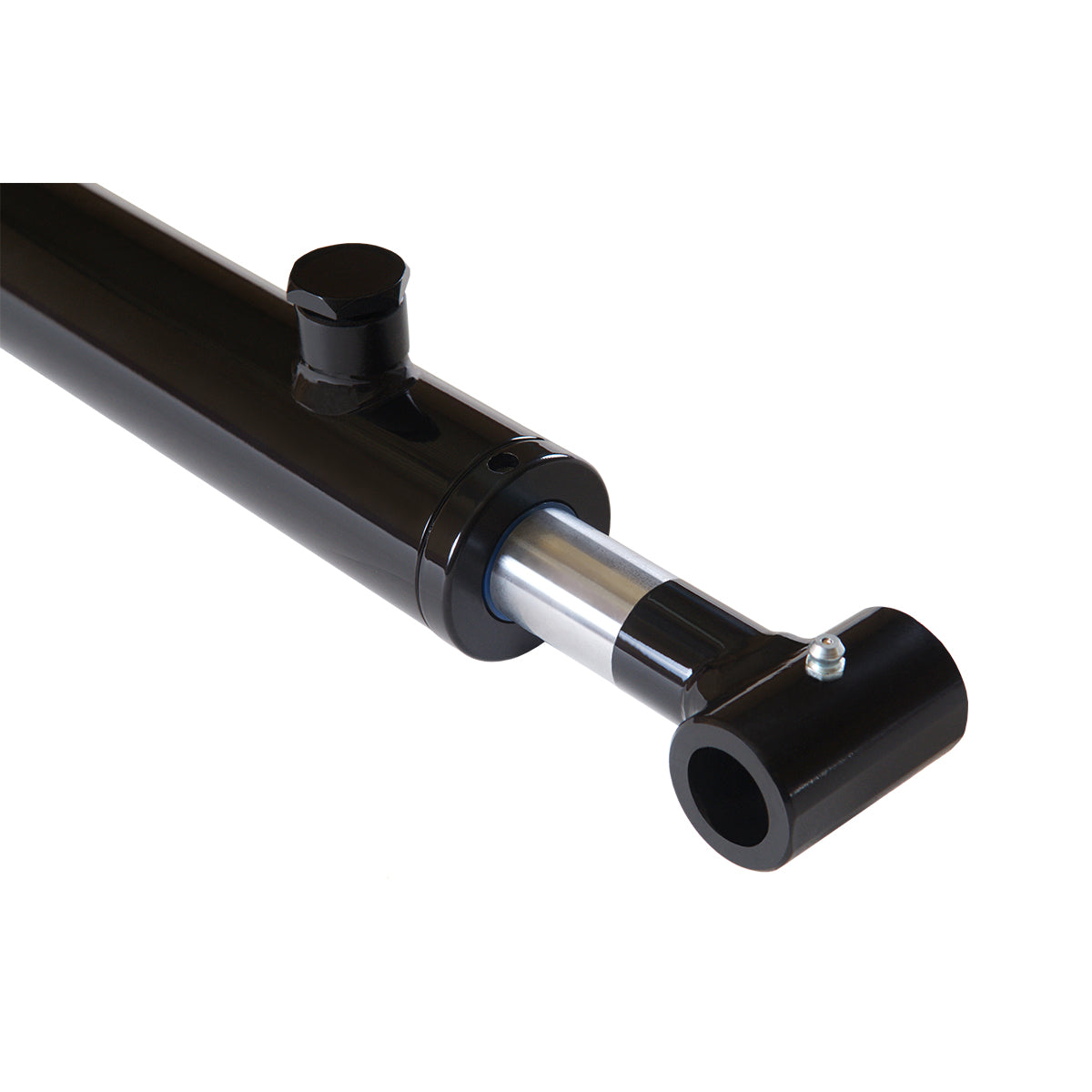

Rod End Cross Tube
Action Double Acting
Weight 16 LBs
Brand Magister Hydraulics
GTIN 857743006772
Outer Diameter 1.88 in
Rod Diameter 1 in
Pin Diameter 0.75 in
