Collection: Tie Rod Hydraulic Cylinders

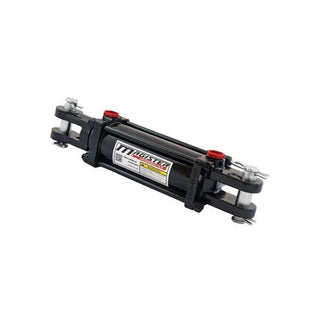

Magister threaded double-acting tie rod hydraulic cylinders offer a heavy-duty design capable of withstanding operating pressure up to 2500 PSI. High tensile honed cold drawn tube for durability. High tensile ground and polished hard chrome plated rod. Ductile iron clevis end mount with screw-on ductile iron clevis mount. Rod seals are composed of high quality U-cup polyurethane with an inner O-ring and polyurethane wiper.

Tie rod cylinders have been a go to for most agricultural applications for over 50 years. The hydraulic cylinder is used to transform the hydraulic fluid energy into mechanical output energy for the component. Excellent for use in a wide range of industries such as agriculture, automotive and transportation, and manufacturing.



Tie-Rod Hydraulic Cylinders in Stock:

  • Bore Diameters: 2”-5”
  • Rod Diameters: 1.25″/1.5”/1.75”/1.063″/2”
  • Stroke Size: 2”-72” with increments of 2”
  • Port Size: 1/2″ NPT, 3/8″ NPT, SAE 8
  • Pin:1″
  • Oil Volume: 0.11- 16.31
  • OD: 2.37”-6”
  • Column Lead: 5,500- 17,670


Custom Tie-Rod Hydraulic Cylinders

Magister Hydraulics is a leading manufacturer of custom Tie-Rod hydraulic cylinders for a wide range of applications. We offer a wide range of options to meet the specific needs of our customers, including tubing, rod plating, seals, mounting ends, pressure ratings, color options, packaging, and labeling. We have a minimum order quantity of 50 SKUs for custom cylinders.

Benefits:

  • 2-year warranty
  • Free US Shipping
  • Volume discount for bulk orders.
  • European Quality
  • Customer Support
  • ISO 9001:2015 standards


Selecting a Tie-Rod Hydraulic Cylinder

When considering the purchase of a Tie-Rod hydraulic cylinder, it is important to evaluate key specifications such as –

  • Bore Diameter
  • Rod Diameter
  • Pin Hole Diameter
  • Single or Double Acting
  • Materials and Coatings
  • Application


By reviewing these factors, you can confidently select a hydraulic cylinder that is compatible with your equipment and performance requirements.
