Collection: Pin Eye Hydraulic Cylinders

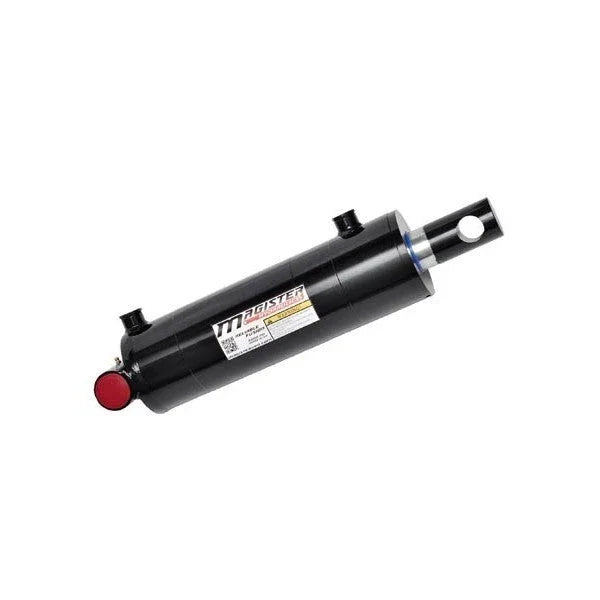

The pin eye double-acting hydraulic cylinder comes with a heavy-duty rod with a through-hole for pin attachment. On the welded side of the cylinder, the cross tube is welded at a 90-degree angle for stability while operating. It is manufactured using premium quality steel for the piston and threaded gland, while tubes are welded across to provide lifelong durability.

Top quality 5-component seals for medium duty cycle usage that can withstand tens of thousands of cycles You can customize it easily to meet your specific application requirements. It is perfect for multiple applications in construction, farming, transportation, and material handling, as well as other industries such as trailers, front end loaders, OEM manufacturing, metal fabrication, and material recycling equipment. At Magister Hydraulics, we have a range of pin-eye hydraulic cylinders with different variations.

Pin Eye Hydraulic Cylinders in Stock

Bore Diameters: 2”-4”
Rod Diameters: 1.25”/1.5”/1.75″/2”
Stroke Size: 8”- 36” with increments of 2”
Port Size: SAE 8
Pin: 0.75”
Oil Volume: 0.43 -7.83
OD: 2.37″- 4.5”
Column Lead: 4,100- 37,700

Custom Pin Eye Hydraulic Cylinders

Magister Hydraulics manufactures custom pin eye hydraulic cylinders that are designed to perform in the most demanding environments. We offer a wide range of options to meet the specific needs of our customers, including tubing, rod plating, seals, mounting ends, pressure ratings, color options, packaging, and labeling. A minimum order quantity of 50 SKUs applies.

Benefits:
