WSP 1.5x12FIS | 1.5" bore x 12" stroke snow plow Fisher hydraulic cylinder

by Magister Hydraulics
SKU: WSP 1.5x12FIS
$152.00
WSP 1.5x12FIS | 1.5" bore x 12" stroke snow plow Fisher hydraulic cylinder - HTX Fluid Power
WSP 1.5x12FIS | 1.5" bore x 12" stroke snow plow Fisher hydraulic cylinder
WSP 1.5x12FIS | 1.5" bore x 12" stroke snow plow Fisher hydraulic cylinder
WSP 1.5x12FIS | 1.5" bore x 12" stroke snow plow Fisher hydraulic cylinder
WSP 1.5x12FIS | 1.5" bore x 12" stroke snow plow Fisher hydraulic cylinder
WSP 1.5x12FIS | 1.5" bore x 12" stroke snow plow Fisher hydraulic cylinder - HTX Fluid Power
Fast shipping

Fast shipping to the continguous 48 states.

Easy returns

We offer a 30-day peace of mind returns.

Need help?

Need help? 24/7 Dedicated support.

WSP 1.5x12FIS | 1.5" bore x 12" stroke snow plow Fisher hydraulic cylinder

by Magister Hydraulics
SKU: WSP 1.5x12FIS
$152.00

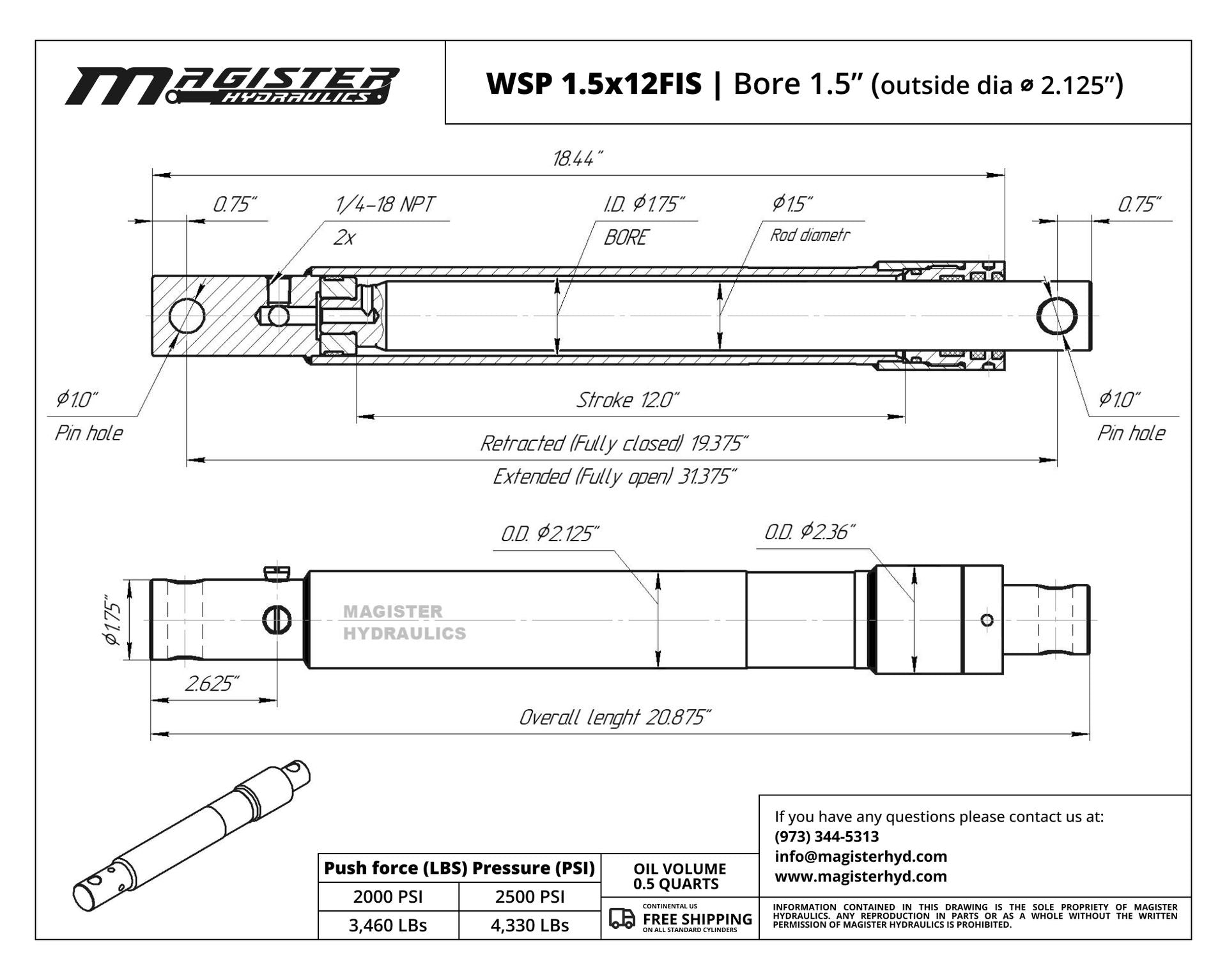

SPECIFICATIONS
Bore 1.5 in
Outer Diameter 2.125 in
Stroke 12 in
Rod Diameter 1.5 in
Port Size 1/4 - 18" NPT
Pin Diameter 1 in
Extended 31.38 in

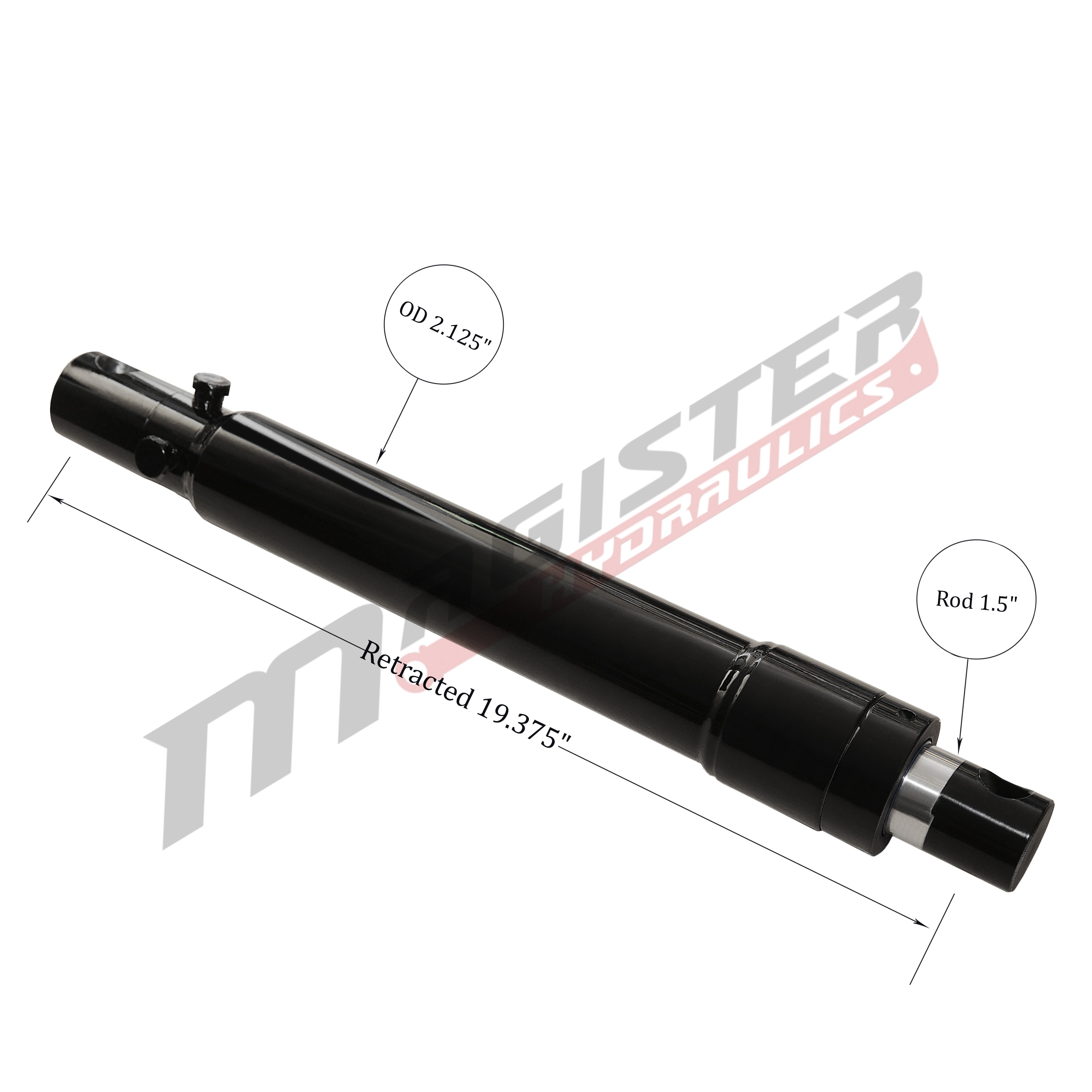

Retracted 19.38 in
Overall length 20.875 in
Pressure 2500 PSI
Push Force 4,330 LBs
Oil Volume 0.5 QTs
Brand Magister Hydraulics
Design Welded
Rod Type Chrome Plated
Rod End Pin Hole
Action Single Acting
Weight 17 LBs
Capacity Through-hole for pin attachment base end, ? 2.125? honed cold-drawn tubing, ? 1.5? chrome-plated rod (steel 1045) with drilled pinhole end.
Operation Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
