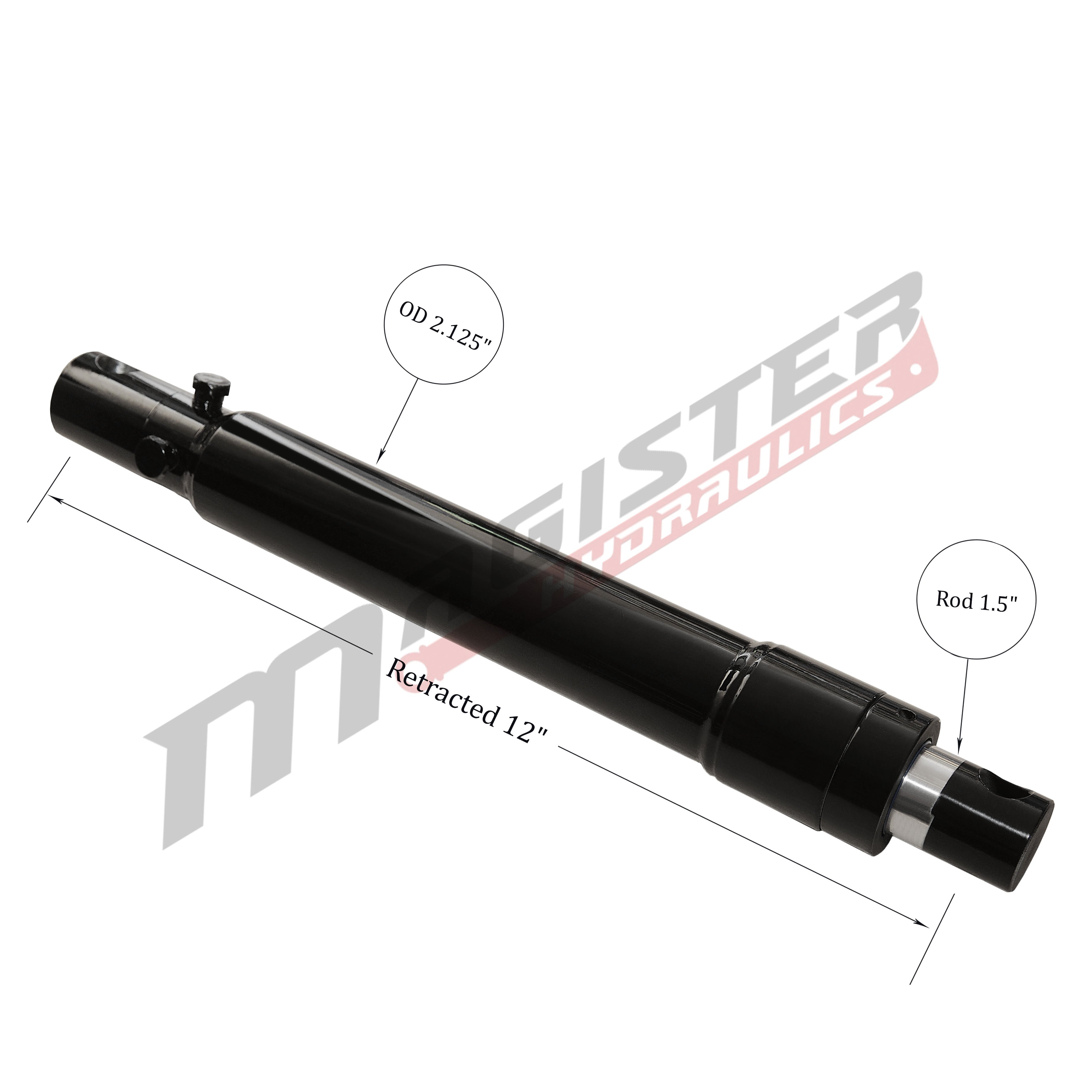

WSP 1.5x6MYE | 1.5" bore x 6" stroke snow plow Meyers hydraulic cylinder

by Magister Hydraulics
SKU: WSP 1.5x6MYE
$135.00
WSP 1.5x6MYE | 1.5" bore x 6" stroke snow plow Meyers hydraulic cylinder - HTX Fluid Power
WSP 1.5x6MYE | 1.5" bore x 6" stroke snow plow Meyers hydraulic cylinder
WSP 1.5x6MYE | 1.5" bore x 6" stroke snow plow Meyers hydraulic cylinder
WSP 1.5x6MYE | 1.5" bore x 6" stroke snow plow Meyers hydraulic cylinder
WSP 1.5x6MYE | 1.5" bore x 6" stroke snow plow Meyers hydraulic cylinder
WSP 1.5x6MYE | 1.5" bore x 6" stroke snow plow Meyers hydraulic cylinder - HTX Fluid Power
Fast shipping

Fast shipping to the continguous 48 states.

Easy returns

We offer a 30-day peace of mind returns.

Need help?

Need help? 24/7 Dedicated support.

WSP 1.5x6MYE | 1.5" bore x 6" stroke snow plow Meyers hydraulic cylinder

by Magister Hydraulics
SKU: WSP 1.5x6MYE
$135.00

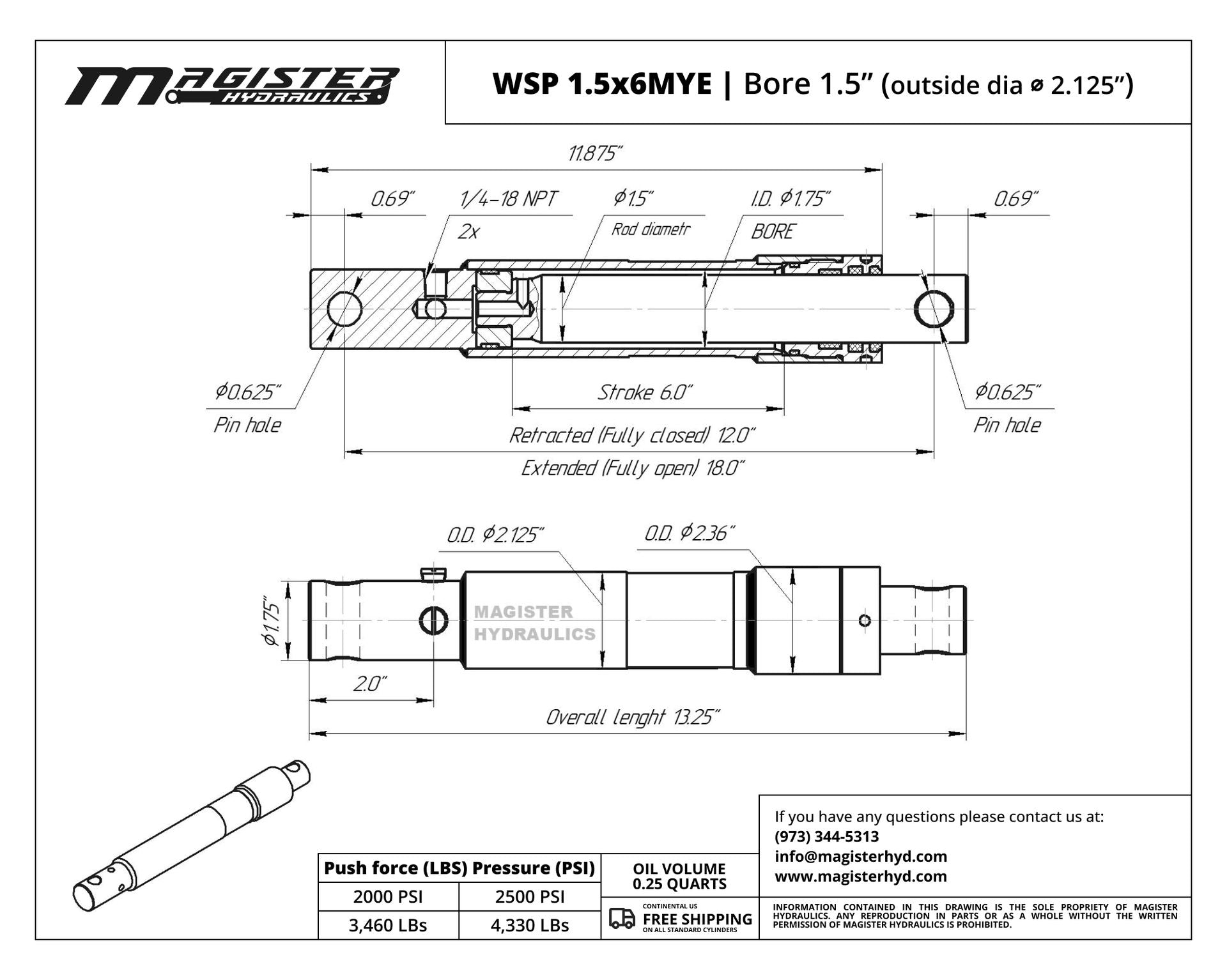

SPECIFICATIONS
Bore 1.5 in
Outer Diameter 2.125 in
Stroke 6 in
Rod Diameter 1.5 in
Port Size 1/4 - 18" NPT
Pin Diameter 5/8 in
Extended 18 in
Retracted 12 in
Overall length 13.25 in
Pressure 2500 PSI
Push Force 4,330 LBs
Oil Volume 0.25 QTs
Brand Magister Hydraulics
Design Welded
Rod Type Chrome Plated

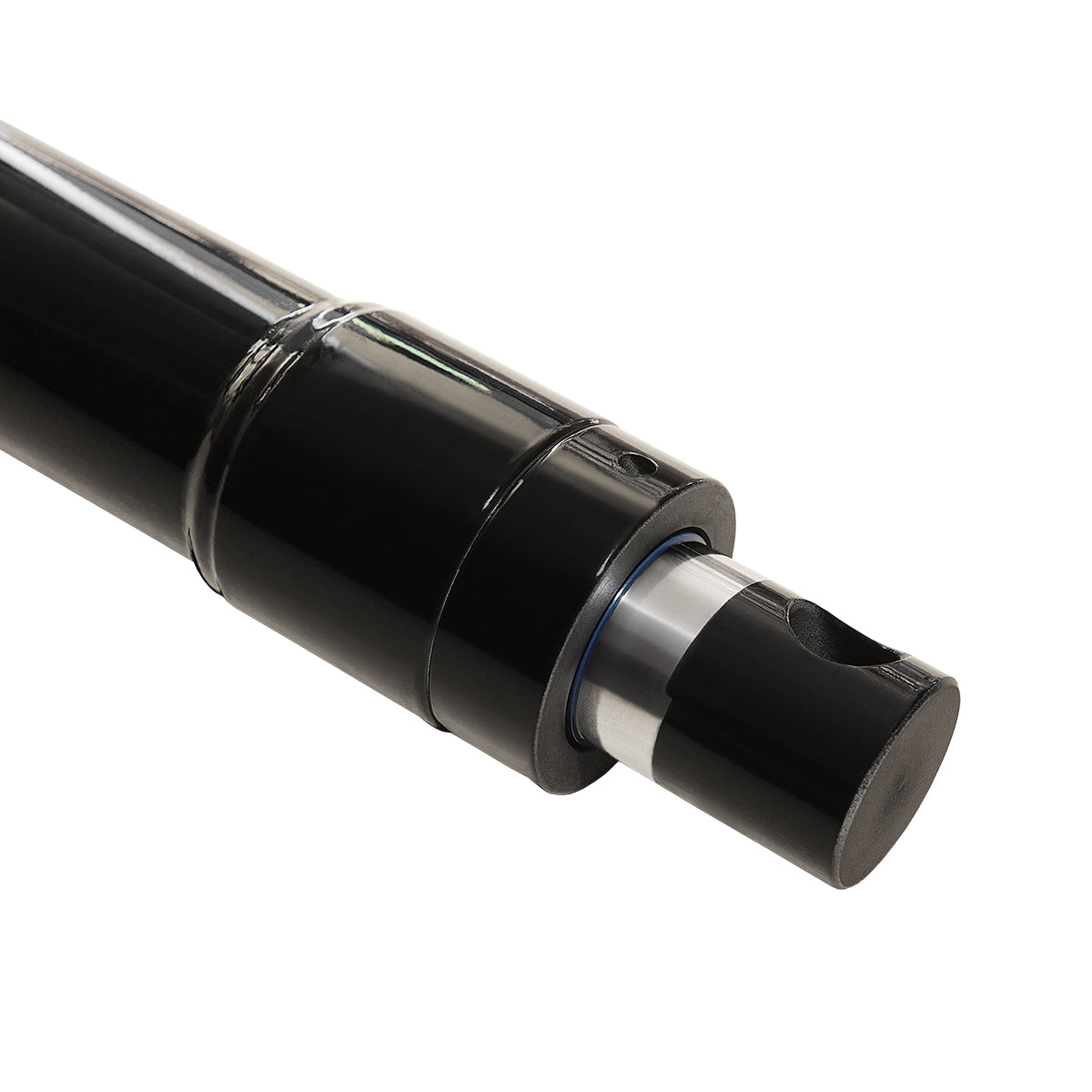

Rod End Pin Hole
Action Single Acting
Weight 11 LBs

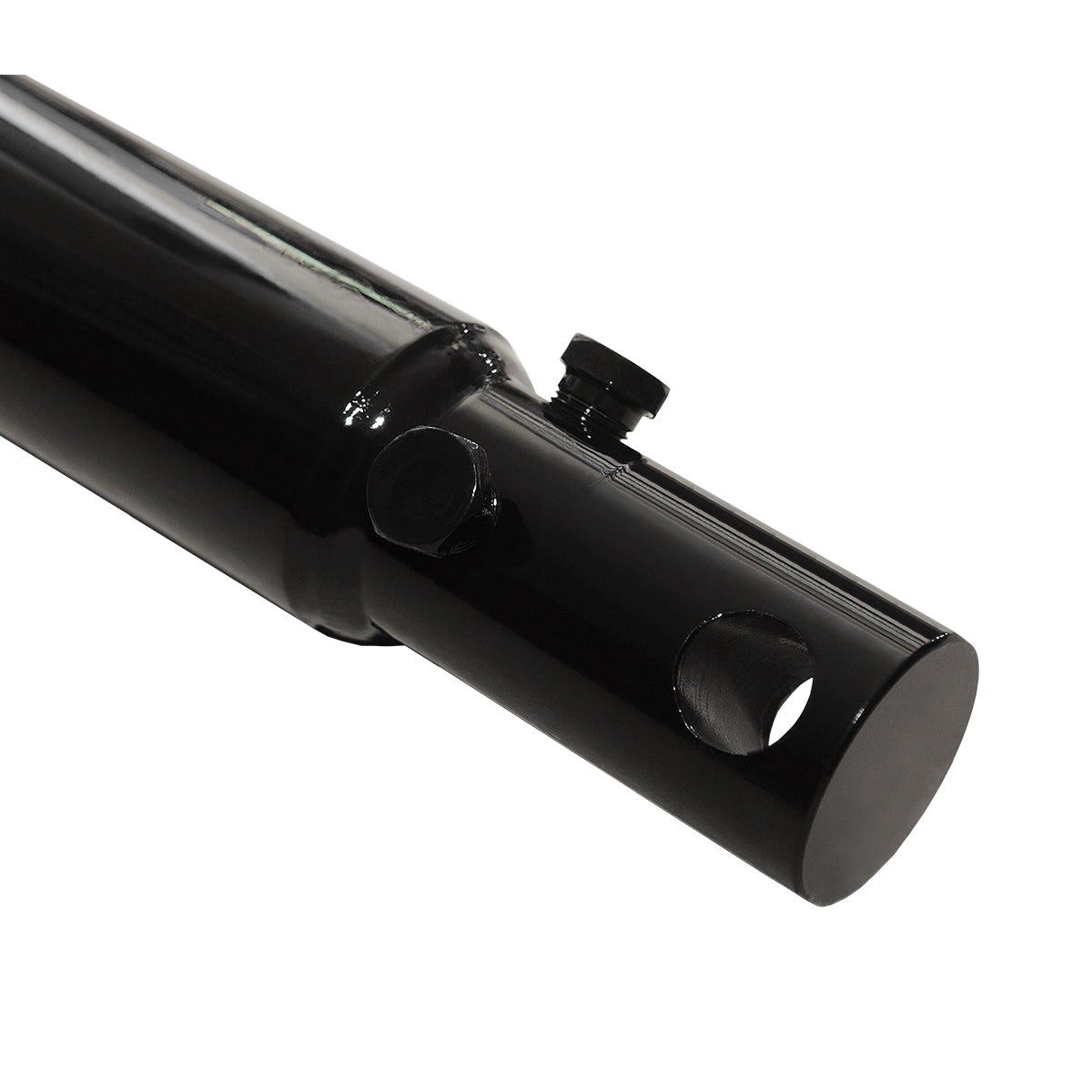

Capacity Through-hole for pin attachment base end, ? 2.125? honed cold-drawn tubing, ? 1.5? chrome-plated rod (steel 1045) with drilled pinhole end.
Operation Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
