WCL 2.5x16 | 2.5" bore x 16" stroke clevis hydraulic cylinder

by Magister Hydraulics
SKU: WCL 2.5x16
$252.00
WCL 2.5x16 | 2.5" bore x 16" stroke clevis hydraulic cylinder - HTX Fluid Power
WCL 2.5x16 | 2.5" bore x 16" stroke clevis hydraulic cylinder
WCL 2.5x16 | 2.5" bore x 16" stroke clevis hydraulic cylinder
WCL 2.5x16 | 2.5" bore x 16" stroke clevis hydraulic cylinder
WCL 2.5x16 | 2.5" bore x 16" stroke clevis hydraulic cylinder
WCL 2.5x16 | 2.5" bore x 16" stroke clevis hydraulic cylinder
WCL 2.5x16 | 2.5" bore x 16" stroke clevis hydraulic cylinder - HTX Fluid Power
Fast shipping

Fast shipping to the continguous 48 states.

Easy returns

We offer a 30-day peace of mind returns.

Need help?

Need help? 24/7 Dedicated support.

WCL 2.5x16 | 2.5" bore x 16" stroke clevis hydraulic cylinder

by Magister Hydraulics
SKU: WCL 2.5x16
$252.00
SPECIFICATIONS
Bore 2.5 in
Stroke 16 in
Port Size SAE 8

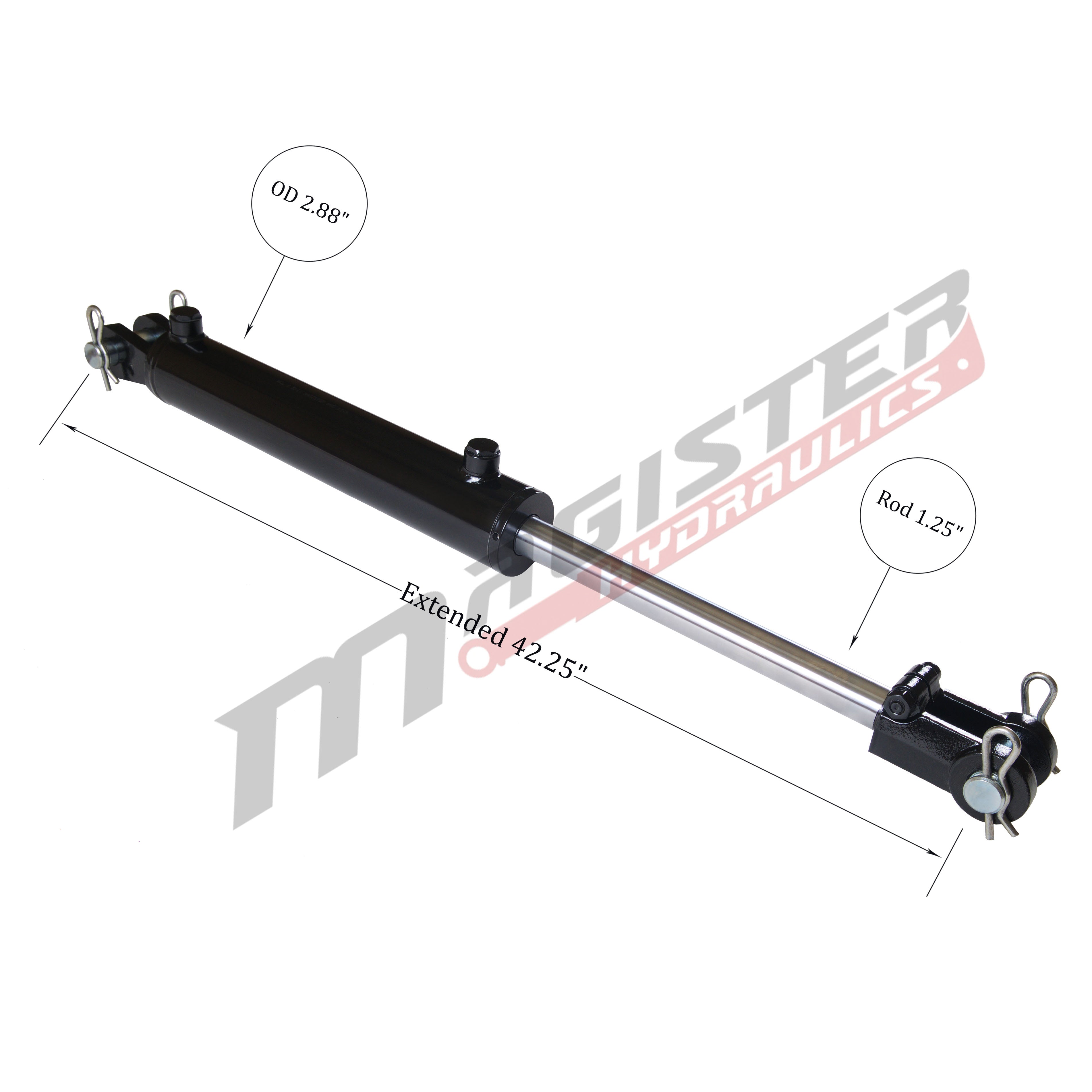

Extended 42.25 in

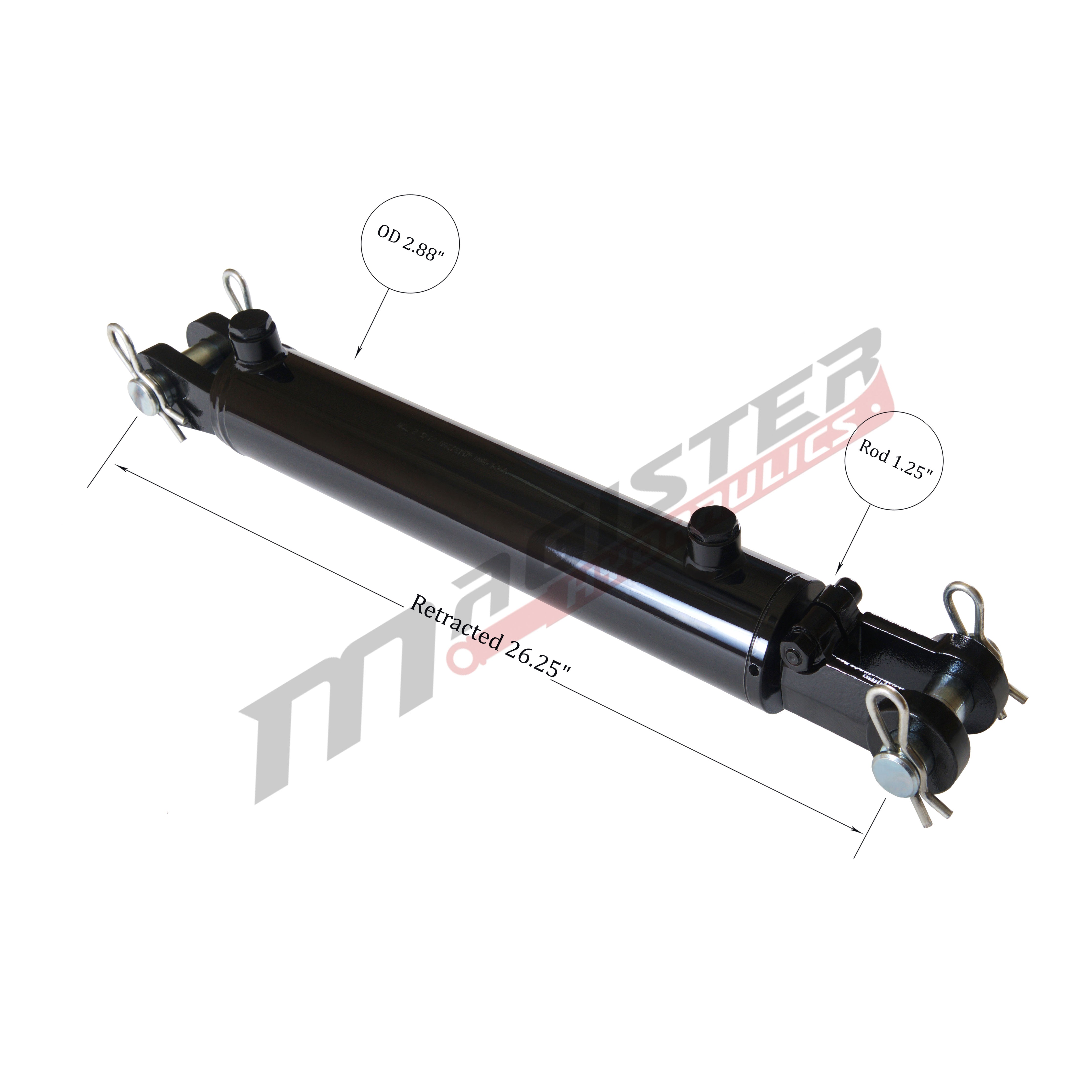

Retracted 26.25 in
Overall length 28.25 in
Pressure 3500 PSI
Column Load 14,700 LBs
Oil Volume 1.36 QTs
Design Welded
Rod Type Chrome Plated

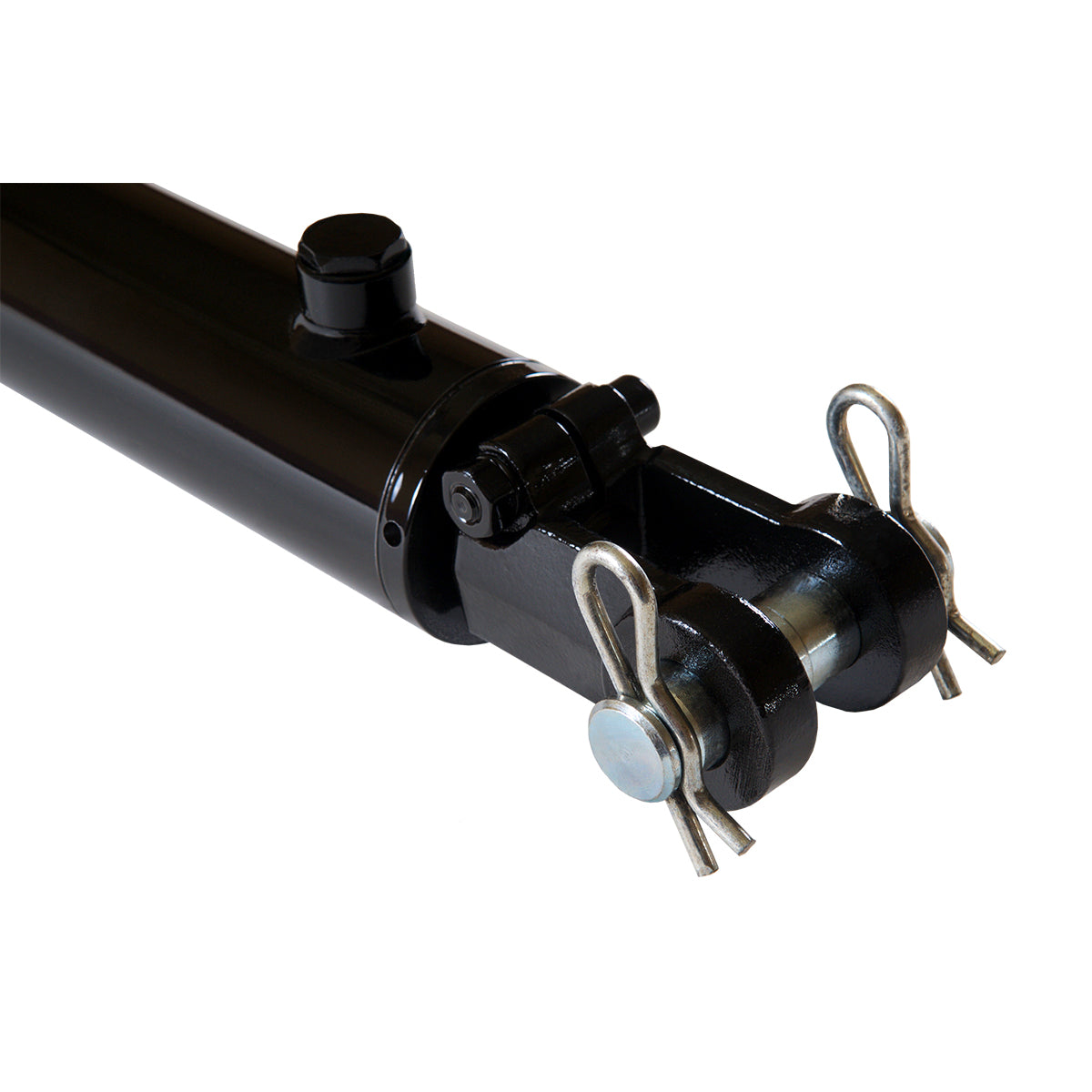

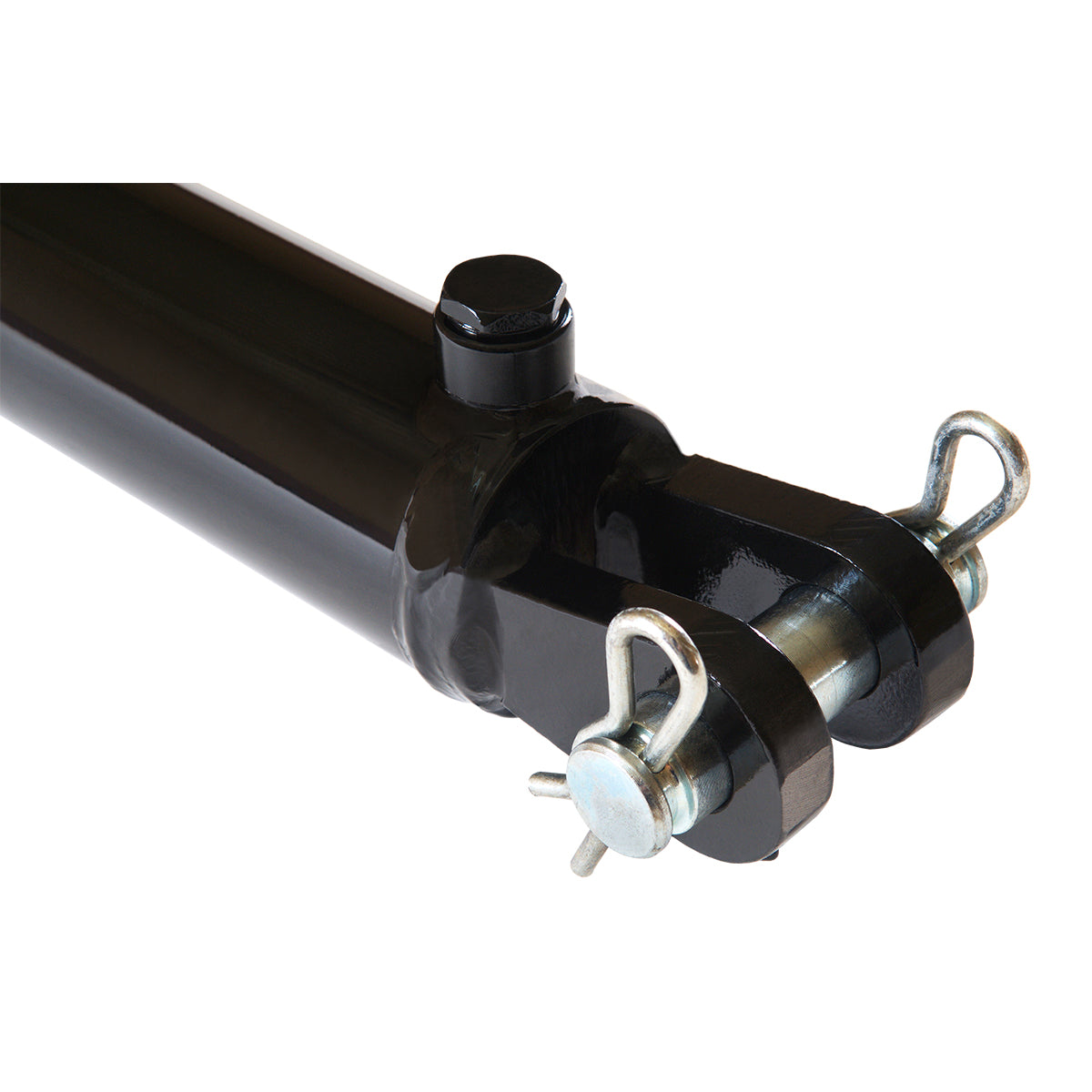

Rod End Clevis
Action Double Acting
Weight 27 LBs
Brand Magister Hydraulics
GTIN 850597006462
Product SKU Maxim part number
Chief part number Prince-Wolverine part number
Prince-Magnum part number Eagle part number
WCL 2.5x16 288420
287023 WWCL2516-S
PC2516CL HTG2516-ORB
Outer Dia. (?) 2.87 in
Rod Dia. (?) 1.25 in
Pin Dia. (?) 1 in
