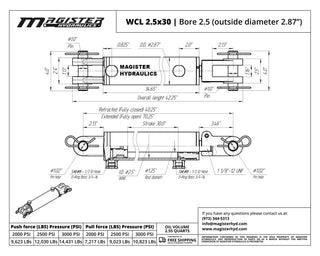

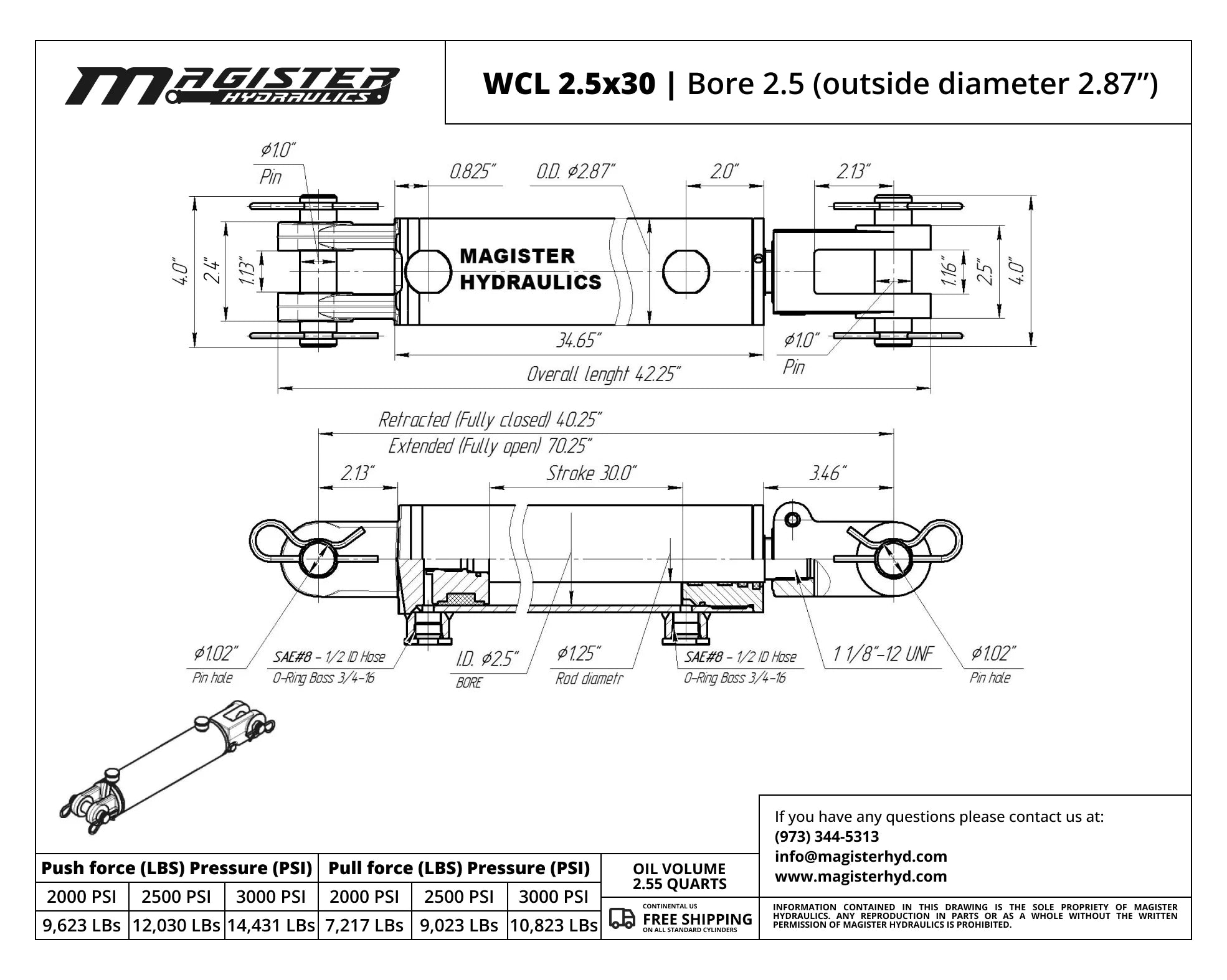

WCL 2.5x30 | 2.5" bore x 30" stroke clevis hydraulic cylinder

by Magister Hydraulics
SKU: WCL 2.5x30
$299.00
WCL 2.5x30 | 2.5" bore x 30" stroke clevis hydraulic cylinder - HTX Fluid Power
WCL 2.5x30 | 2.5" bore x 30" stroke clevis hydraulic cylinder
WCL 2.5x30 | 2.5" bore x 30" stroke clevis hydraulic cylinder
WCL 2.5x30 | 2.5" bore x 30" stroke clevis hydraulic cylinder
WCL 2.5x30 | 2.5" bore x 30" stroke clevis hydraulic cylinder
WCL 2.5x30 | 2.5" bore x 30" stroke clevis hydraulic cylinder
WCL 2.5x30 | 2.5" bore x 30" stroke clevis hydraulic cylinder - HTX Fluid Power
Fast shipping

Fast shipping to the continguous 48 states.

Easy returns

We offer a 30-day peace of mind returns.

Need help?

Need help? 24/7 Dedicated support.

WCL 2.5x30 | 2.5" bore x 30" stroke clevis hydraulic cylinder

by Magister Hydraulics
SKU: WCL 2.5x30
$299.00
SPECIFICATIONS
Bore 2.5 in
Stroke 30 in
Port Size SAE 8

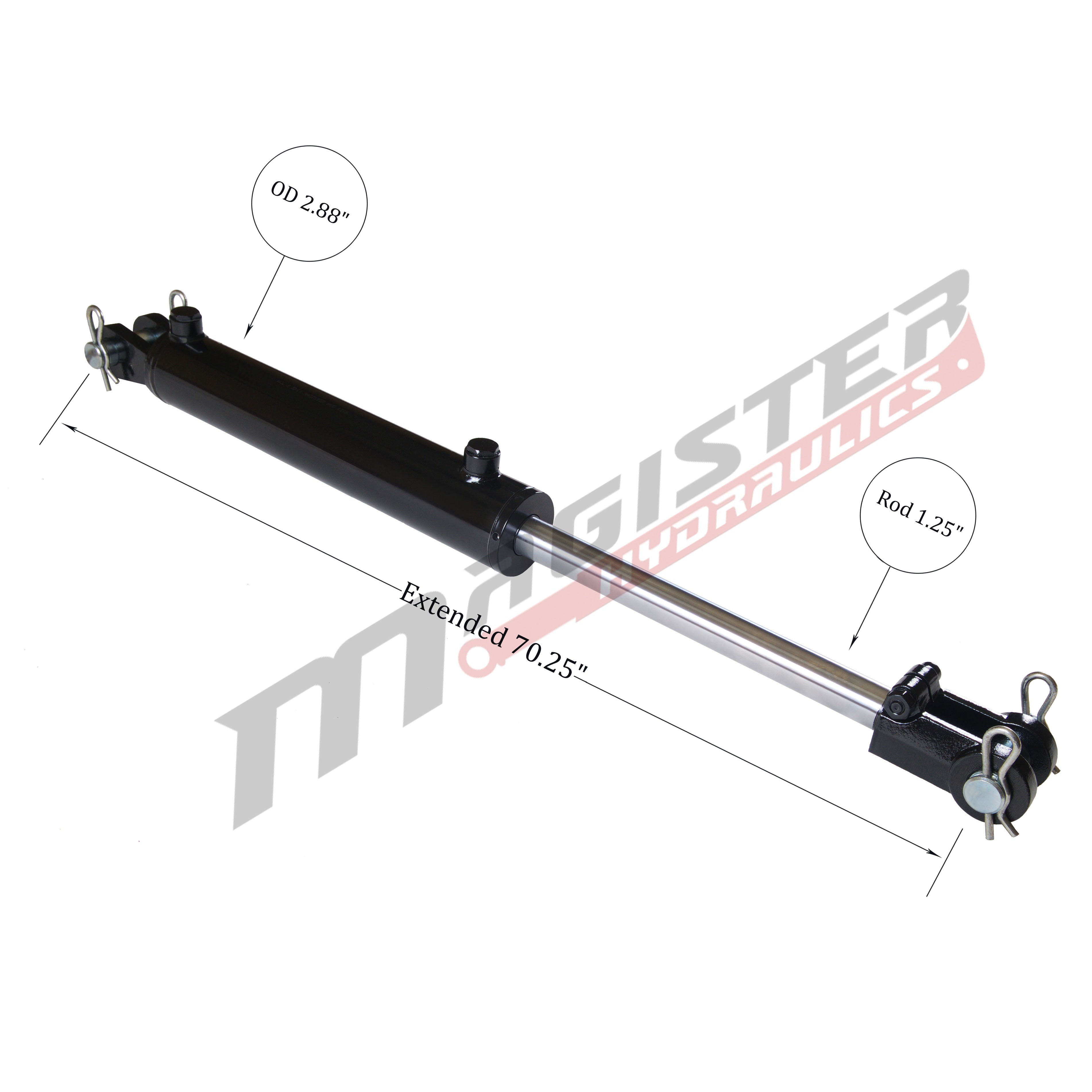

Extended 70.25 in

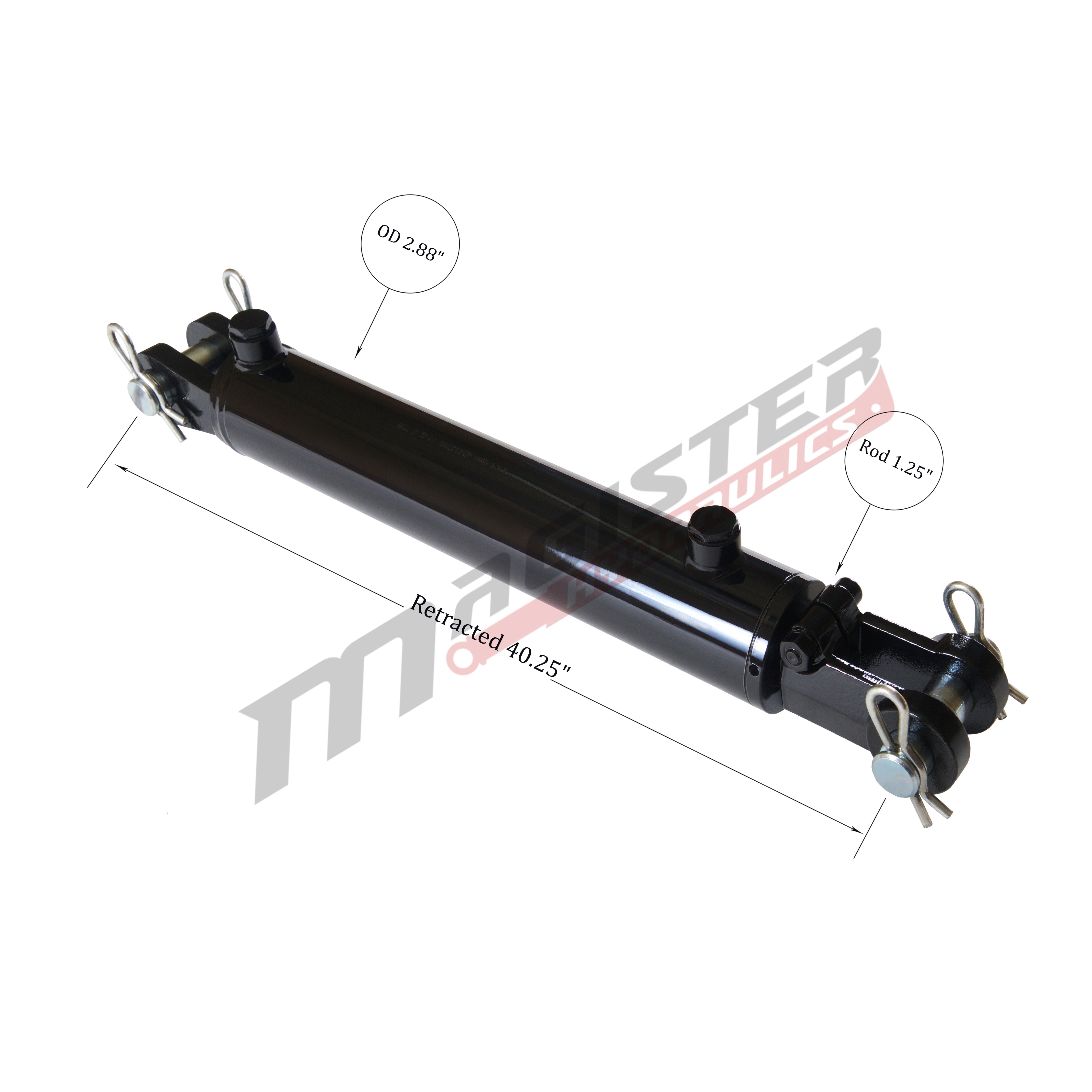

Retracted 40.25 in
Overall length 42.25 in
Pressure 3500 PSI
Column Load 5,400 LBs
Oil Volume 2.55 QTs
Design Welded
Rod Type Chrome Plated

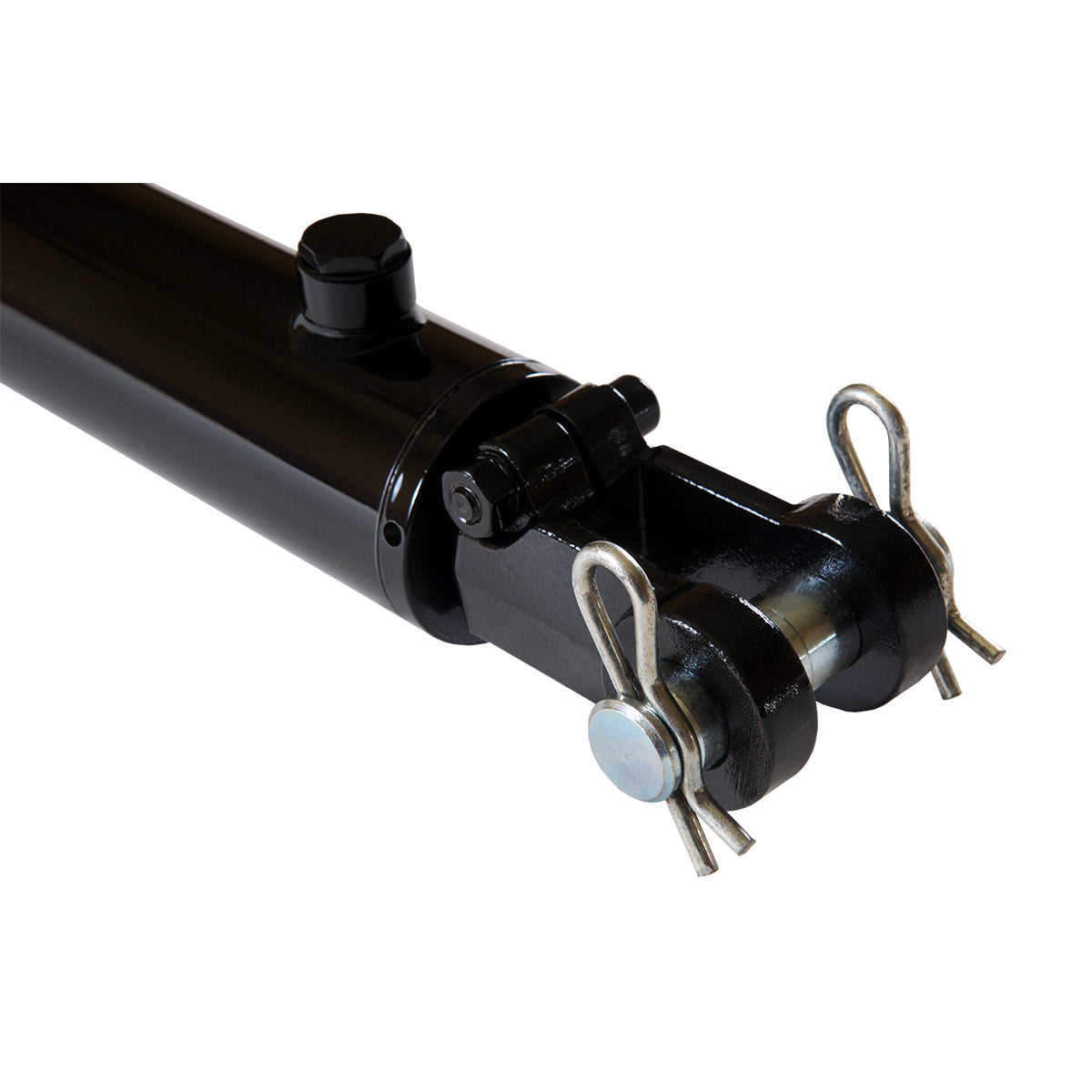

Rod End Clevis
Action Double Acting
Weight 38 LBs
Brand Magister Hydraulics
GTIN 850597006875
Outer Diameter 2.87 in
Rod Diameter 1.25 in
Pin Diameter 1 in
