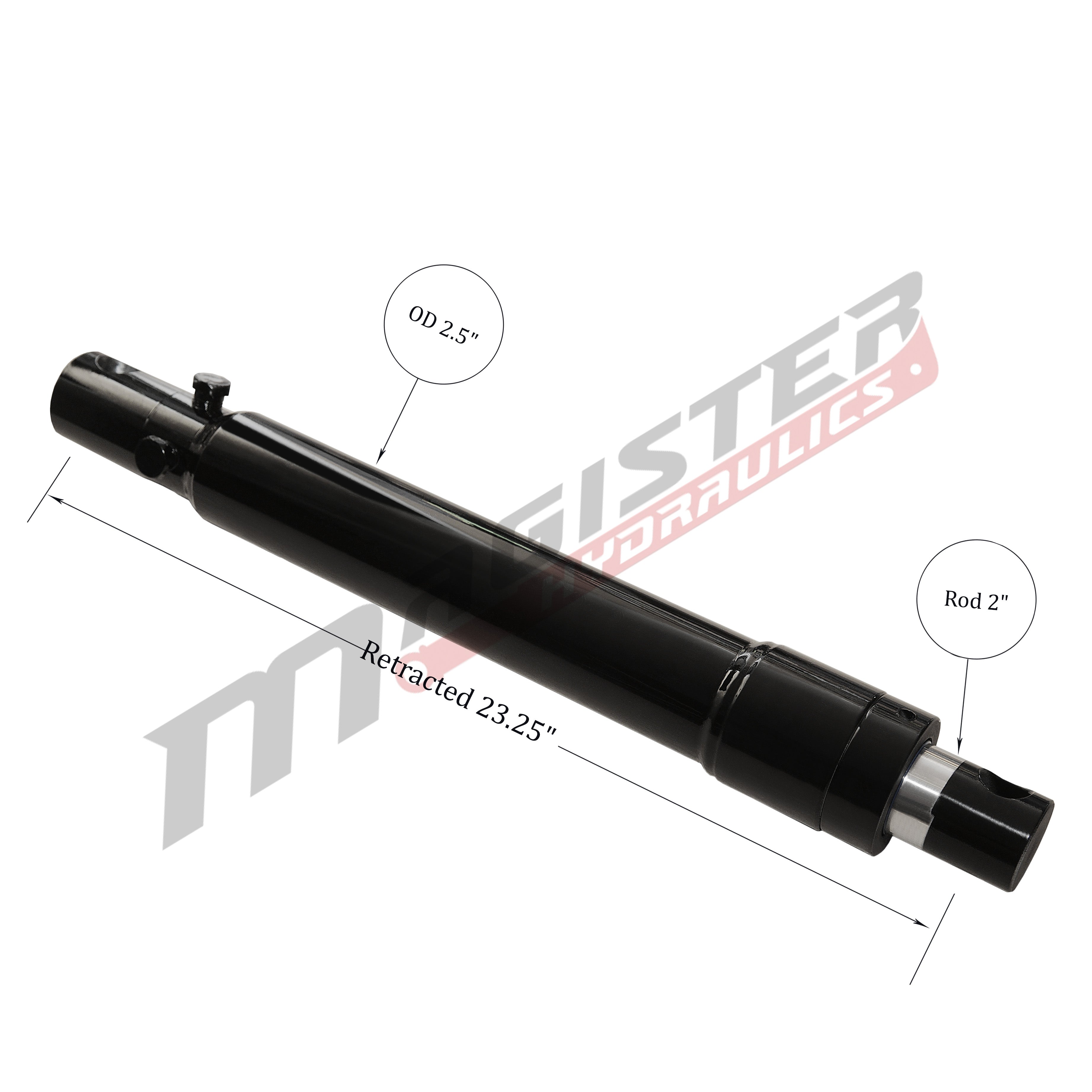

WSP 2x16FIS | 2" bore x 16" stroke snow plow Fisher hydraulic cylinder

by Magister Hydraulics
SKU: WSP 2x16FIS
$209.00
WSP 2x16FIS | 2" bore x 16" stroke snow plow Fisher hydraulic cylinder - HTX Fluid Power
WSP 2x16FIS | 2" bore x 16" stroke snow plow Fisher hydraulic cylinder
WSP 2x16FIS | 2" bore x 16" stroke snow plow Fisher hydraulic cylinder
WSP 2x16FIS | 2" bore x 16" stroke snow plow Fisher hydraulic cylinder
WSP 2x16FIS | 2" bore x 16" stroke snow plow Fisher hydraulic cylinder
WSP 2x16FIS | 2" bore x 16" stroke snow plow Fisher hydraulic cylinder - HTX Fluid Power
Fast shipping

Fast shipping to the continguous 48 states.

Easy returns

We offer a 30-day peace of mind returns.

Need help?

Need help? 24/7 Dedicated support.

WSP 2x16FIS | 2" bore x 16" stroke snow plow Fisher hydraulic cylinder

by Magister Hydraulics
SKU: WSP 2x16FIS
$209.00

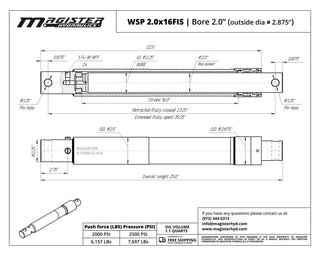

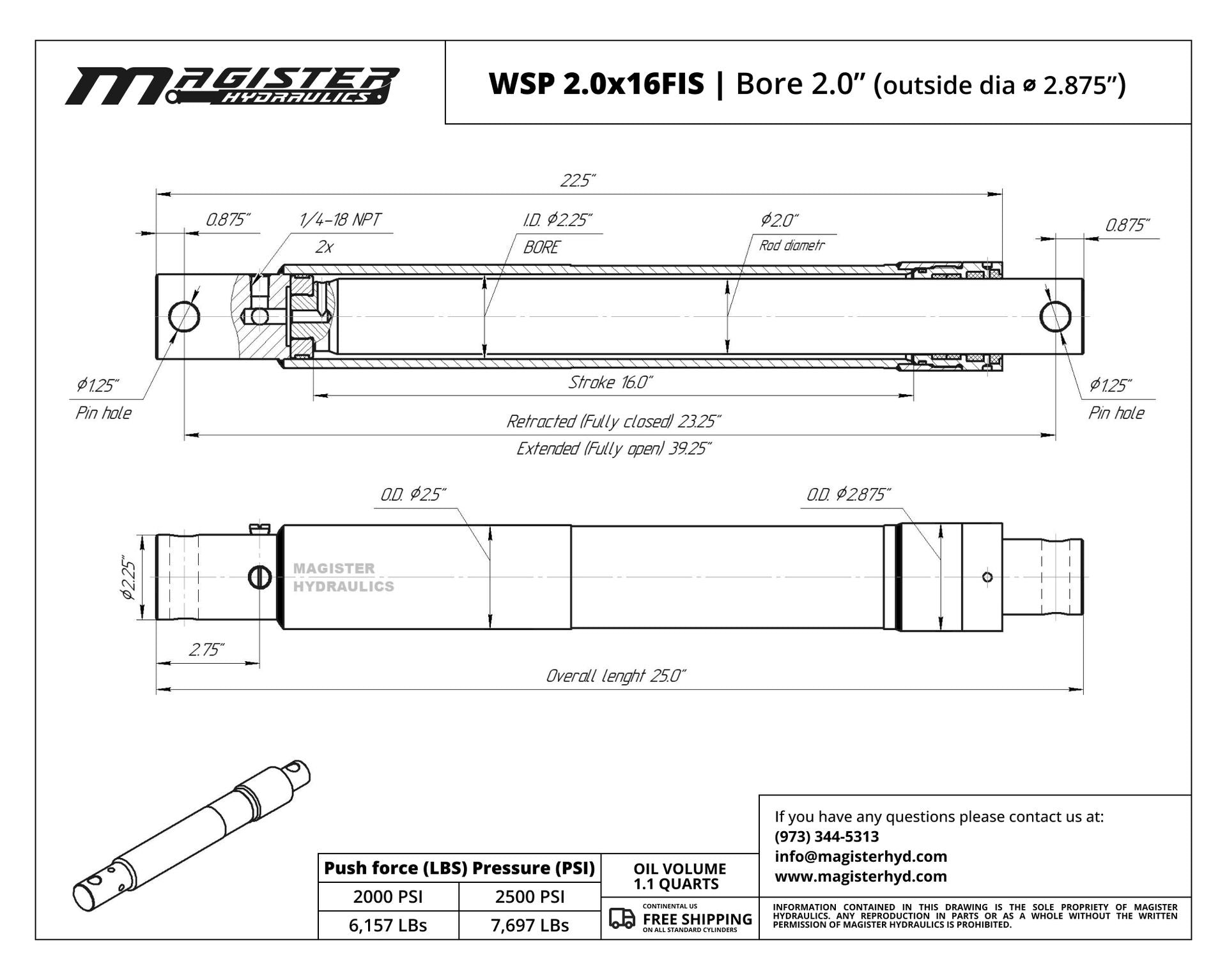

SPECIFICATIONS
Bore 2 in
Outer Diameter 2.5 in
Stroke 16 in
Rod Diameter 2 in
Port Size 1/4 - 18" NPT
Pin Diameter 1-1/4 in
Extended 39.25 in
Retracted 23.25 in
Overall length 25 in
Pressure 2500 PSI
Push Force 7,697 LBs
Oil Volume 1.1 QTs
Brand Magister Hydraulics
Design Welded
Rod Type Chrome Plated

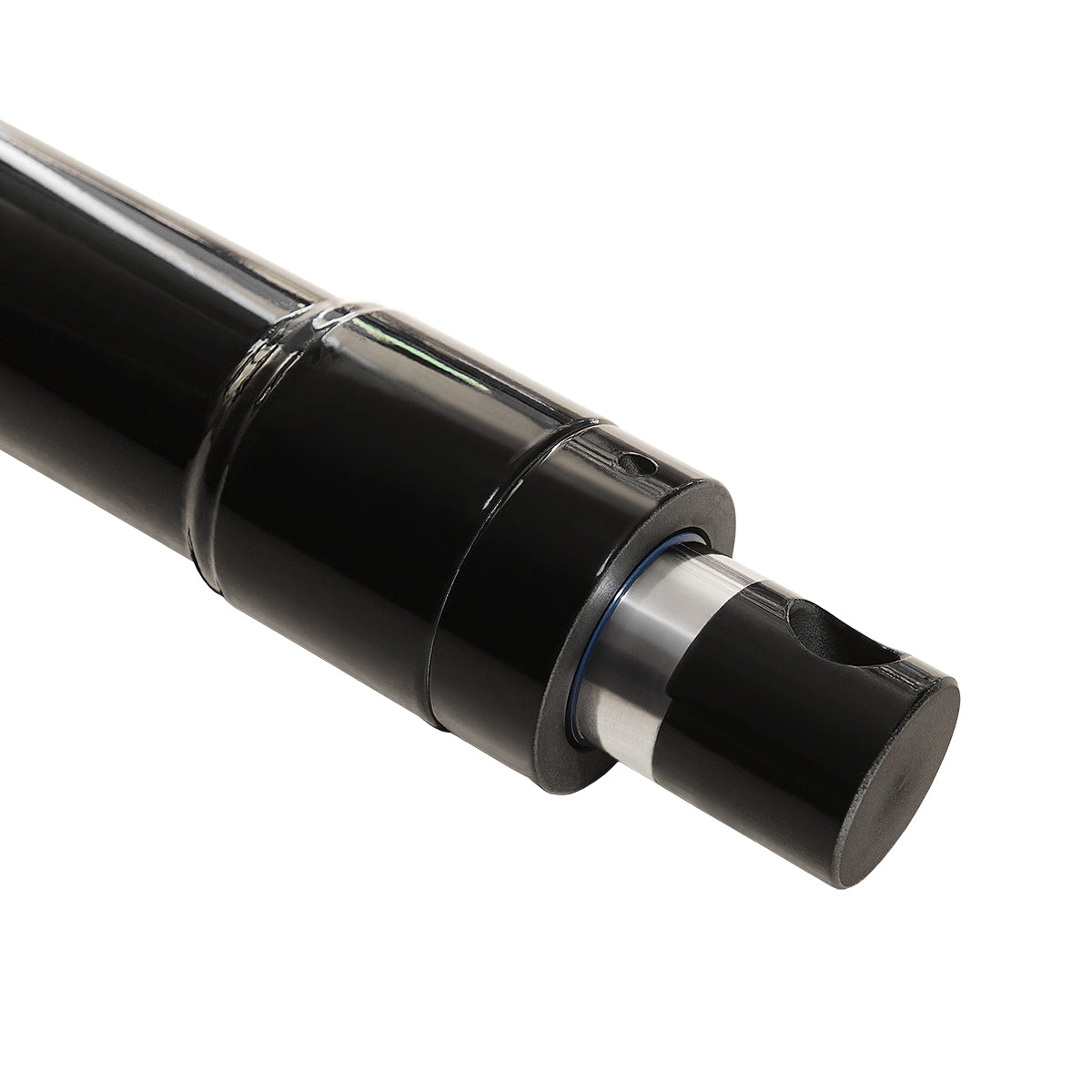

Rod End Pin Hole
Action Single Acting
Weight 32 LBs

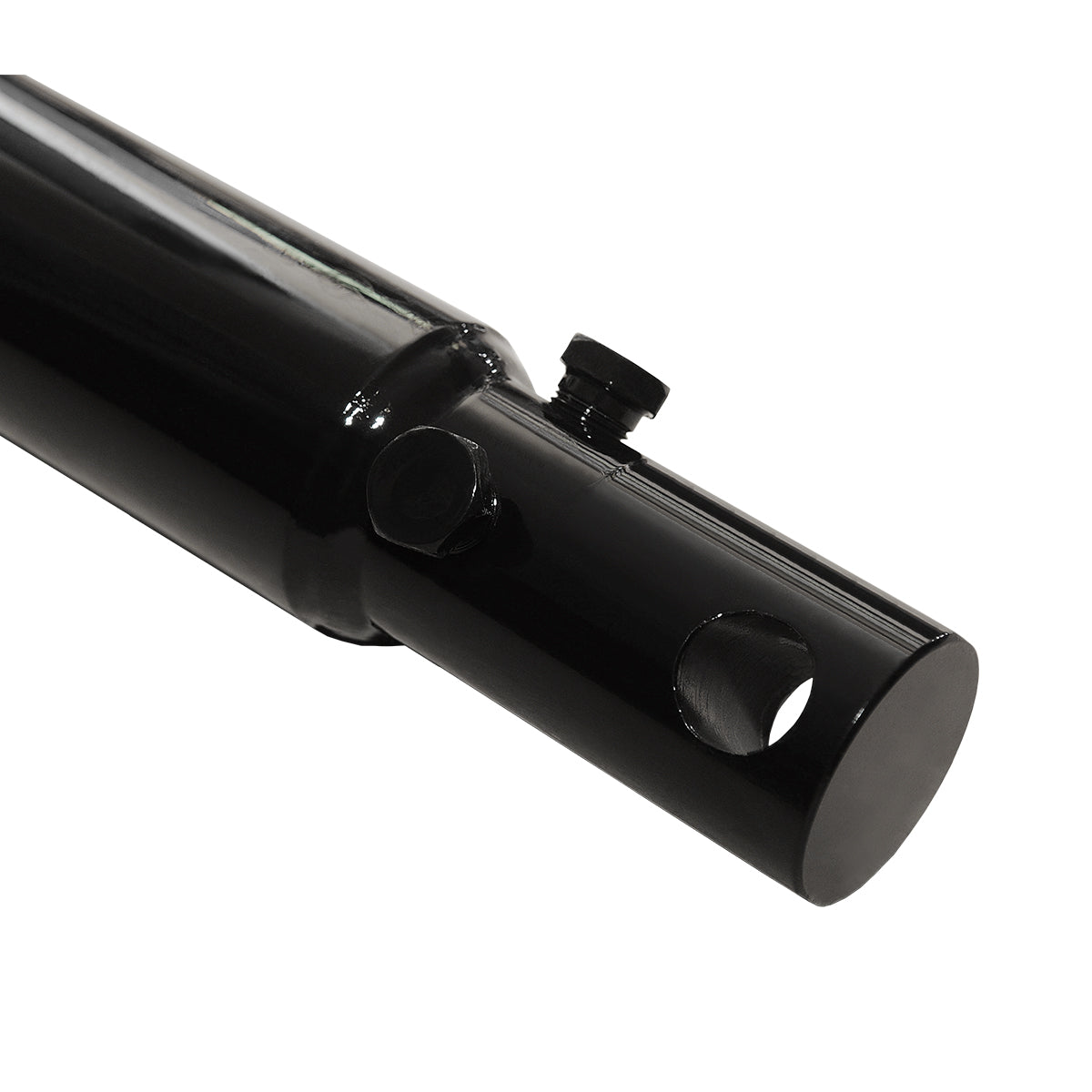

Capacity Through-hole for pin attachment base end, ? 2.5? honed cold-drawn tubing, ? 2.0? chrome-plated rod (steel 1045) with drilled pinhole end.
Operation Features finely honed cylinder barrels and high-quality seals for smooth and consistent operation.
