WTG 2x28 | 2" bore x 28" stroke tang hydraulic cylinder

by Magister Hydraulics
SKU: WTG 2x28
$280.00
WTG 2x28 | 2" bore x 28" stroke tang hydraulic cylinder - HTX Fluid Power
WTG 2x28 | 2" bore x 28" stroke tang hydraulic cylinder
WTG 2x28 | 2" bore x 28" stroke tang hydraulic cylinder
WTG 2x28 | 2" bore x 28" stroke tang hydraulic cylinder
WTG 2x28 | 2" bore x 28" stroke tang hydraulic cylinder
WTG 2x28 | 2" bore x 28" stroke tang hydraulic cylinder
WTG 2x28 | 2" bore x 28" stroke tang hydraulic cylinder - HTX Fluid Power
Fast shipping

Fast shipping to the continguous 48 states.

Easy returns

We offer a 30-day peace of mind returns.

Need help?

Need help? 24/7 Dedicated support.

WTG 2x28 | 2" bore x 28" stroke tang hydraulic cylinder

by Magister Hydraulics
SKU: WTG 2x28
$280.00

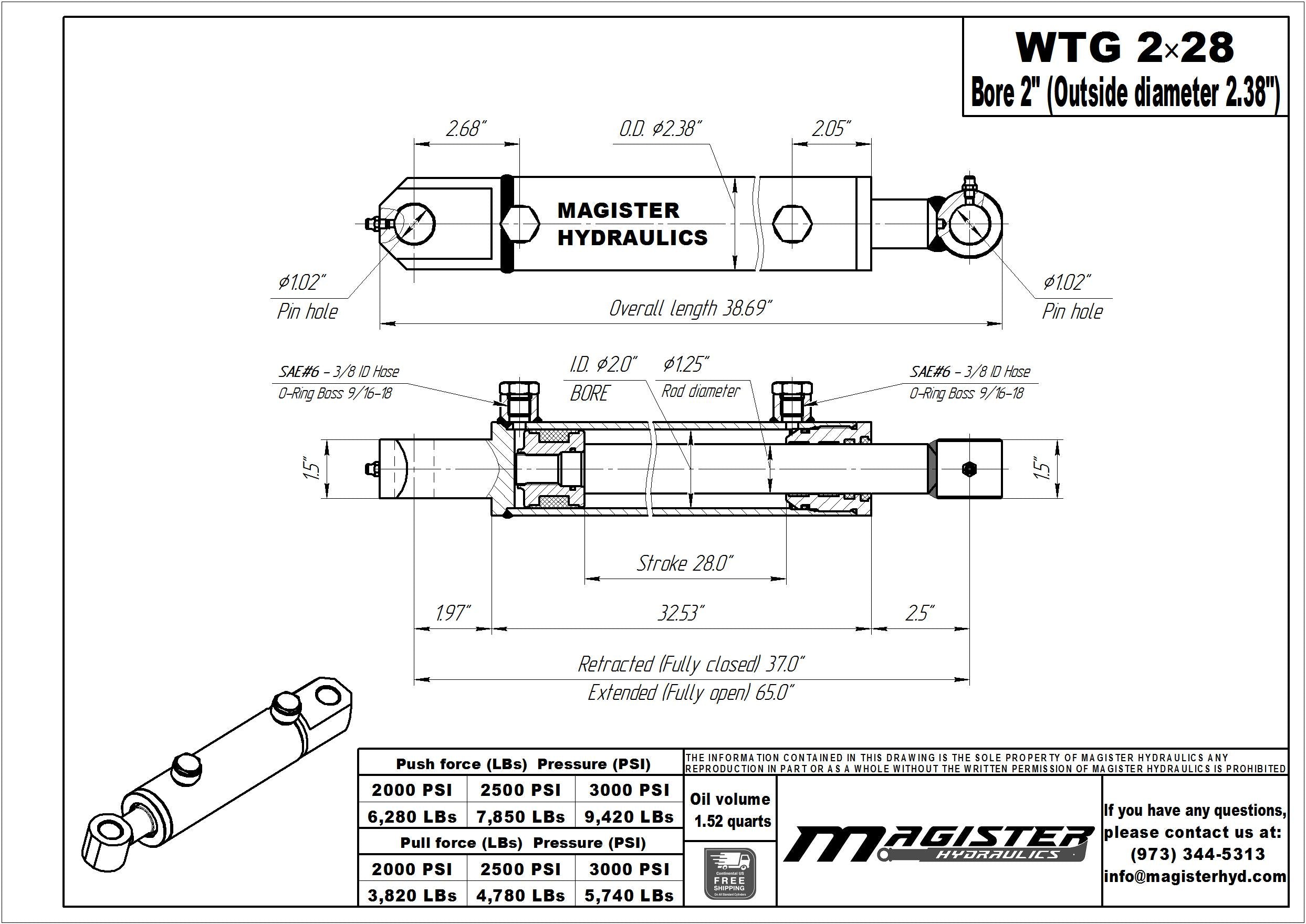

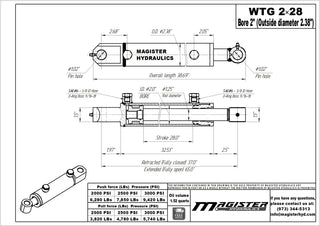

SPECIFICATIONS
Bore 2 in
Stroke 28 in
Port Size SAE 6

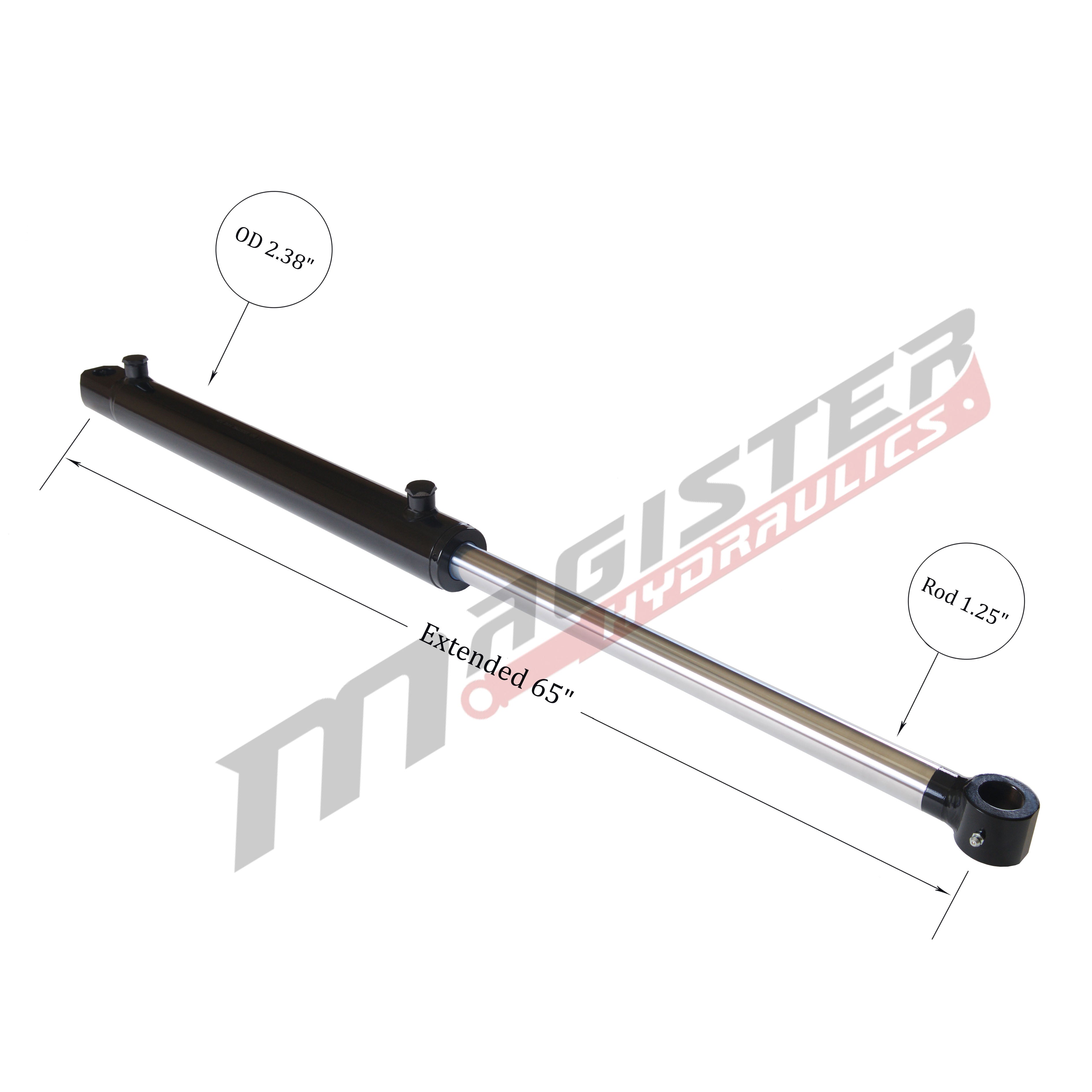

Extended 65 in

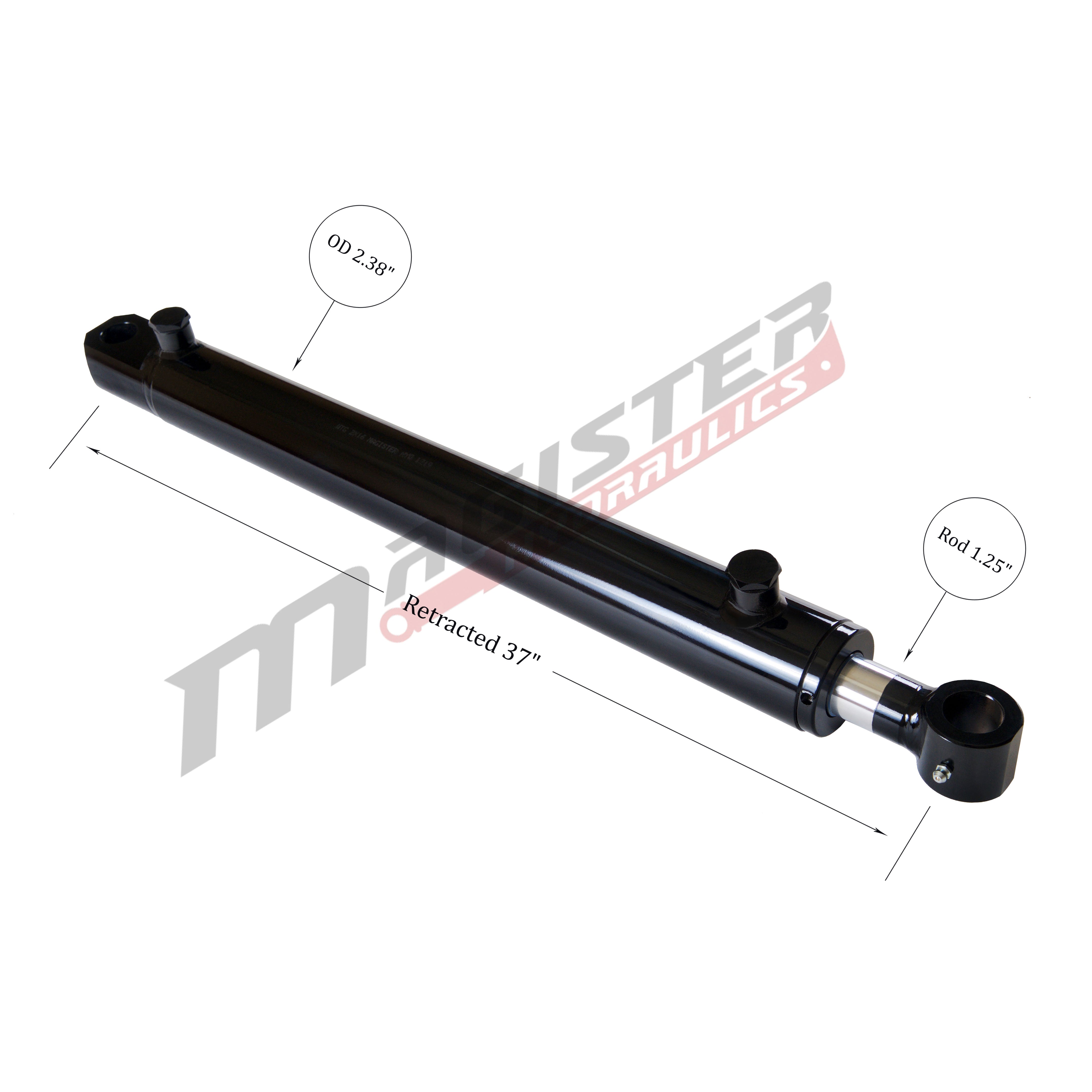

Retracted 37 in
Overall length 38.69 in
Pressure 3500 PSI
Column Load 6,200 LBs
Oil Volume 1.5 QTs
Design Welded
Rod Type Chrome Plated
Rod End Narrow Tube
Action Double Acting
Weight 29 LBs
Brand Magister Hydraulics
GTIN 850016509154
Outer Diameter 2.38 in
Rod Diameter 1.25 in
Pin Diameter 1 in
