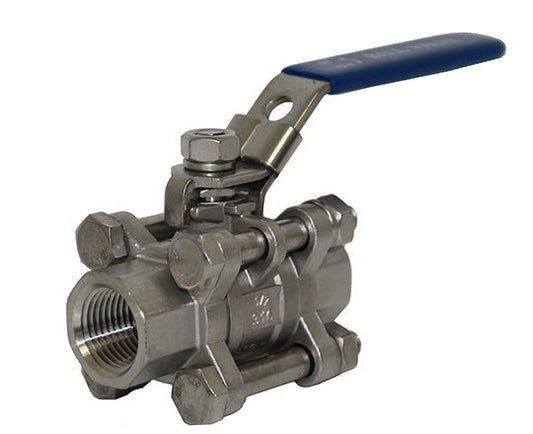

3 Piece Ball Valves (316SS)

Features:

  • Suitable Mediums: Water, Oil and Gas. (WOG)
  • Seats & Seals: Teflon (PTFE)
  • Threads: Female NPT (National Pipe Thread)
  • Full Port: Full Bore Ball Valve (ID remains the same size as the pipe size)
  • Handle: Blow-Out Proof
  • Handle Locking Mechanism: handle equipped with locking device (Removable)

Performance Specifications:

  • Pressure Rating: 1000 PSI (6.4MPa) Making them suitable for most applications.
  • Temperature: -13⁰F to 302⁰F (-25°C to 150°C)
  • Shell Test: 9.6MPa
  • Seat Test: 0.6MPa

General Characteristics:

  • The distinctive feature of this valve is that it can be easily taken apart for cleaning.
  • By loosening 4 bolts the body separates into three parts.
  • This allows one to leave the ball valve threaded in its current application while just removing the ball valve portion.
  • Widely used in the food and beverage industry and other applications where cleaning is required.

Material components:

  • Valve Body: Manufactured out of Stainless Steel 316 (CF8M)
  • Seats & Seals: Composed out of Teflon (PTFE)
  • Compatibility: Compatible with any substance suitable to be used with Stainless Steel and PTFE
  • All parts of the valve that touch the medium being moved are Stainless steel (316) and Teflon (PTFE)

General Dimensions:

  • The body of this valve is divided into 3 segments held together by nuts, bolts and pipe nipples.
  • Two sections have threads, and the center portion contains the ball valve.
  • The Center portion can be removed, leaving the other two ends still connect to the pipe for easy access without having to unscrew the whole ball valve.

Pressure Chart:

Design Data:

  • Design & Manufacture According To: EN12516-1/-2,PED97/23/EC (CE0036)
  • Dimension standards To: DIN3202/4-M3,din2999/259 ,ISO228-1,ISO7-1,ASME B1.20.1,BS21
  • Casting According To: AD2000-WO
  • Valve Inspection & Testing According To: En12266-1,API 598;
  • Shell test pressure : 95 bar for DN6~DN50;60bar for DN65~DN100
  • Seal Pressure Test: 70 bar for DN6-~DN50; 44bar for DN65~DN100
  • Low Pressure Test: 6~8 bar
  • Suitable Mediums: Water, Oil and Gas (WOG)
  • Temperature Range: -14°F to 248°F (-10℃ ~ 120℃)
  • Pressure at max. Temperature：44.5 bar for 1.4308 and pn63,50.2bar for 144.8 and PN63; 28.2 bar for 1.4308 and PN40,31.8 bar for 1.4408 and PN40
  • Pressure at min. Temperature: 59.7 bar for 1.4308 and PN63, 61.2 BAR FOR 1.4408 and PN63; 37.9 bar for1.4308 and PN40,38.8 bar for 1.4408 and PN40
  • Corrosive Allowance : 2mm
  • CE Approval for: DN32~DN100.
