WCL 4x30 | 4" bore x 30" stroke clevis hydraulic cylinder

by Magister Hydraulics
SKU: WCL 4x30
$490.00

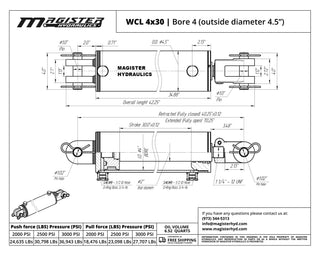

WCL 4x30 | 4" bore x 30" stroke clevis hydraulic cylinder - HTX Fluid Power

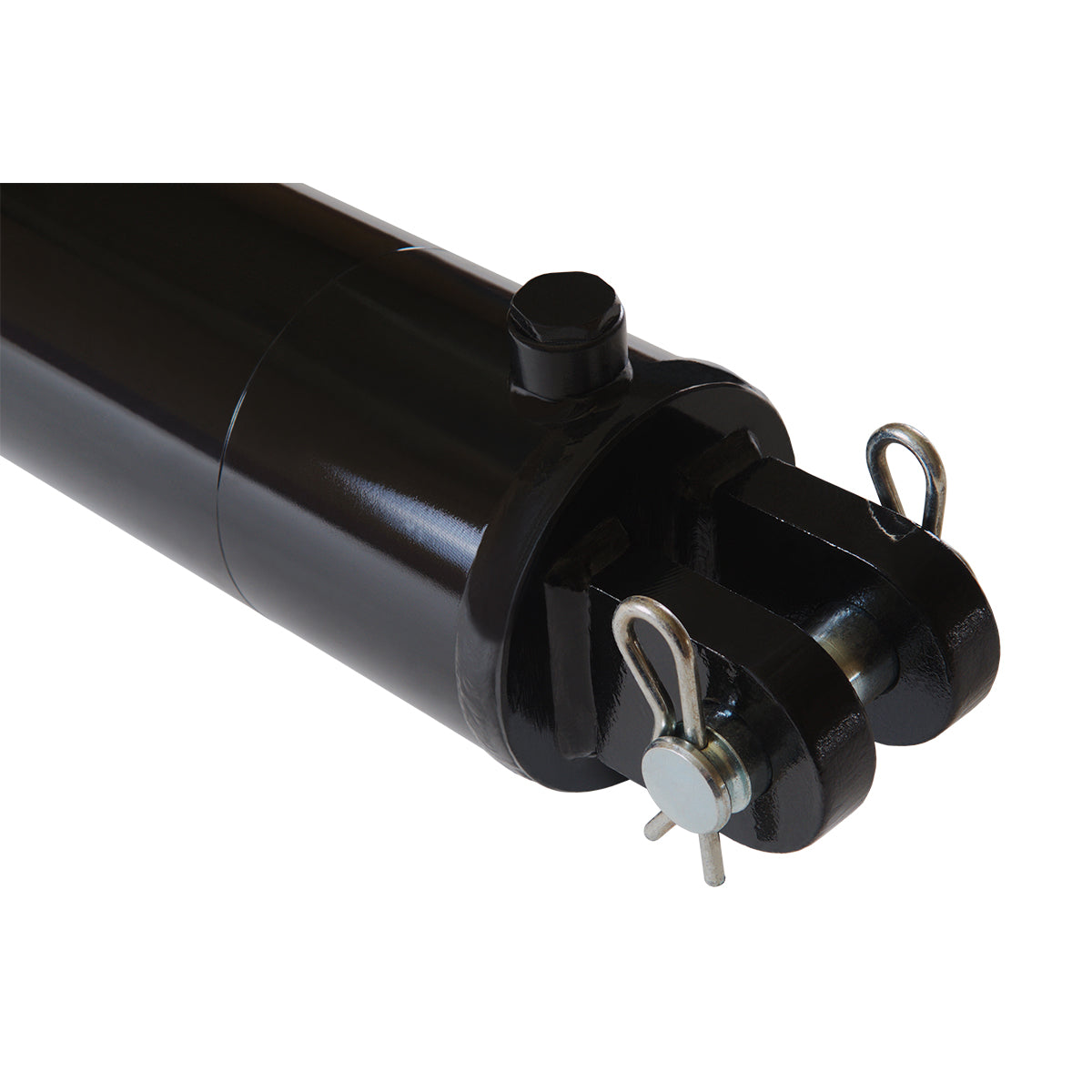

WCL 4x30 | 4" bore x 30" stroke clevis hydraulic cylinder
WCL 4x30 | 4" bore x 30" stroke clevis hydraulic cylinder
WCL 4x30 | 4" bore x 30" stroke clevis hydraulic cylinder
WCL 4x30 | 4" bore x 30" stroke clevis hydraulic cylinder
WCL 4x30 | 4" bore x 30" stroke clevis hydraulic cylinder

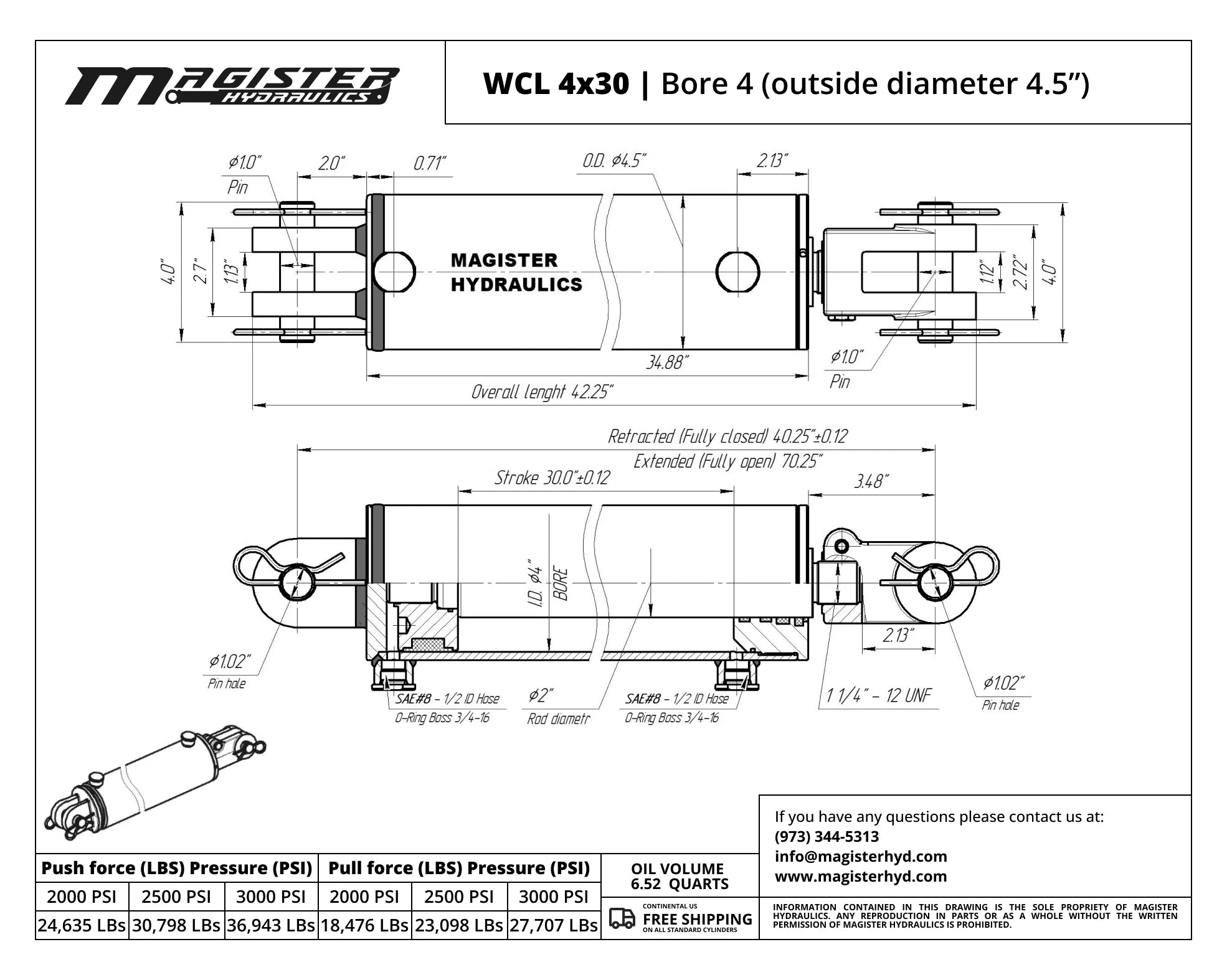

WCL 4x30 | 4" bore x 30" stroke clevis hydraulic cylinder - HTX Fluid Power
Fast shipping

Fast shipping to the continguous 48 states.

Easy returns

We offer a 30-day peace of mind returns.

Need help?

Need help? 24/7 Dedicated support.

WCL 4x30 | 4" bore x 30" stroke clevis hydraulic cylinder

by Magister Hydraulics
SKU: WCL 4x30
$490.00
SPECIFICATIONS
Bore 4 in
Stroke 30 in
Port Size SAE 8

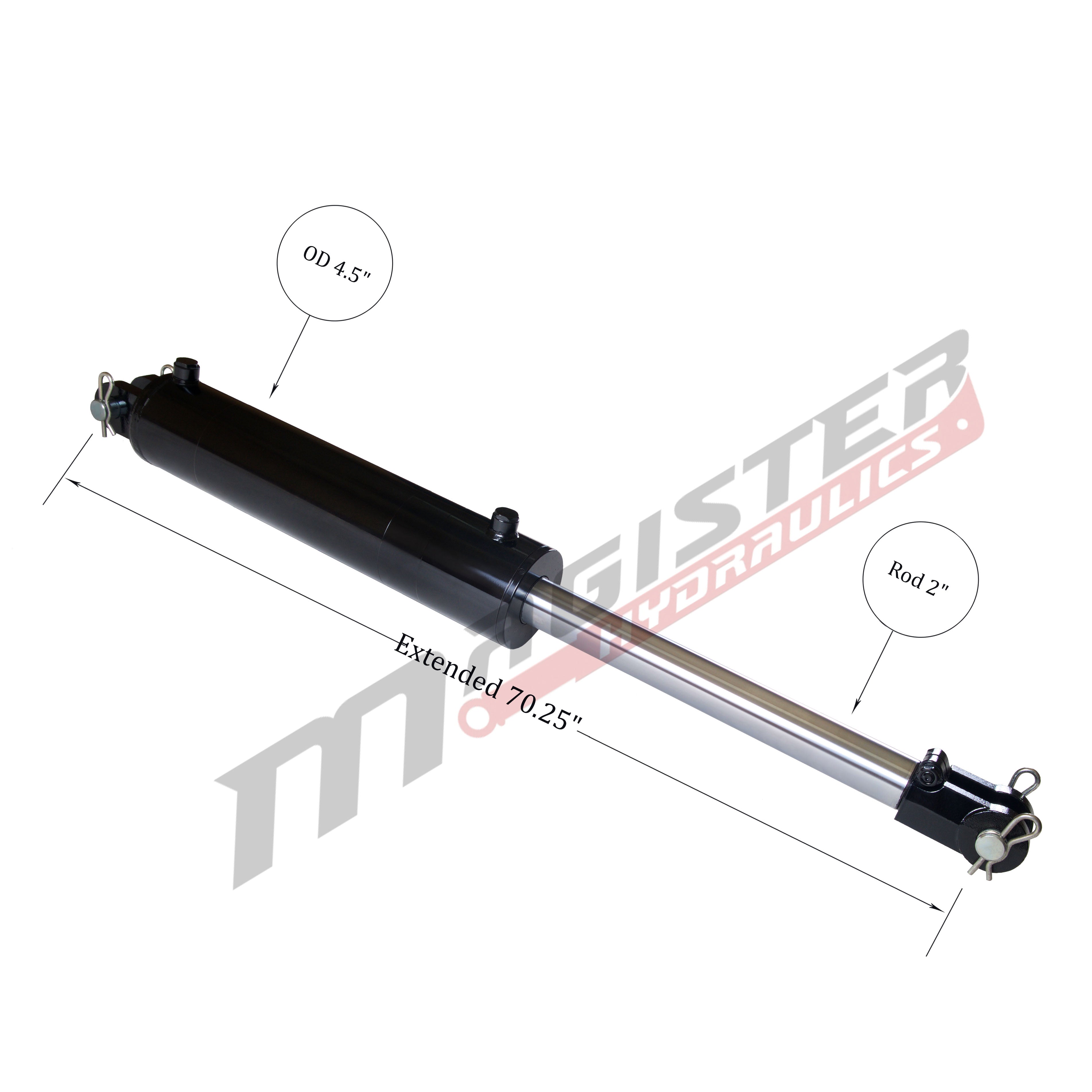

Extended 70.25 in

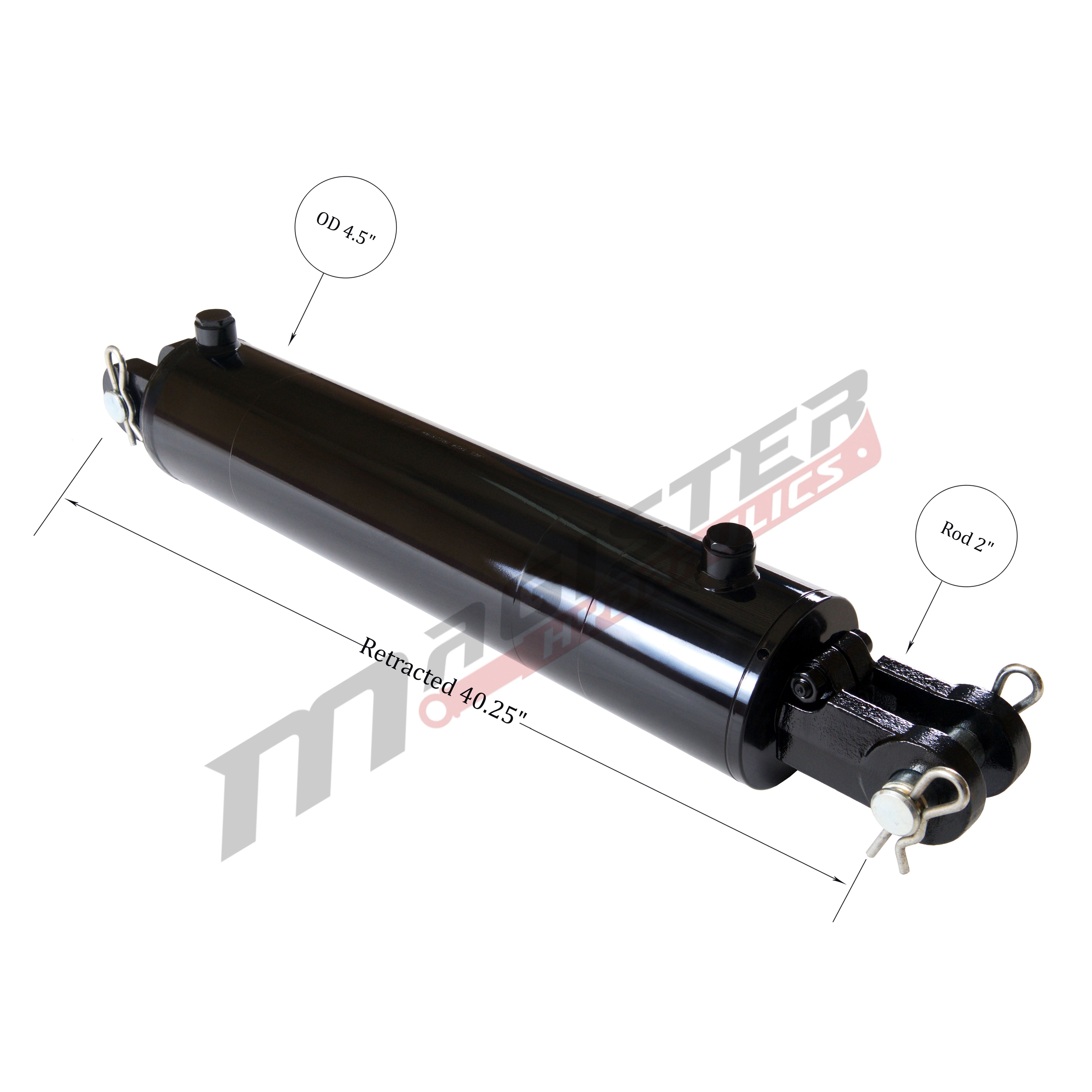

Retracted 40.25 in
Overall length 42.25 in
Pressure 3500 PSI
Column Load 33,000 LBs
Oil Volume 6.52 QTs
Design Welded
Rod Type Chrome Plated

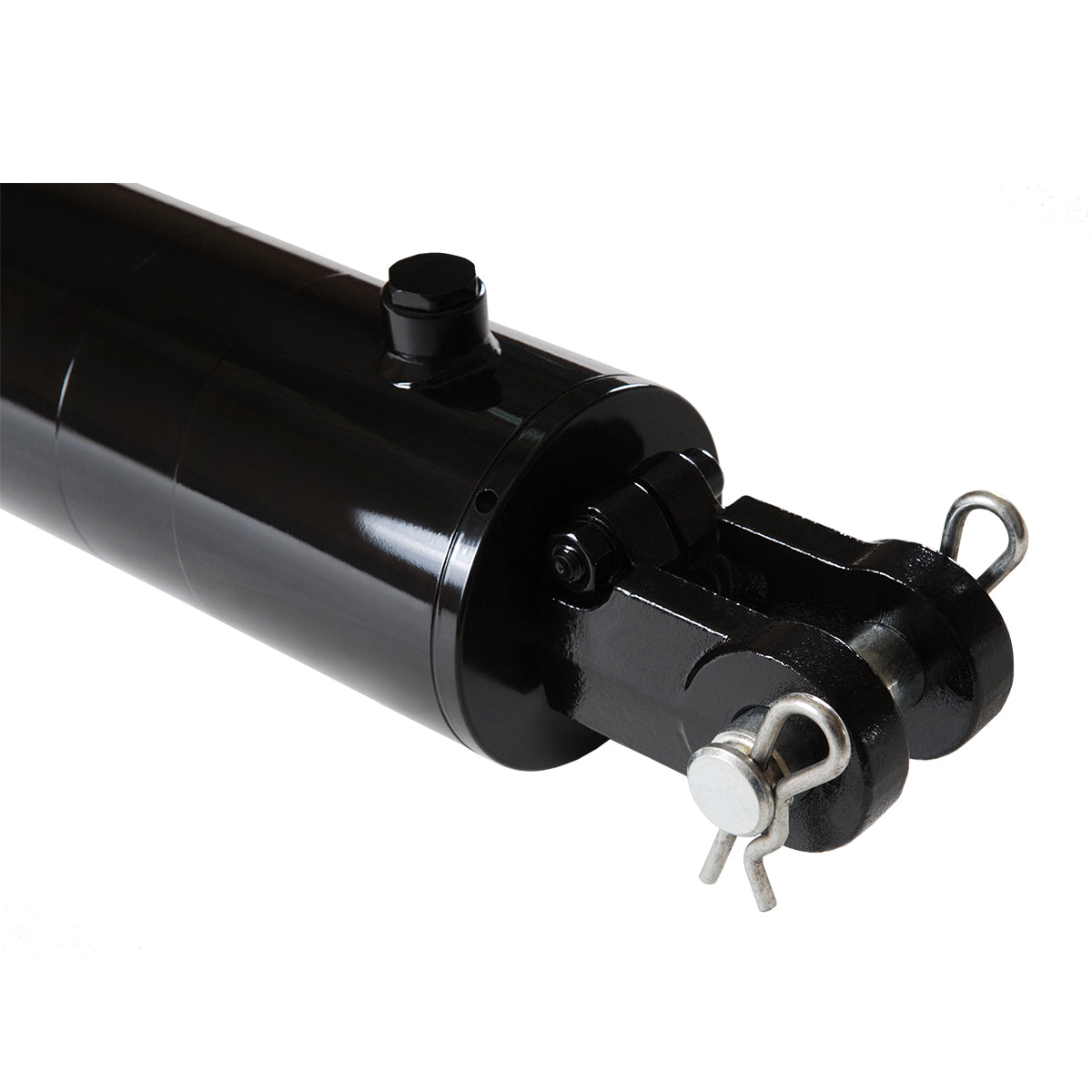

Rod End Clevis
Action Double Acting
Weight 83 LBs
Brand Magister Hydraulics
GTIN 850597006936
Product SKU Maxim part number
Chief part number Prince-Wolverine part number
Prince-Magnum part number Eagle part number
WCL 4x30 288463
287066 WWCL4030-S
PC4030CL PC4030CL
Outer Dia. (?) 4.5 in
Rod Dia. (?) 2 in
Pin Dia. (?) 1 in
