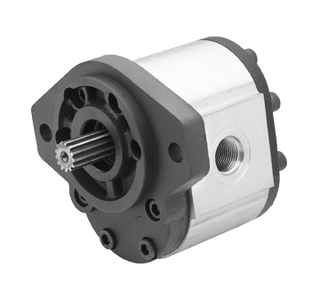

GP-F25 Hydraulic Gear Pumps

Constructed of an aluminum center section and cast-iron end plates, model GP-F25 is a high-pressure hydraulic gear pump with 10 displacement size from 1.34 - 5.43 in³/rev (22 - 89 cm³/rev). The standard mounting flange is a SAE "B" 2-Bolt. Standard drive shaft is a 7/8" diameter straight shaft with an 1/4" key. Additional shaft options are available.

GP-F25 Gear Pumps Spec Sheet
