Magister Hydraulics Hydraulic Gear Pumps

Hydraulic gear pumps are used in many places, such as construction machines, tractors, and factories. Which help to develop a flow by carrying the fluid between repeatedly enclosing interlocking gears, transferring it automatically using a cyclical pumping action.

Magister Hydraulic Gear Pump Main Applications:

Our gear pumps can be used for various series:

• Bobcat

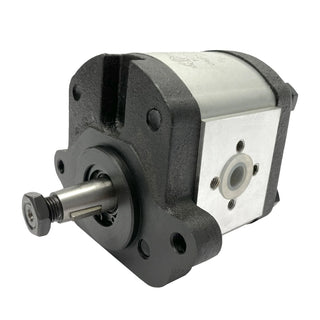

• Massey Ferguson
• John Deere
• Kubota

Gear Pumps in Stock:

• CID (Cubic Inches Displacement): 0.7 – 2.74

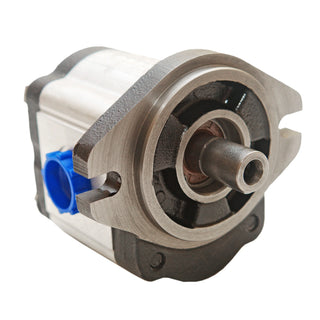

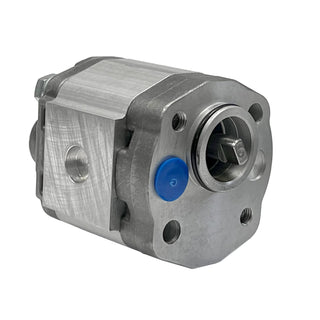

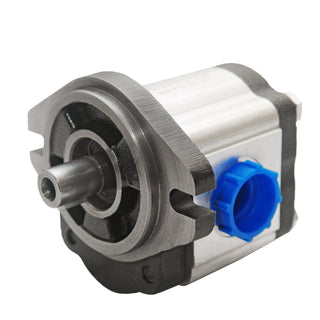

• Shaft Type: 13-Tooth Spline, ⅞” Keyed, ⅝” Keyed, ¾” Keyed, 9-Tooth Spline, Flat Tang
• Max RPM: 2500 – 4000 revolutions
• GPM @2000 RPM: 0.95 – 23.72 gallons
• Rotation Direction:Clockwise (CW, Right)/Counter-clockwise(CCW, Left)
• Mounting Flange: SAE B – 2 Bolts
• Outlet Port: SAE 10, SAE 12
• Inlet Port: SAE 12, SAE 16, NPT 3/8
• Material: Aluminium, Cast iron

Custom Options: Magister Hydraulics manufactures custom gear pumps of any complexity. All custom gear pumps we build are made according to customer requirements and needs. All custom gear pumps require minimum order quantity of 50 SKUs per order

Benefits:

Made in Europe, a tariff-free product with a 1-year warranty. We offer free FedEx ground shipping within the continental US.

Selecting a Hydraulic Gear Pump

When purchasing a hydraulic gear pump, key specifications to consider include:

• Pressure Rating (PSI)
• GPM (Flow Rate)
• CID/REV (Cubic Inch Displacement per Revolution)
• Rotation (CW or CCW)
• Flange
• Shaft Type and Diameter
