TRC 2x12 | 2" bore x 12" stroke tie rod hydraulic cylinder

by Magister Hydraulics
SKU: TRC 2x12
$155.00
TRC 2x12 | 2" bore x 12" stroke tie rod hydraulic cylinder - HTX Fluid Power
TRC 2x12 | 2" bore x 12" stroke tie rod hydraulic cylinder
TRC 2x12 | 2" bore x 12" stroke tie rod hydraulic cylinder
TRC 2x12 | 2" bore x 12" stroke tie rod hydraulic cylinder
TRC 2x12 | 2" bore x 12" stroke tie rod hydraulic cylinder
TRC 2x12 | 2" bore x 12" stroke tie rod hydraulic cylinder
TRC 2x12 | 2" bore x 12" stroke tie rod hydraulic cylinder - HTX Fluid Power
Fast shipping

Fast shipping to the continguous 48 states.

Easy returns

We offer a 30-day peace of mind returns.

Need help?

Need help? 24/7 Dedicated support.

TRC 2x12 | 2" bore x 12" stroke tie rod hydraulic cylinder

by Magister Hydraulics
SKU: TRC 2x12
$155.00

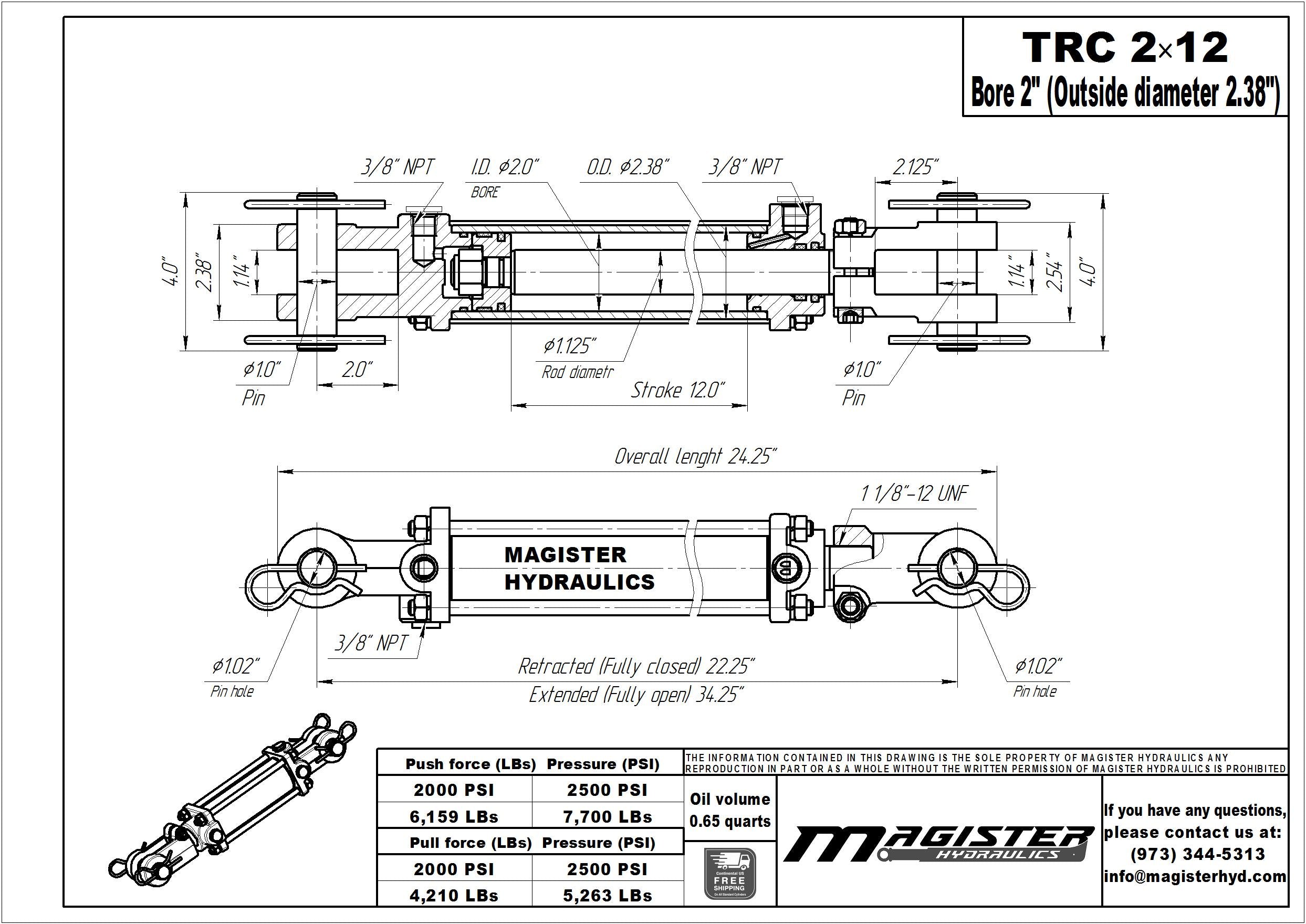

SPECIFICATIONS
Bore 2 in
Stroke 12 in
Port Size 3/8" NPT

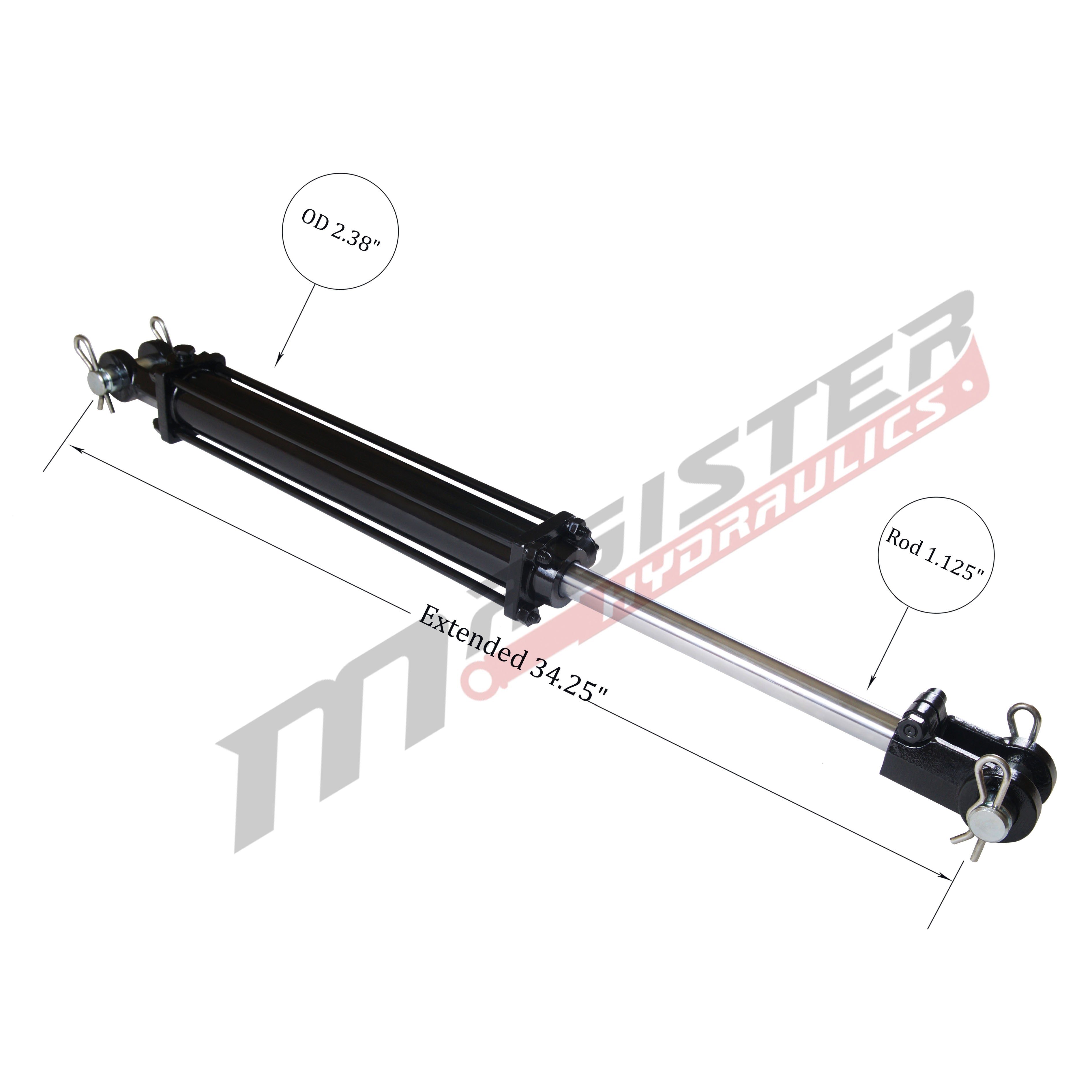

Extended 34.25 in

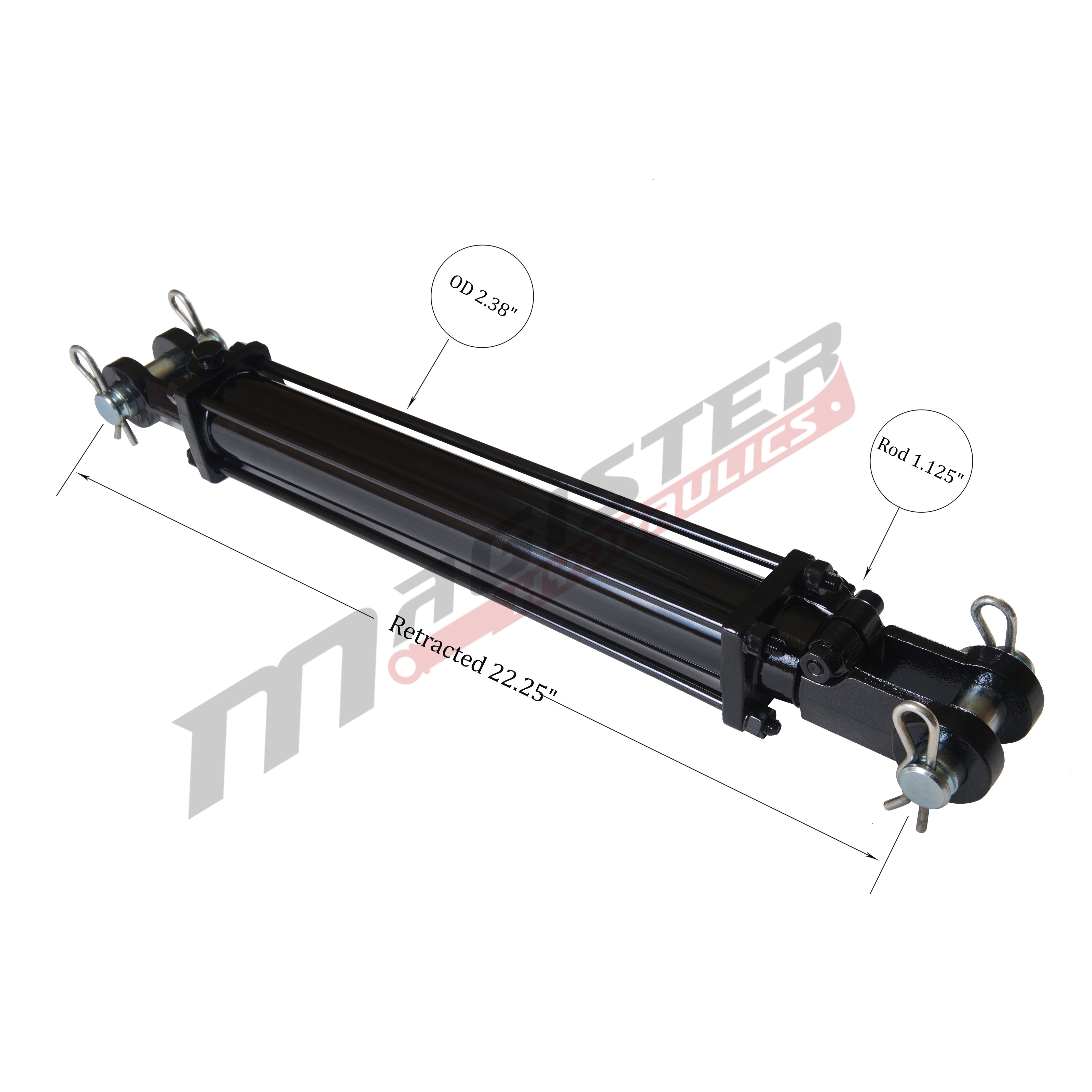

Retracted 22.25 in
Overall length 24.25 in
Pressure 2500 PSI
Column Load 7,850 LBs
Oil Volume 0.65 QTs
Design Tie Rod
Rod Type Chrome Plated

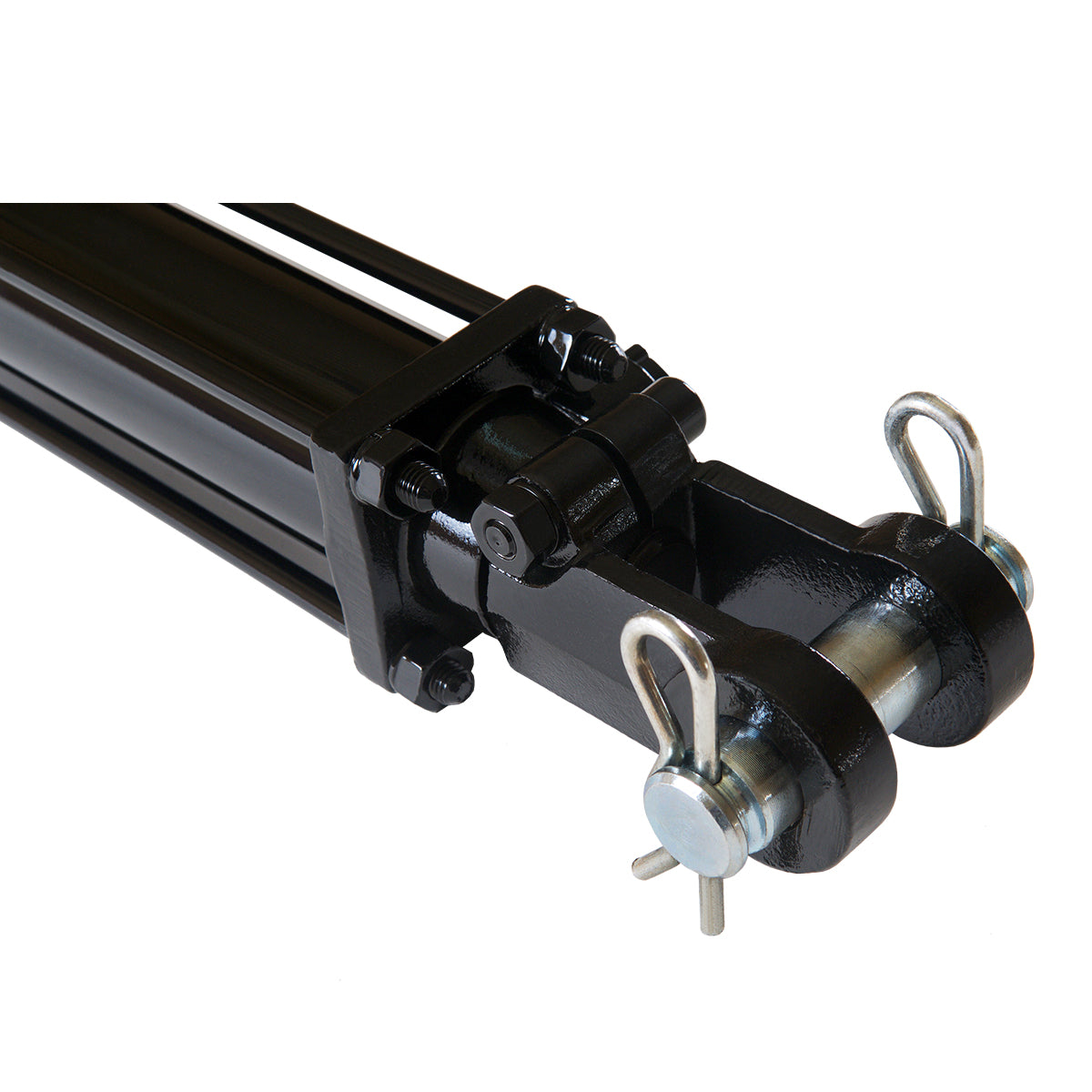

Rod End Clevis
Action Double Acting
Weight 22 LBs
Brand Magister Hydraulics
GTIN 854335007445
Outer Diameter 2.38 in
Rod Diameter 1.125 in
Pin Diameter 1 in
