WLD 2x22.75 | 2" bore x 22.75" stroke loader hydraulic cylinder

by Magister Hydraulics
SKU: WLD 2x22.75
$235.00
WLD 2x22.75 | 2" bore x 22.75" stroke loader hydraulic cylinder - HTX Fluid Power
WLD 2x22.75 | 2" bore x 22.75" stroke loader hydraulic cylinder
WLD 2x22.75 | 2" bore x 22.75" stroke loader hydraulic cylinder
WLD 2x22.75 | 2" bore x 22.75" stroke loader hydraulic cylinder
WLD 2x22.75 | 2" bore x 22.75" stroke loader hydraulic cylinder
WLD 2x22.75 | 2" bore x 22.75" stroke loader hydraulic cylinder
WLD 2x22.75 | 2" bore x 22.75" stroke loader hydraulic cylinder - HTX Fluid Power
Fast shipping

Fast shipping to the continguous 48 states.

Easy returns

We offer a 30-day peace of mind returns.

Need help?

Need help? 24/7 Dedicated support.

WLD 2x22.75 | 2" bore x 22.75" stroke loader hydraulic cylinder

by Magister Hydraulics
SKU: WLD 2x22.75
$235.00

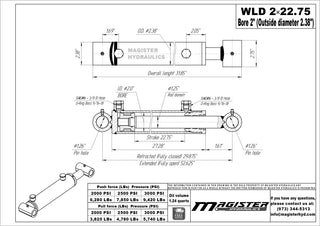

SPECIFICATIONS
Bore 2 in
Stroke 22.75 in
Port Size SAE 6

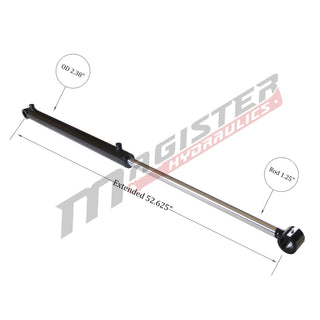

Extended 52.625 in
Retracted 29.875 in
Overall length 31.875 in
Pressure 3500 PSI
Column Load 9,400 LBs
Oil Volume 1.24 QTs
Design Welded
Rod Type Chrome Plated
Rod End Cross Tube
Action Double Acting
Weight 25 LBs
Brand Magister Hydraulics
GTIN 854335007933
Outer Diameter 2.37 in
Rod Diameter 1.25 in
Pin Diameter 1.25 in
