WCT 3x10 | 3" bore x 10" stroke cross tube hydraulic cylinder

by Magister Hydraulics
SKU: WCT 3x10
$266.00
WCT 3x10 | 3" bore x 10" stroke cross tube hydraulic cylinder - HTX Fluid Power
WCT 3x10 | 3" bore x 10" stroke cross tube hydraulic cylinder
WCT 3x10 | 3" bore x 10" stroke cross tube hydraulic cylinder
WCT 3x10 | 3" bore x 10" stroke cross tube hydraulic cylinder
WCT 3x10 | 3" bore x 10" stroke cross tube hydraulic cylinder
WCT 3x10 | 3" bore x 10" stroke cross tube hydraulic cylinder
WCT 3x10 | 3" bore x 10" stroke cross tube hydraulic cylinder - HTX Fluid Power
Fast shipping

Fast shipping to the continguous 48 states.

Easy returns

We offer a 30-day peace of mind returns.

Need help?

Need help? 24/7 Dedicated support.

WCT 3x10 | 3" bore x 10" stroke cross tube hydraulic cylinder

by Magister Hydraulics
SKU: WCT 3x10
$266.00

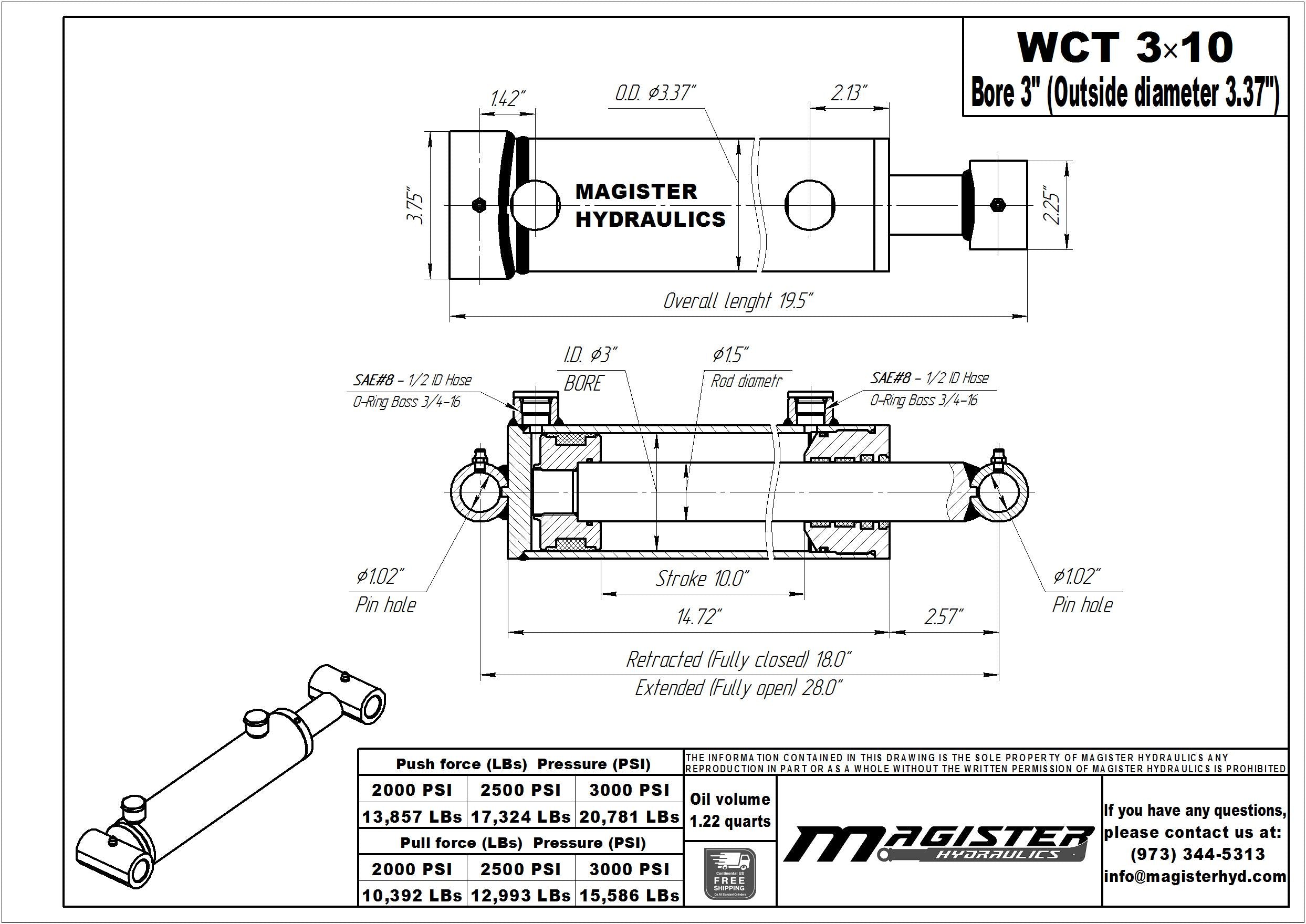

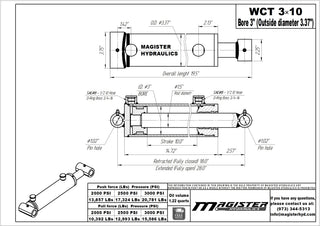

SPECIFICATIONS
Bore 3 in
Stroke 10 in
Port Size SAE 8

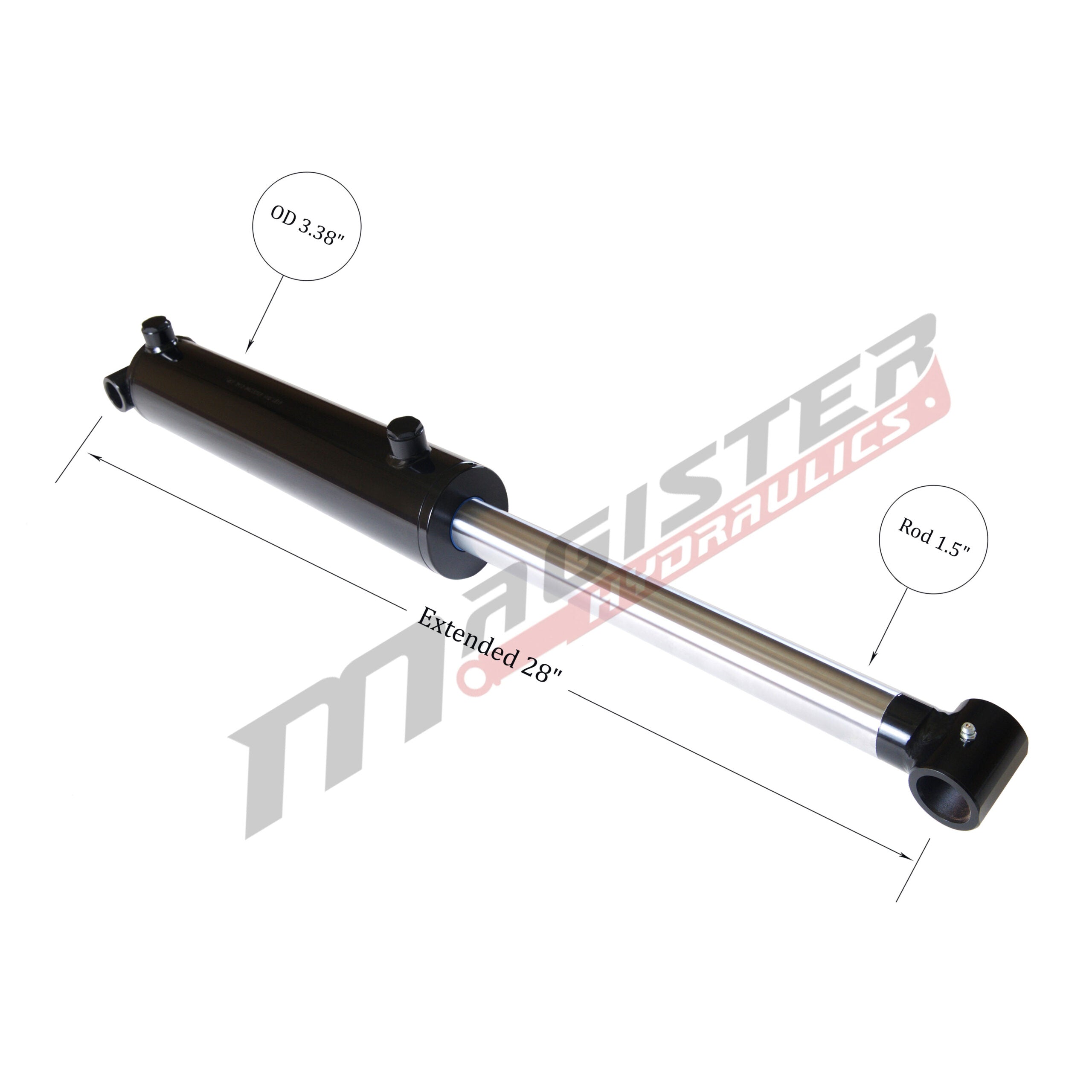

Extended 28 in

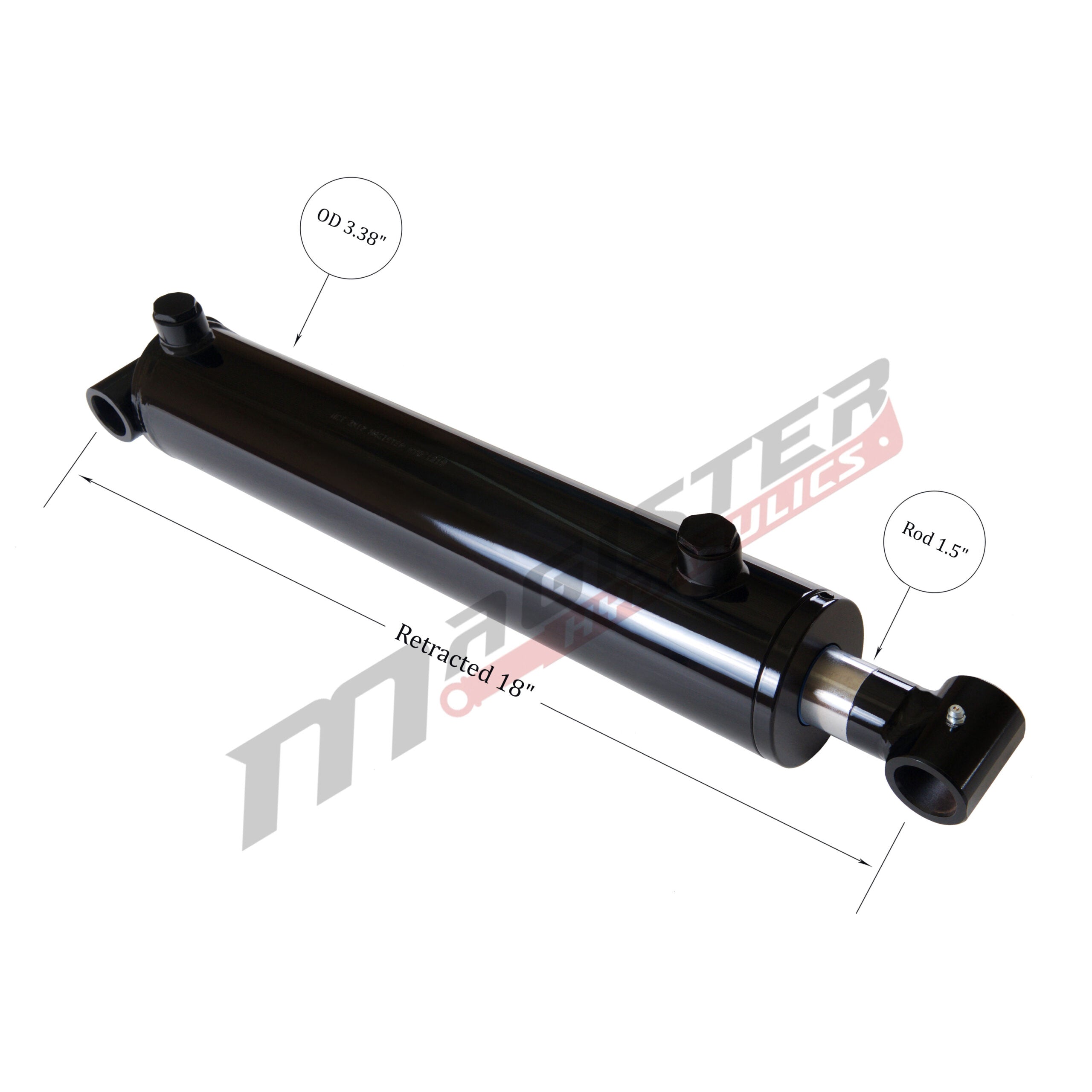

Retracted 18 in
Overall length 19.5 in
Pressure 3500 PSI
Column Load 21,000 LBs
Oil Volume 1.22 QTs
Design Welded
Rod Type Chrome Plated

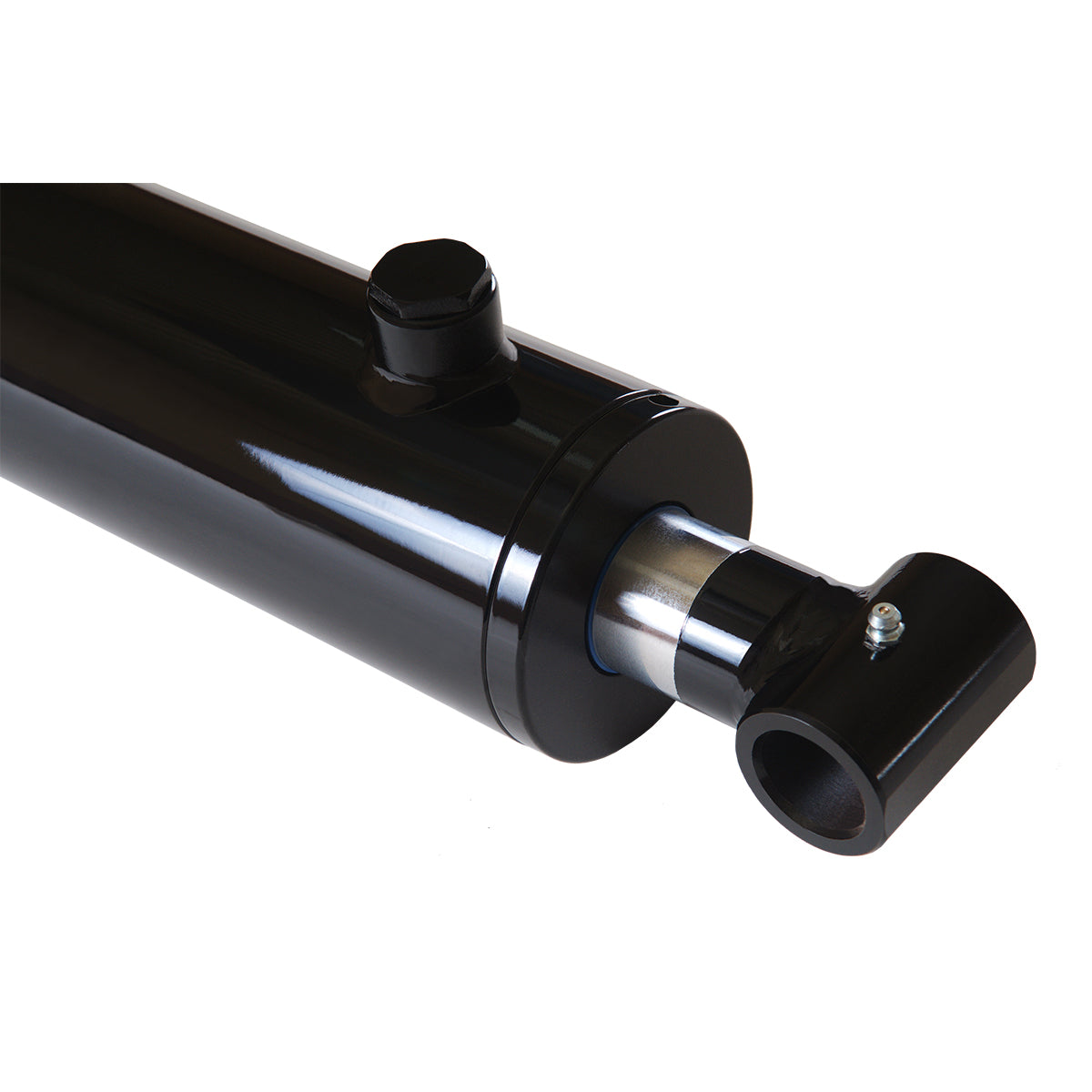

Rod End Cross Tube
Action Double Acting
Weight 24 LBs
Brand Magister Hydraulics
GTIN 850597006134
Product SKU Maxim part number
Chief part number Prince-Wolverine part number
Prince-Magnum part number Eagle part number
WCT 3x10 288336
212729 WWXT3010-S
PC3010XL HBU3010-ORB
Outer Dia. (?) 3.37 in
Rod Dia. (?) 1.5 in
Pin Dia. (?) 1 in
