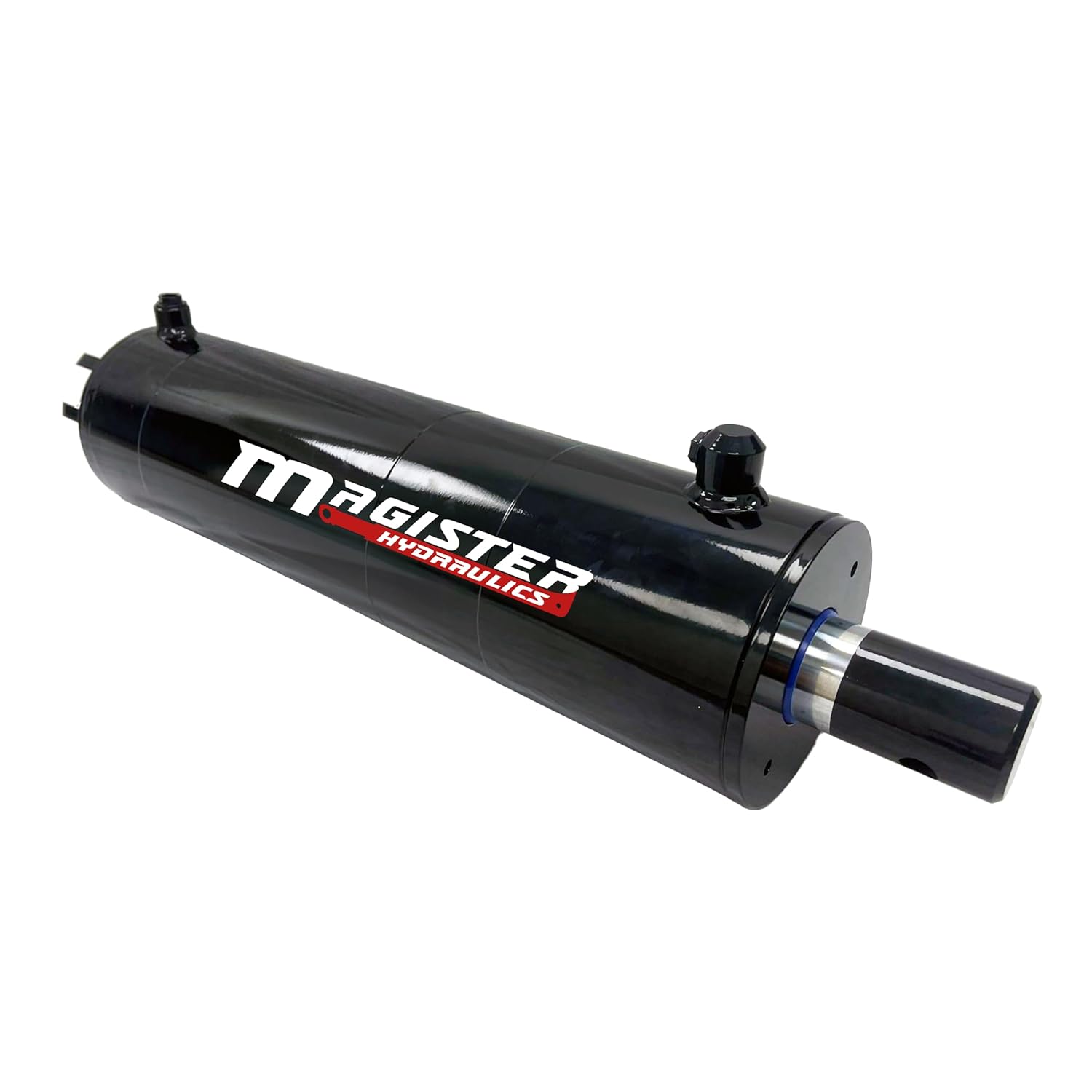

HTC 5x15.75 | 5" bore x 15.75" stroke Dump Hoist Hydraulic Cylinder

by Magister Hydraulics
SKU: HTC 5x15.75
$449.00
HTC 5x15.75 | 5" bore x 15.75" stroke Dump Hoist Hydraulic Cylinder - HTX Fluid Power
HTC 5x15.75 | 5" bore x 15.75" stroke Dump Hoist Hydraulic Cylinder
HTC 5x15.75 | 5" bore x 15.75" stroke Dump Hoist Hydraulic Cylinder
HTC 5x15.75 | 5" bore x 15.75" stroke Dump Hoist Hydraulic Cylinder
HTC 5x15.75 | 5" bore x 15.75" stroke Dump Hoist Hydraulic Cylinder
HTC 5x15.75 | 5" bore x 15.75" stroke Dump Hoist Hydraulic Cylinder
HTC 5x15.75 | 5" bore x 15.75" stroke Dump Hoist Hydraulic Cylinder
HTC 5x15.75 | 5" bore x 15.75" stroke Dump Hoist Hydraulic Cylinder - HTX Fluid Power
Fast shipping

Fast shipping to the continguous 48 states.

Easy returns

We offer a 30-day peace of mind returns.

Need help?

Need help? 24/7 Dedicated support.

HTC 5x15.75 | 5" bore x 15.75" stroke Dump Hoist Hydraulic Cylinder

by Magister Hydraulics
SKU: HTC 5x15.75
$449.00

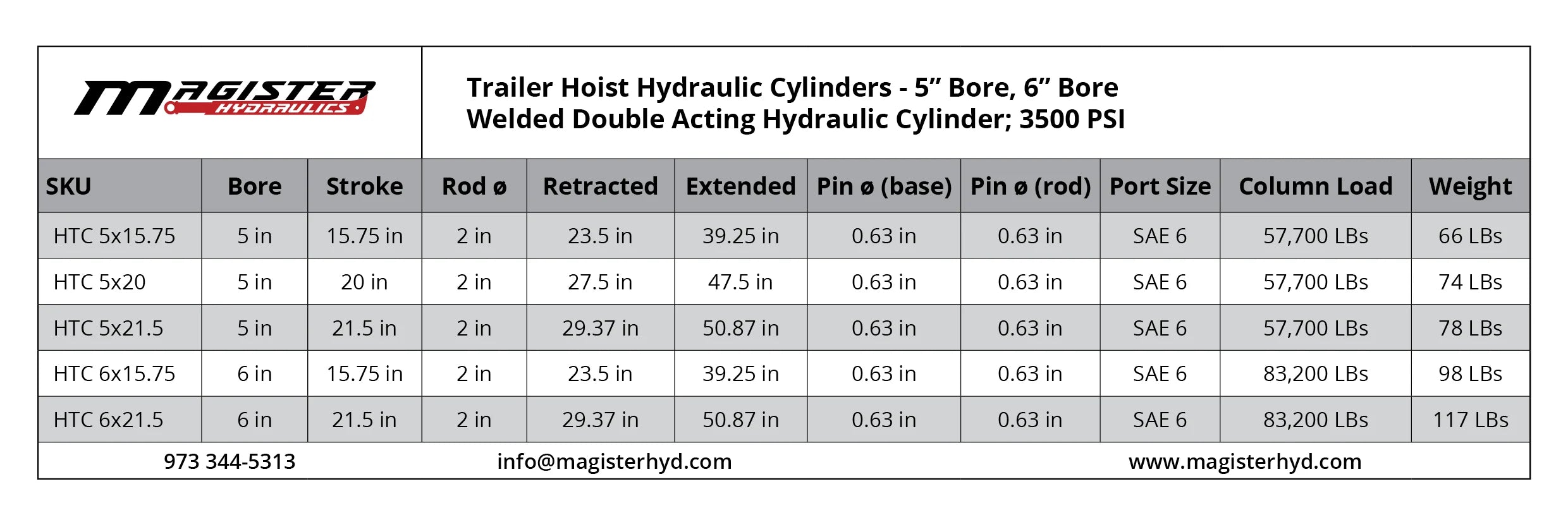

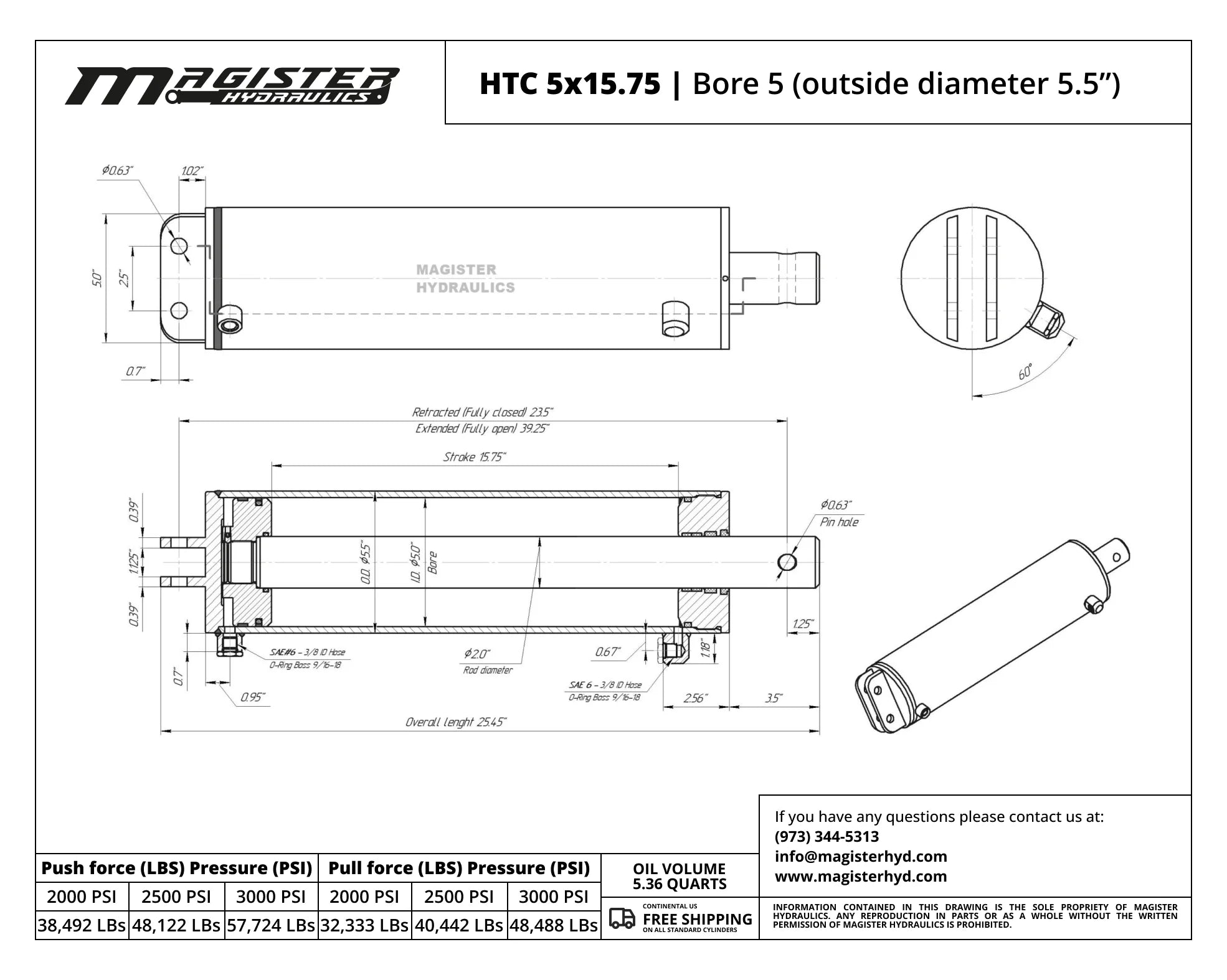

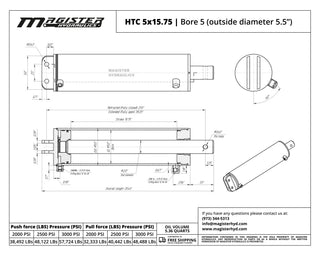

SPECIFICATIONS
Bore 5 in
Stroke 15.75 in
Port Size SAE 6

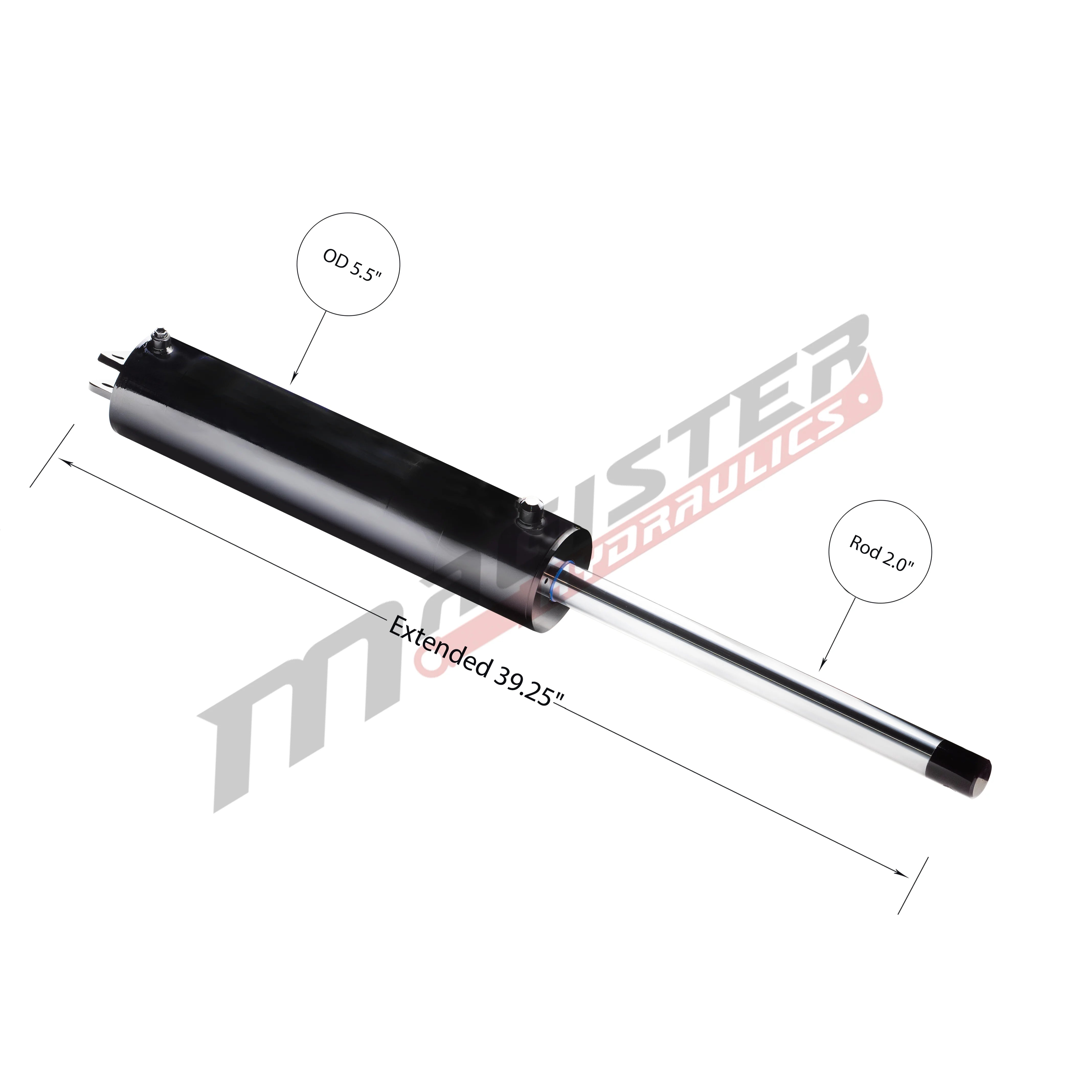

Extended 39.25 in

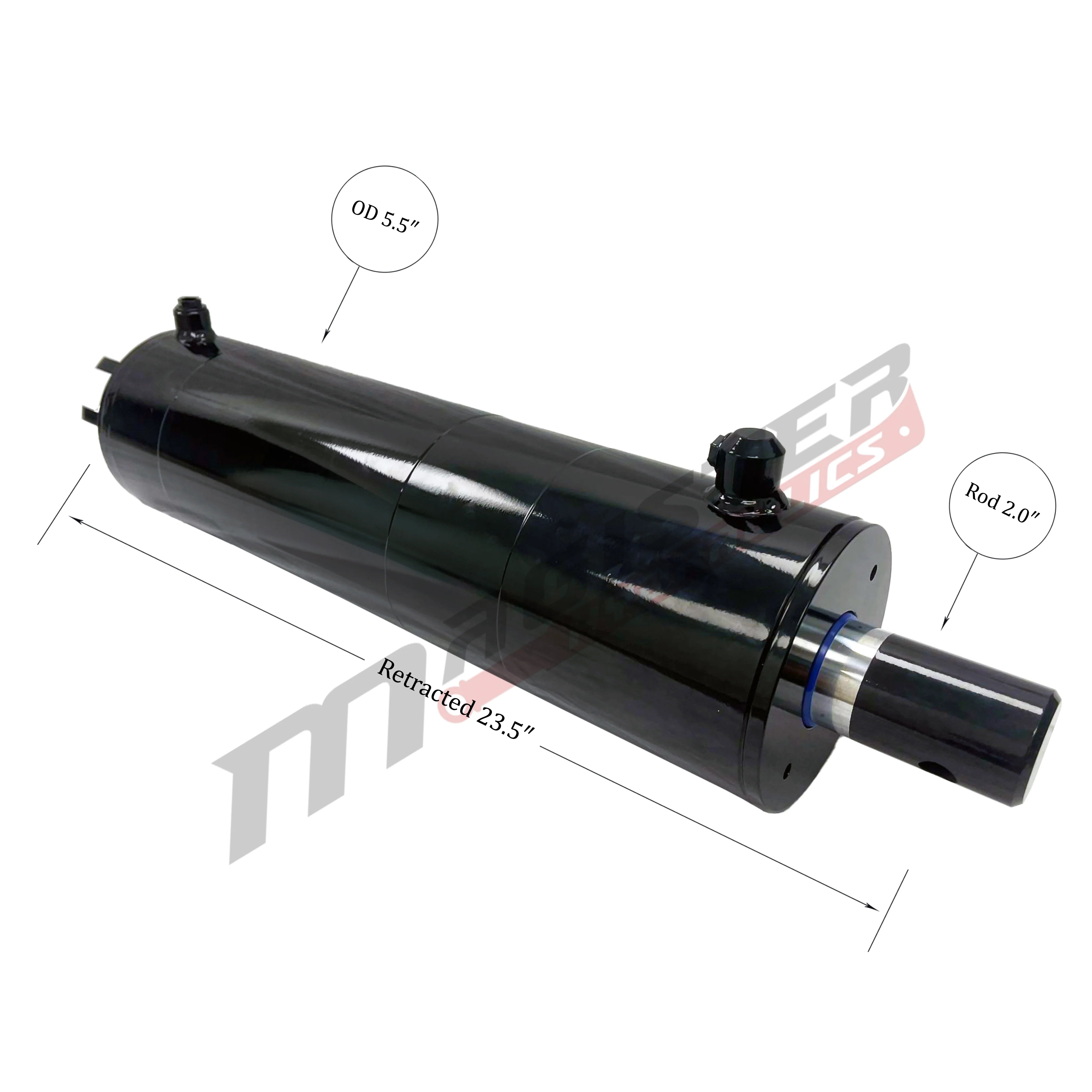

Retracted 23.5 in
Overall length 25.45 in
Pressure 3500 PSI
Column Load 57,724 LBs
Oil Volume 5.36 QTs
Design Welded
Rod Type Chrome Plated
Rod End Pin Hole
Action Double Acting
Weight 66 LBs
Brand Magister Hydraulics
GTIN 850054386038
Outer Diameter 5.5 in
Rod Diameter 2 in
Pin Diameter 0.63 in
