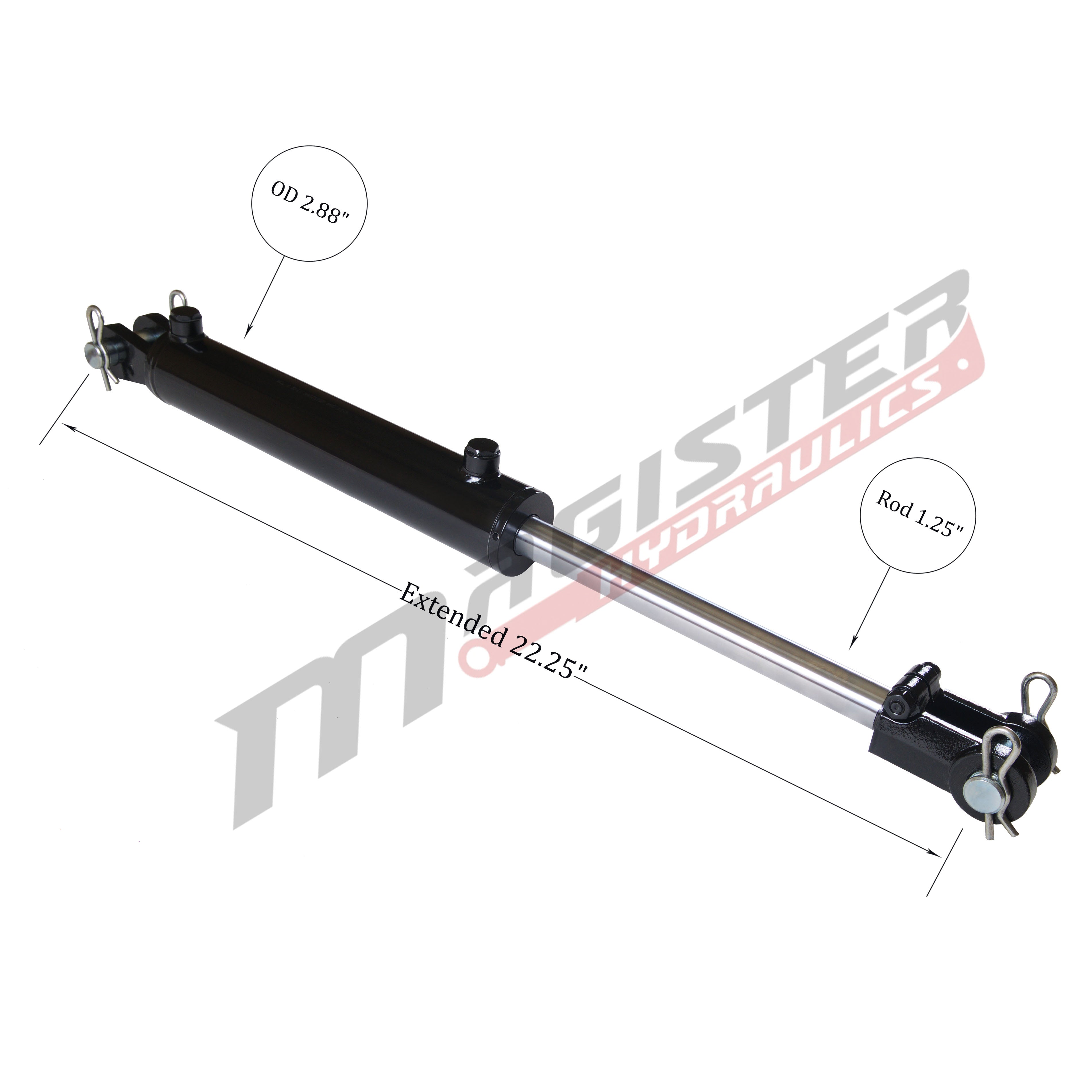

WCL 2.5x6 | 2.5" bore x 6" stroke clevis hydraulic cylinder

by Magister Hydraulics
SKU: WCL 2.5x6
$212.00
WCL 2.5x6 | 2.5" bore x 6" stroke clevis hydraulic cylinder - HTX Fluid Power
WCL 2.5x6 | 2.5" bore x 6" stroke clevis hydraulic cylinder
WCL 2.5x6 | 2.5" bore x 6" stroke clevis hydraulic cylinder
WCL 2.5x6 | 2.5" bore x 6" stroke clevis hydraulic cylinder
WCL 2.5x6 | 2.5" bore x 6" stroke clevis hydraulic cylinder
WCL 2.5x6 | 2.5" bore x 6" stroke clevis hydraulic cylinder
WCL 2.5x6 | 2.5" bore x 6" stroke clevis hydraulic cylinder - HTX Fluid Power
Fast shipping

Fast shipping to the continguous 48 states.

Easy returns

We offer a 30-day peace of mind returns.

Need help?

Need help? 24/7 Dedicated support.

WCL 2.5x6 | 2.5" bore x 6" stroke clevis hydraulic cylinder

by Magister Hydraulics
SKU: WCL 2.5x6
$212.00

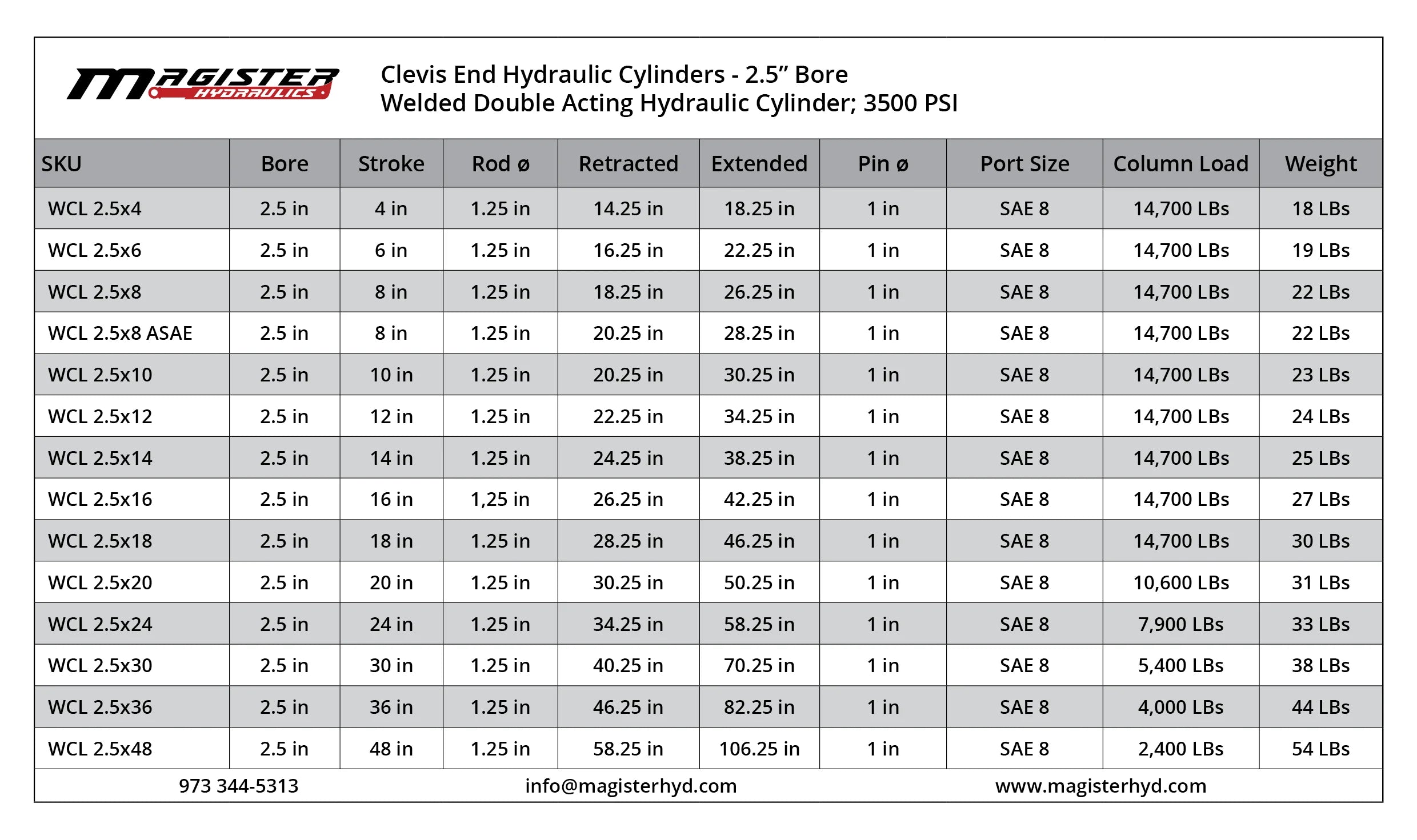

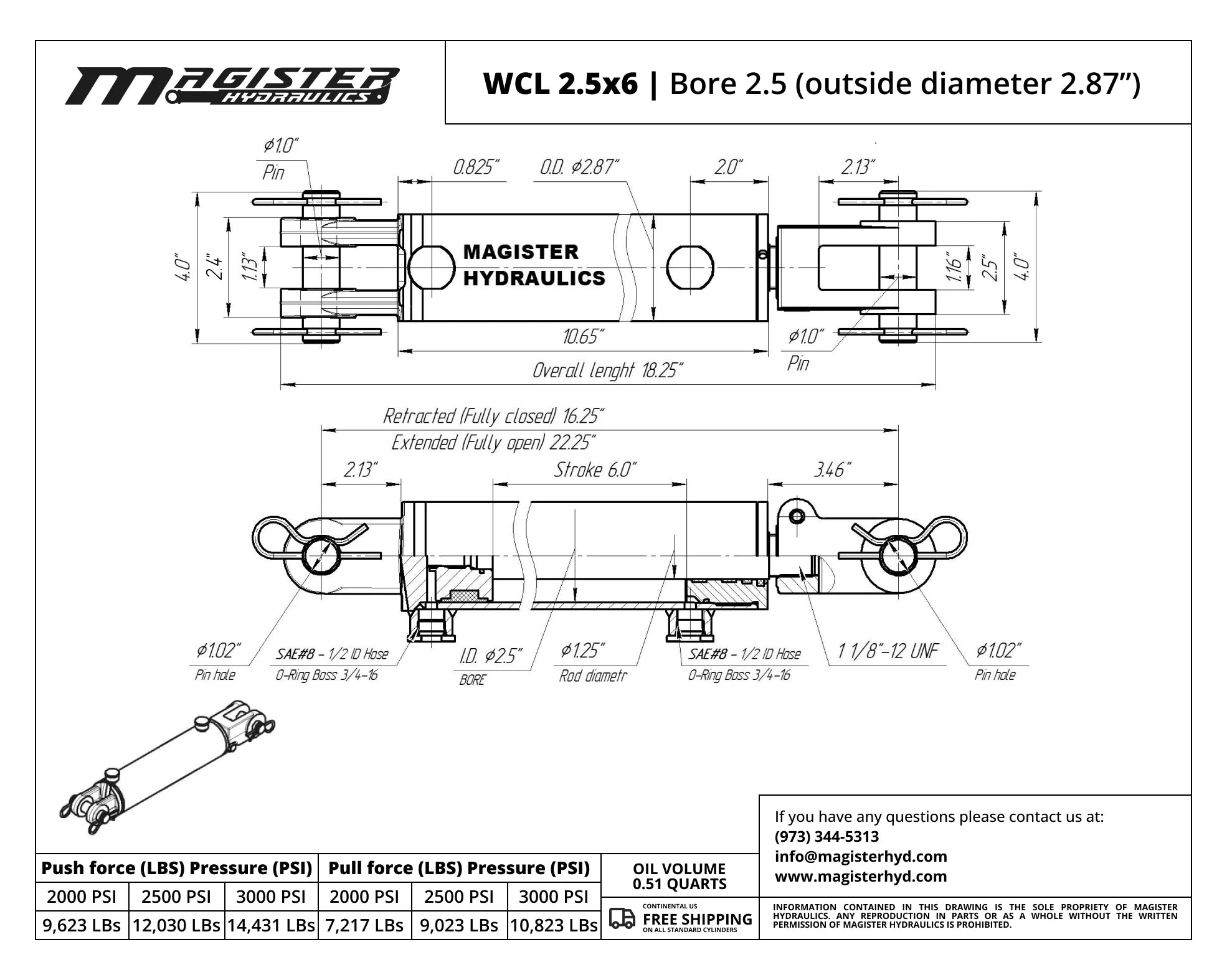

SPECIFICATIONS
Bore 2.5 in
Stroke 6 in
Port Size SAE 8
Extended 22.25 in

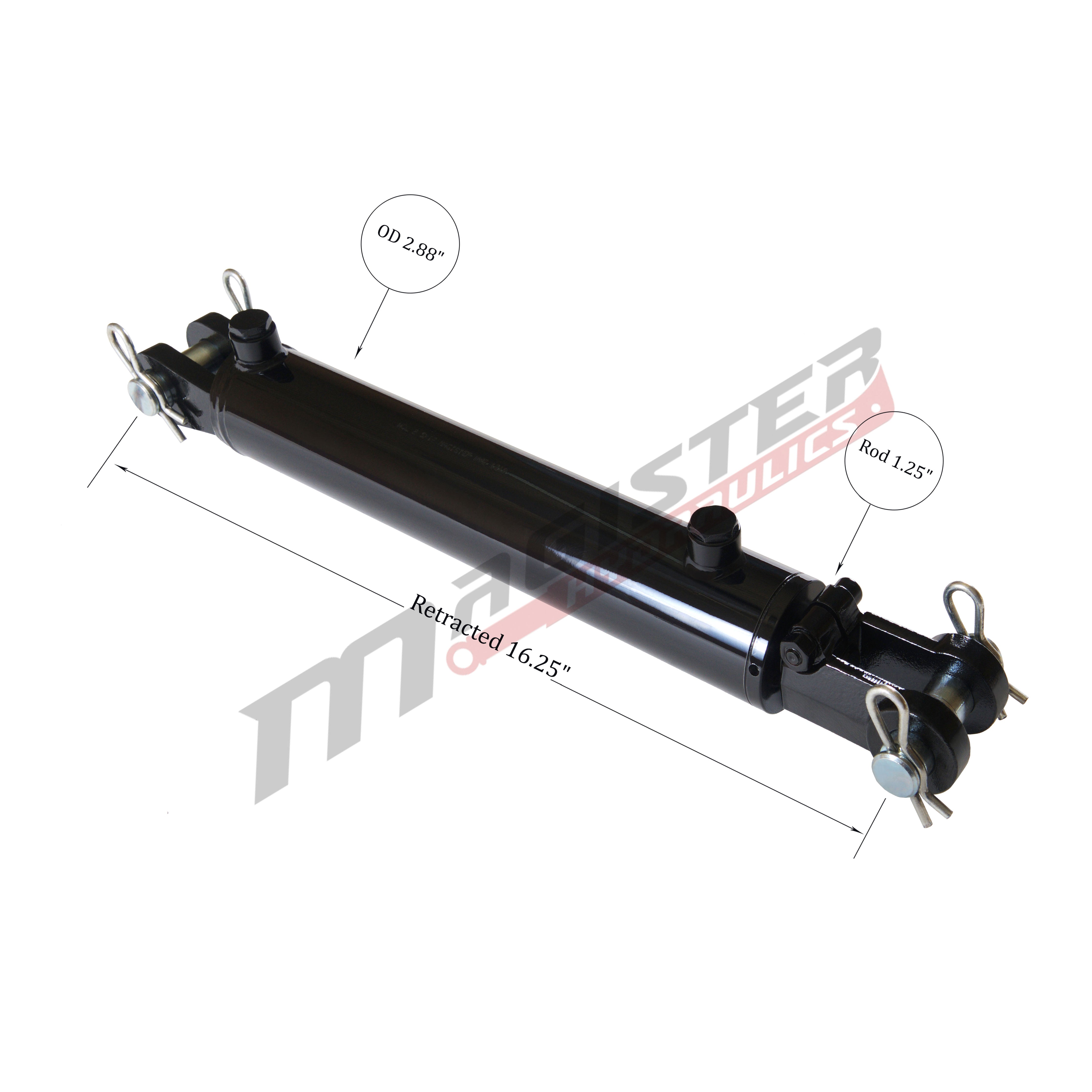

Retracted 16.25 in
Overall length 18.25 in
Pressure 3500 PSI
Column Load 14,700 LBs
Oil Volume 0.51 QTs
Design Welded
Rod Type Chrome Plated

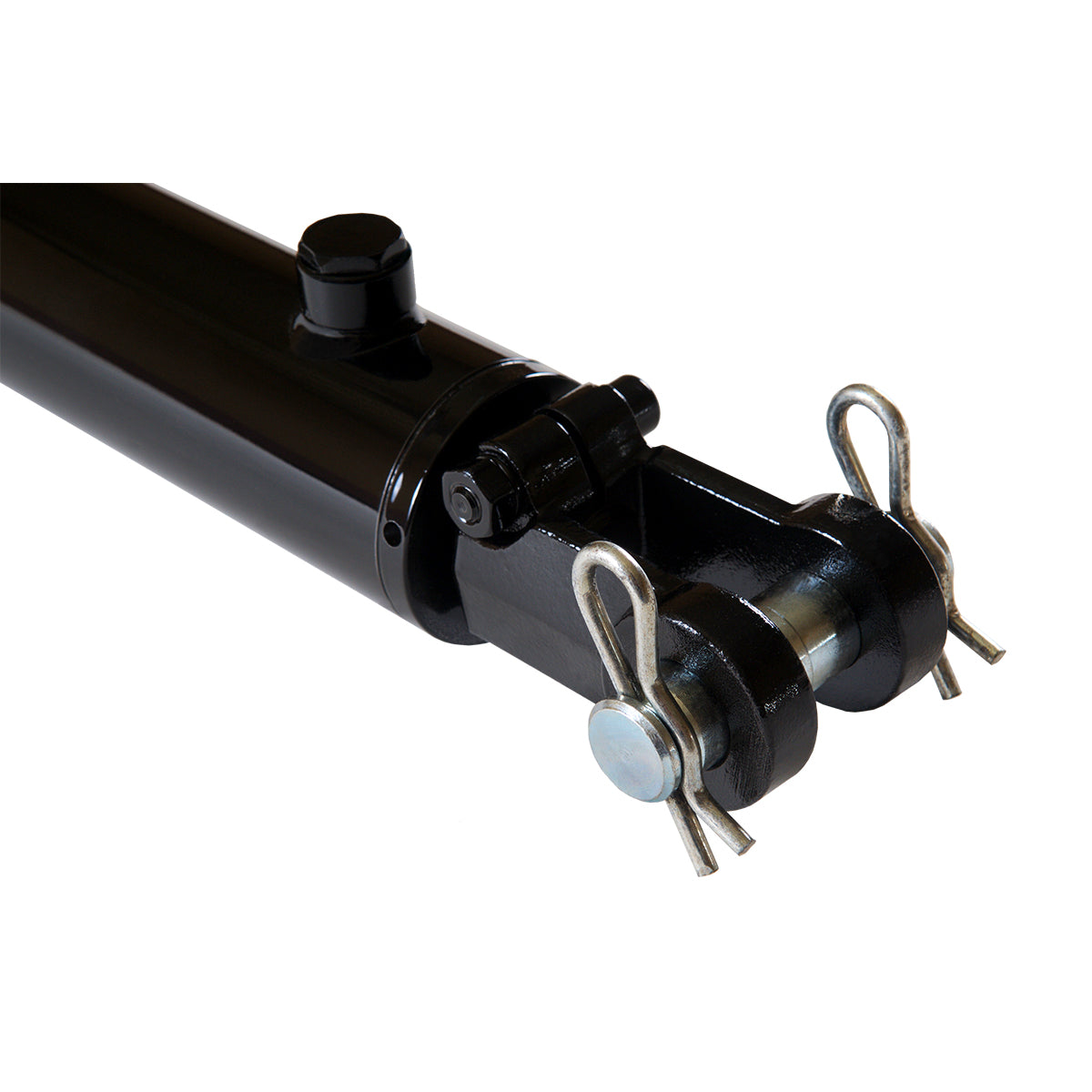

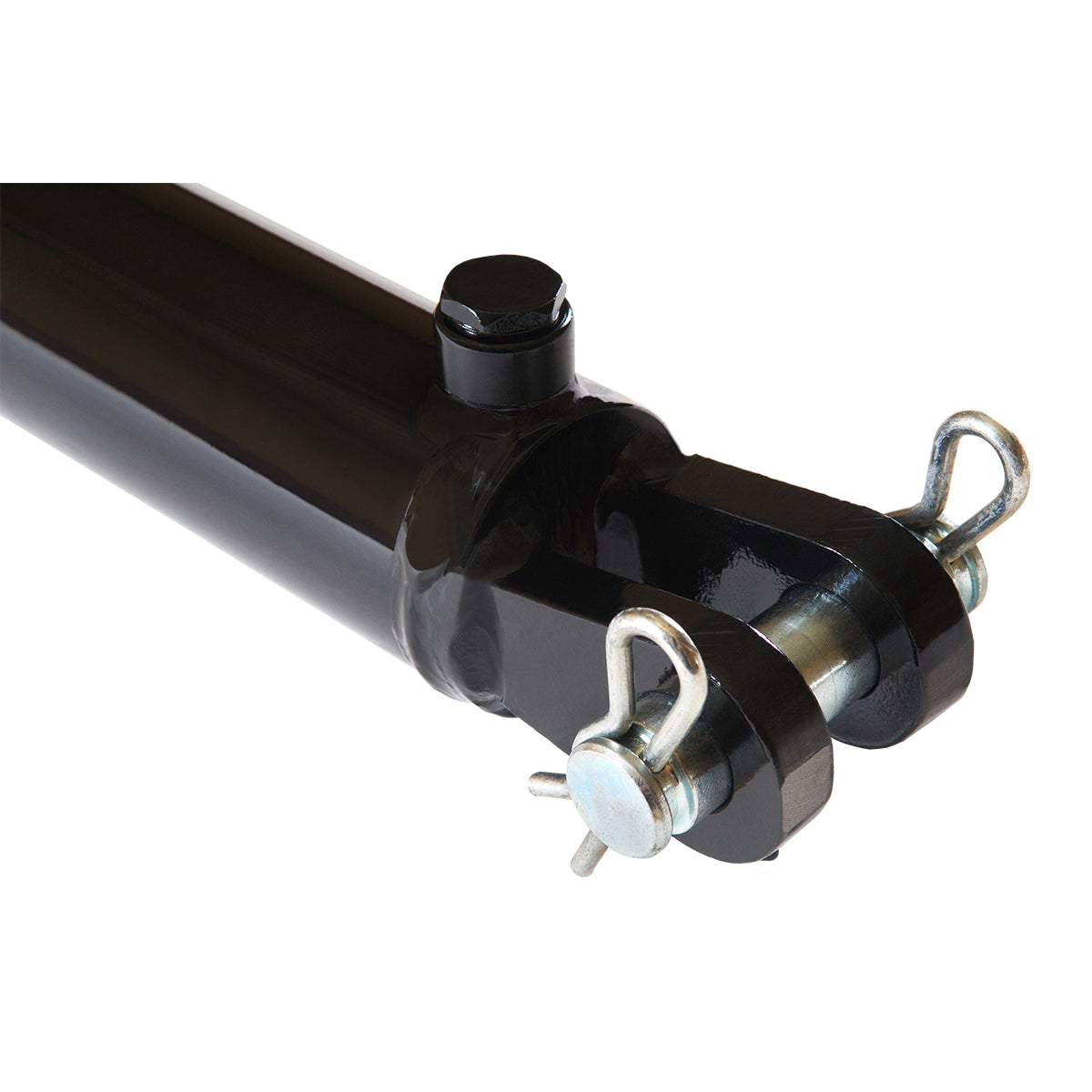

Rod End Clevis
Action Double Acting
Weight 19 LBs
Brand Magister Hydraulics
GTIN 857743006161
Outer Diameter 2.87 in
Rod Diameter 1.25 in
Pin Diameter 1 in
