WCL 2.5x8 ASAE | 2.5" bore x 8" ASAE stroke clevis hydraulic cylinder

by Magister Hydraulics
SKU: WCL 2.5x8 ASAE
$217.00
WCL 2.5x8 ASAE | 2.5" bore x 8" ASAE stroke clevis hydraulic cylinder - HTX Fluid Power
WCL 2.5x8 ASAE | 2.5" bore x 8" ASAE stroke clevis hydraulic cylinder
WCL 2.5x8 ASAE | 2.5" bore x 8" ASAE stroke clevis hydraulic cylinder
WCL 2.5x8 ASAE | 2.5" bore x 8" ASAE stroke clevis hydraulic cylinder
WCL 2.5x8 ASAE | 2.5" bore x 8" ASAE stroke clevis hydraulic cylinder
WCL 2.5x8 ASAE | 2.5" bore x 8" ASAE stroke clevis hydraulic cylinder
WCL 2.5x8 ASAE | 2.5" bore x 8" ASAE stroke clevis hydraulic cylinder - HTX Fluid Power
Fast shipping

Fast shipping to the continguous 48 states.

Easy returns

We offer a 30-day peace of mind returns.

Need help?

Need help? 24/7 Dedicated support.

WCL 2.5x8 ASAE | 2.5" bore x 8" ASAE stroke clevis hydraulic cylinder

by Magister Hydraulics
SKU: WCL 2.5x8 ASAE
$217.00

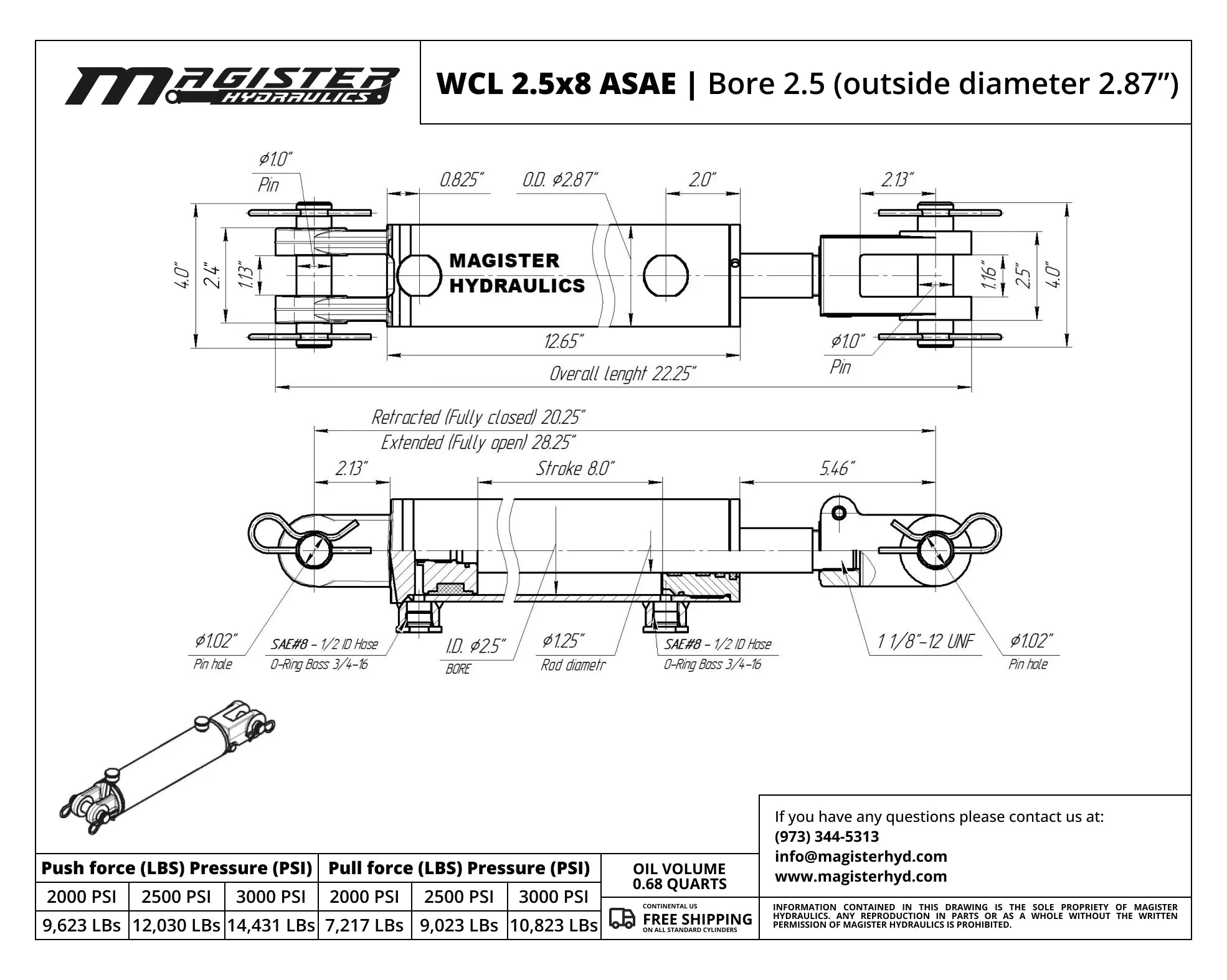

SPECIFICATIONS
Bore 2.5 in
Stroke 8 in ASAE
Port Size SAE 8

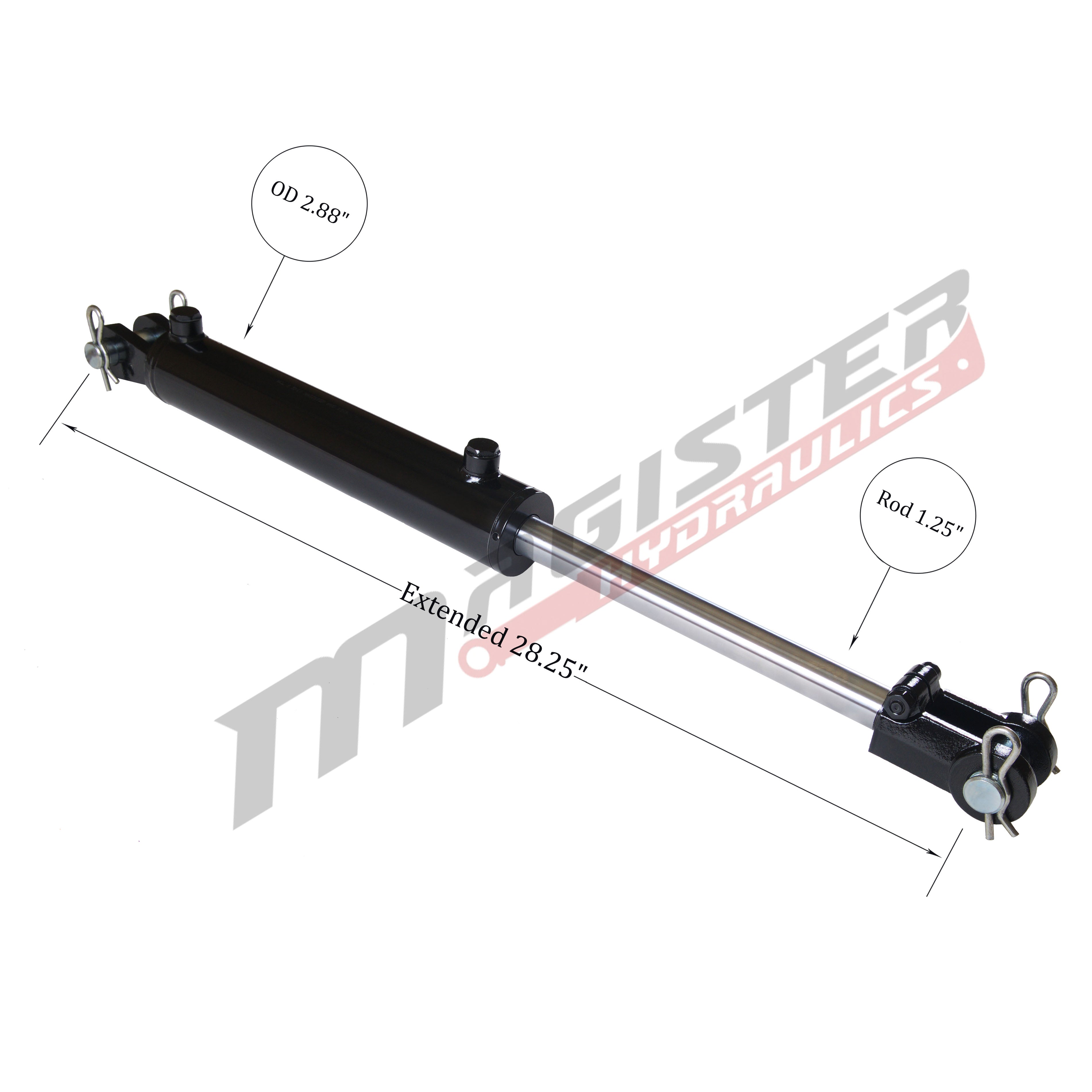

Extended 28.25 in

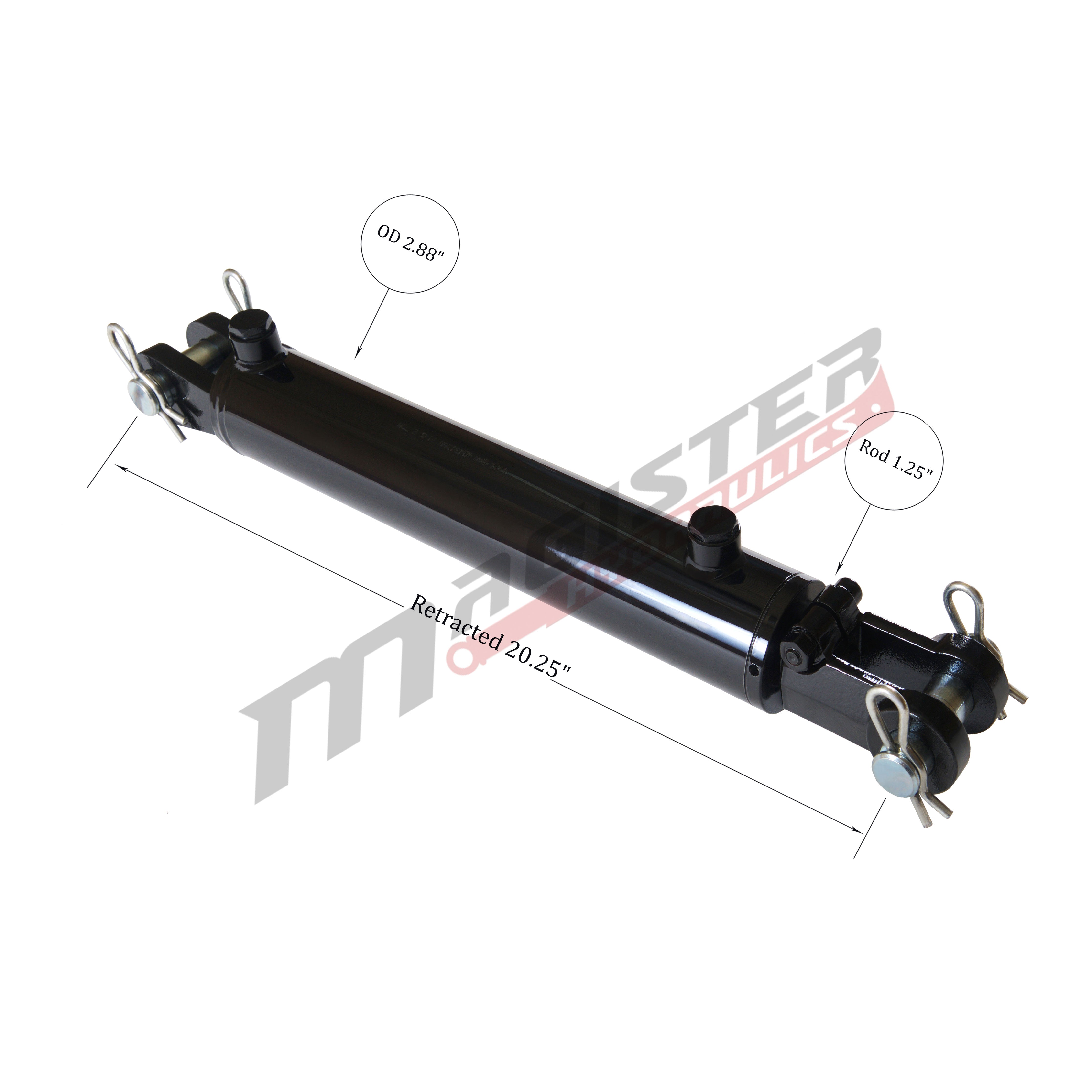

Retracted 20.25 in
Overall length 22.25 in
Pressure 3500 PSI
Column Load 14,700 LBs
Oil Volume 0.68 QTs
Design Welded
Rod Type Chrome Plated

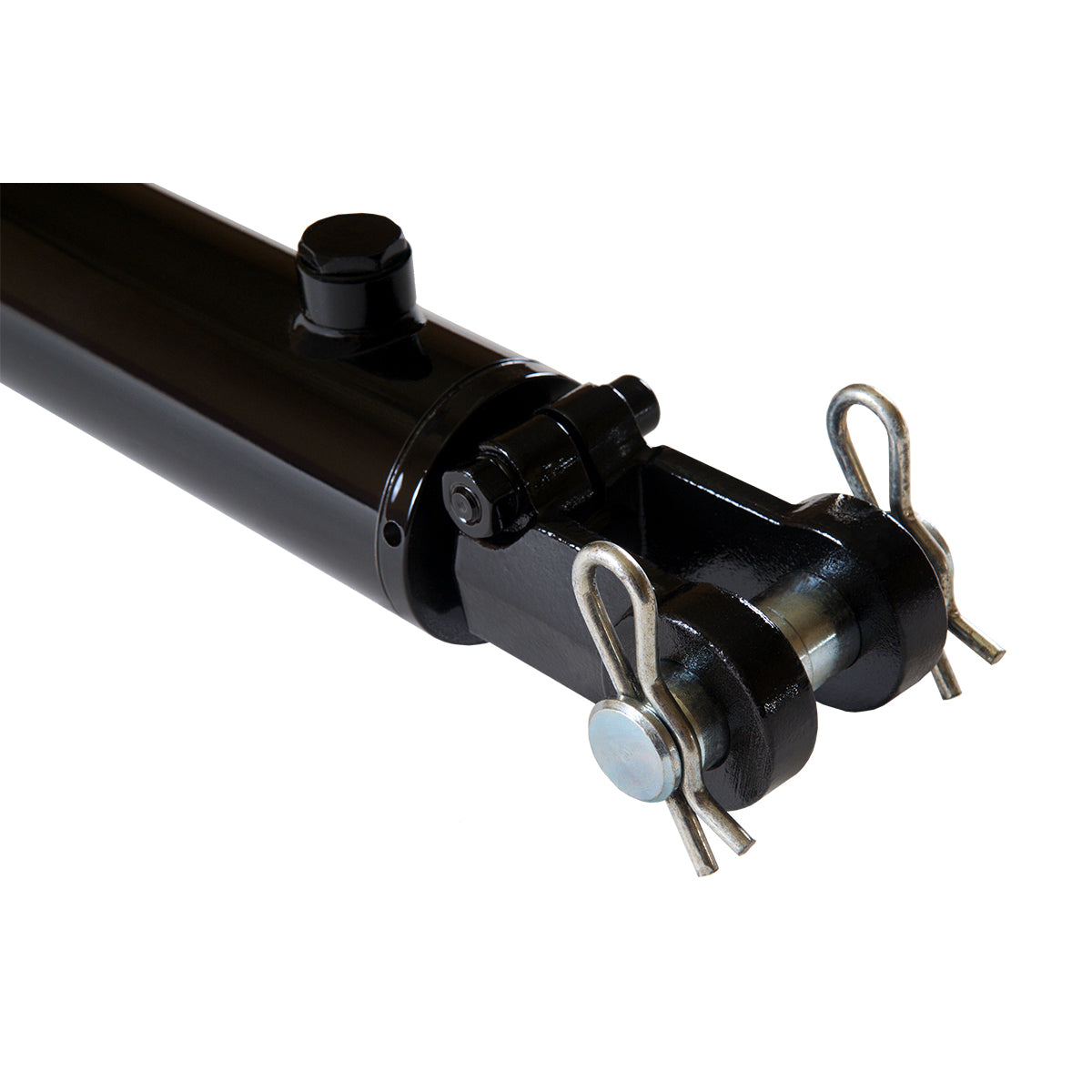

Rod End Clevis
Action Double Acting
Weight 22 LBs
Brand Magister Hydraulics
GTIN 850597006431
Product SKU Maxim part number
Chief part number Prince-Wolverine part number
Prince-Magnum part number Eagle part number
WCL 2.5x8 ASAE 288415
287018 WWCL2508-ASAE
PC2508CL-ASAE HTG2508-ASAE-ORB
Outer Dia. (?) 2.87 in
Rod Dia. (?) 1.25 in
Pin Dia. (?) 1 in
