2 Piece Ball Valves

Features:

  • Suitable Mediums: Water, Oil and Gas. (WOG)
  • Seats & Seals: PTFE (Teflon)
  • Threads: Female NPT (Female National Pipe Thread)
  • Full Port: Full Bore Ball Valve (ID remains the same size as the pipe)
  • Handle: Blow-Out Proof
  • Handle Locking Mechanism: handle equipped with locking device (Removable)

Performance Specifications:

  • Pressure Rating: 1000 PSI (6.4MPa) Making them suitable for most applications.
  • Temperature: -13⁰F to 302⁰F (-25°C to 150°C)
  • Shell Test: 9.6MPa
  • Seat Test: 0.6MPa

General Characteristics:

  • Also called a two-way ball valve, since it allows flow straight through from both directions.
  • The 2-piece ball valve is a full port valve, which means the ID of the pipe remains constant throughout, once the valve is installed in line.
  • These are the most widely used in all industries due to their low cost, ease of use and durability.
  • No tooling is needed, and they can thread directly onto the pipe.

Material components:

  • Valve Body: is composed out of Stainless Steel 316 (CF8M)
  • Seats & Seals: are made out of Teflon (PTFE)
  • Compatability: Good for any substances that are compatible with Stainless Steel and Teflon (PTFE)
  • Non-wetted parts that do not touch the material being transported are Stainless Steel 304.

General Dimensions:

  • The size of the pipe determines the size of the ball valve required. (2" Pipe will need a 2" ball valve etc.)
  • These threaded ball valves require no tools to install. (The Female NPT of the valve will screw directly onto a Pipe with Male NPT)
  • Two styles of 2-piece ball valves are available:
  • Compact Style: Ideal for tight spaces or where budget is a concern.

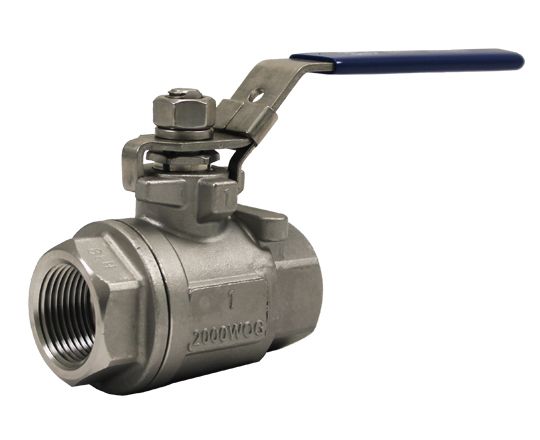

  • Heavy Duty Style: Slightly larger and heavier and has a larger handle.

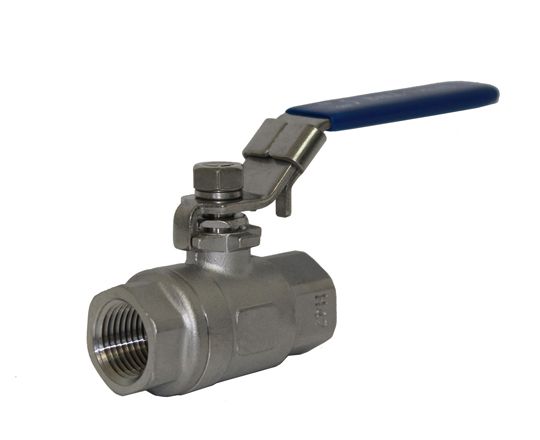

Compact Style (304 and 316)

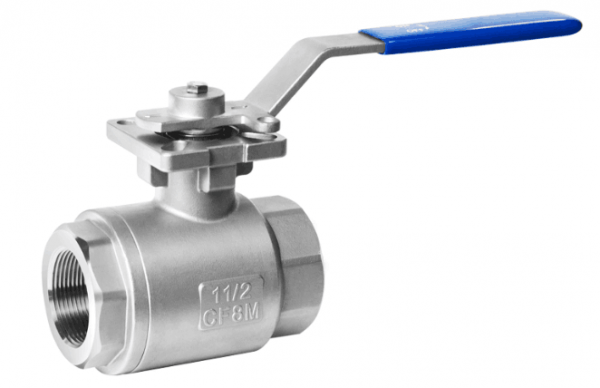

Heavy Duty Style (316)

Pressure Chart:

Design Data:

  • Casting: Investment Casting (AD2000-WO)
  • Dimension Standards: According to DIN299/259; ISO228-1; JIS B0203; ISO7/1
  • Threads: ASME B1.20.1 BS21 DIN299/259
  • Approvals: CE0035
  • Inspections and Testing: According to EN12266-1, API 598
