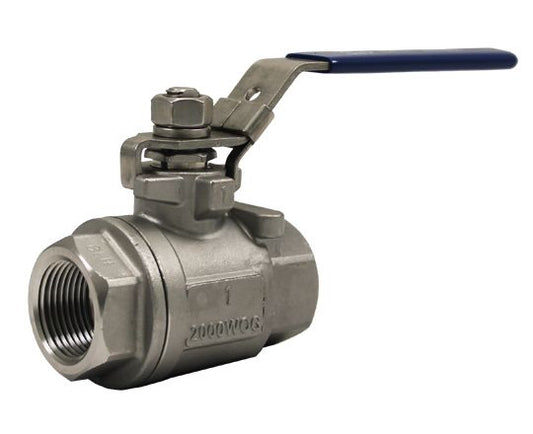

2000 PSI Ball Valve (316SS)

Features:

  • Mediums: Water, Oil & Gas. (WOG)
  • Seats & Seals: Teflon (PTFE)
  • Threads: Female NPT (National Pipe Thread)
  • Full Port: Full Port Ball Valve
  • Handle: Blow-Out Proof
  • Handle Locking Mechanism: handle equipped with locking device (Removable)

Performance Specifications:

  • Pressure Rating: 1000 PSI (6.4MPa) Making them suitable for most applications.
  • Temperature: -13⁰F to 302⁰F (-25°C to 150°C)
  • Shell Test: 9.6MPa
  • Seat Test: 0.6MPa

General Characteristics:

  • Designed for high pressure applications, these valves have double the pressure rating than our standard offerings.
  • The Valve Body is Heavier, longer and more robust than other 2-Piece ball valves.
  • Although these valves are over-qualified, they can be used in everyday applications in place of the standard options.

Material List Chart:

  • Valve Body: Stainless Steel 316 (CF8M)
  • Seats and Seals: The Seal Seat is composed of Teflon (PTFE) which makes this Robust Valve corrosion resistant, Heat & Chemical resistant.
  • Compatibility: Suitable to be used with any substance compatible with Stainless Steel and Teflon (PTFE).
  • All wetted parts of the valve that touch the product being transferred are PTFE (Teflon) and 316 Stainless steel (CF8M).

General Dimensions:

  • The valve body is heavier, longer and more robust that the standard 2-piece Ball valve.
  • The size of the thread determines the size of the ball valve needed. (A 3" Thread will need a 3" ball valve and so forth.)
  • These threaded ball valves don't require any tools to install. (The Female NPT Thread of the valve will screw directly onto a Male NPT Thread)

Design Data:

  • Design Standard: ASME B16.34
  • Nominal Diameter: DN8-DN50(1/4”~2”)
  • End Connections: DIN259/2999、ISO228/1&ISO7/1
  • Threads: ASME B1.20.1、BS21
  • Inspection & Testing: According to API 598, EN12266-1
