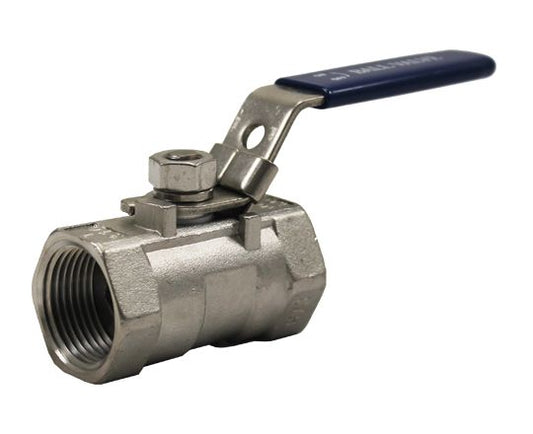

One Piece Ball Valve (316SS)

Features:

  • Suitable Mediums: Water, Oil and Gas type substances. (WOG)
  • Seats & Seals: Teflon (PTFE)
  • Threads: Female NPT (Female National Pipe Thread)
  • Standard Port: Reduced Bore Ball Valve (ID is one size smaller than the pipe size)
  • Handle: Blow-Out Proof
  • Handle Locking Mechanism: handle equipped with locking device (Removable)

Performance Specifications:

  • Pressure Rating: 1000 PSI (6.4MPa) Making them suitable for most applications.
  • Temperature: -13⁰F to 302⁰F (-25°C to 150°C)
  • Shell Test: 9.6MPa
  • Seat Test: 0.6MPa

General Characteristics:

  • These are the best priced ball valves due to the fact that the valve body is made out of one piece.
  • The benefit of this is that there are no joints for leaking to occur making these 1-piece ball valve's durable and reliable.
  • The downside of the one-piece design is that this makes it a standard port ball valve, also called a reduced port.
  • This means the ID of the pipe drops one size, once the valve is installed in line.
  • No tooling is needed for installation.

Material Components:

  • Valve Body: is cast from Stainless Steel 316 (CF8M)
  • Seals & Seats: are composed of Teflon (PTFE)
  • Compatibility: Compatible on all substances that are suitable for use with both Teflon and Stainless Steel 316
  • All wetted Parts are 316 Stainless Steel. The rest of the valve that doesn't touch the transported Material is composed of 304 Stainless Steel.

General Dimensions:

  • The size of the ball valve required depends on the size of the thread. (1-1/2" Threads use 1-1/2" Ball Valves.)
  • The body of valve is manufactured out of one piece, this means that a smaller ball is installed into this valve than can be fitted into the 2-Piece or 3-Piece options. Since The 2 & 3 Piece can be opened up to receive a larger ball.
  • The drawback is that this leads to a reduced port.
  • While the advantage is the chance of leaking is reduced, since the body is one piece with no joints that could become leaking points!

Pressure Chart:

Design Data:

  • Casting: Investment Casting AD2000-WO
  • Dimension standards: DIN3202/4-M3, din2999/259, ISO228-1,ISO7-1, ASME B1.20.1,BS21
  • CE Approval: DN32~DN100
  • Inspection & Testing: En12266-1,API 598
  • Shell test pressure :95 bar for DN6~DN50; 60bar for DN65~DN100
  • Shell Test Pressure: 95 Bar for DN6-DN50; 60 bar for DN65-DN00
  • Seal Pressure Test: 70 bar for DN6-~DN50; 44bar for DN65~DN100
  • Low Pressure Test: 6~8 bar
  • Pressure at max. Temperature：44.5 bar for 1.4308 and pn63,50.2bar for 144.8 and PN63; 28.2 bar for 1.4308 and PN40,31.8 bar for 1.4408 and PN40
  • Pressure at min. Temperature: 59.7 bar for 1.4308 and PN63, 61.2 BAR FOR 1.4408 and PN63; 37.9 bar for1.4308 and PN40,38.8 bar for 1.4408 and PN40
  • Corrosive Allowance: 2mm
  • Design & Manufacture: According to EN12516-1/-2,PED97/23/EC (CE0036)
